Bosch 0986022710 Starter Motor
Your selected vehicle
Regular price
£191.88
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986022710 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.2 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

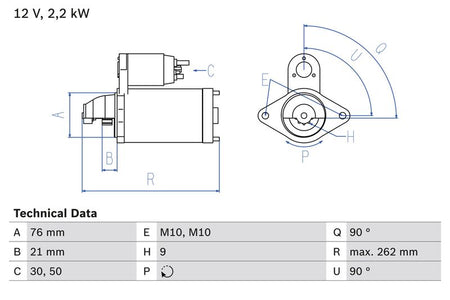

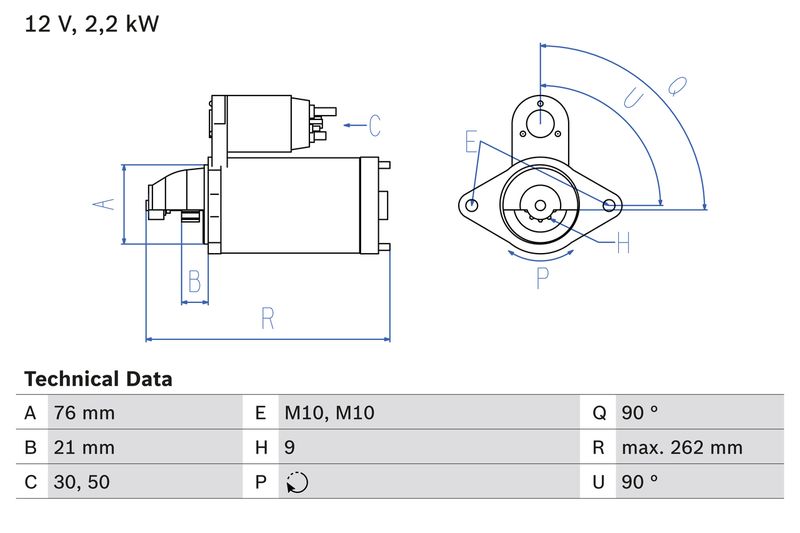

Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
2.2
Number of mounting bores :
0
Number of threaded holes :
2
Number of Teeth :
9
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
76
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
21.3
Starter Type :
Self-supporting
Thread Size :
M10
Thread Size 1 :
M10x1.5
Length [mm] :
262
Position/Degree :
rechts
Mounting Angle [degrees] :
90
Jaw opening angle measurement [Degree] :
90
Mounting bore angle measurement [degree] :
90
Construction Year to :
04.2003
Construction Year to :
03.2003
- Vendor BOSCH
- SKU 0986022710
- BMW : 12 41 2 247 391 12 41 2 247 492 12 41 7 787 925
- ROVER : NAD 0000 90
- LAND ROVER : NAD000090
- APEC : ASM1607
- BORG & BECK : BST2034
- BORG & BECK : BWP1217
- Carwood Group : BREF0320986022710
- Carwood Group : BREF032113446
- FEBI BILSTEIN : 188510
- FIRST LINE : FWP1217
- HELLA : 8EA 011 611-151
- LUCAS : LRS01475
- NAPA : NSM1607
- WAI : 32475N
- WAI : 32475R
- WAI : S131.846
- BOSCH : 2271
