BOSCH

Bosch 0986022720 Starter

SKU: 0986022720
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£140.26 inc. VAT
Pay in 3 interest-free payments with Klarna

Free UK delivery

Free shipping available on all orders across the UK.

  • Royal Mail Tracked 48 = Free
  • Royal Mail Tracked 24 = £2.99
  • FedEx Next Day = £4.99
MITSUBISHI
L200 (K7_T, K6_T, K5_T)
Description Cylinder Capacity Horse Power Year
2.5 D (K64T) 2477 CCM 75 HP 06/1996 - 12/2007
2.5 TD 4WD (K74T) 2477 CCM 99 HP 06/1996 - 12/2007
2.5 TD 4WD (K74T) 2477 CCM 115 HP 09/2001 - 12/2007
2.5 TDiC 2477 CCM 101 HP 08/2001 - 09/2005
L200 / TRITON (KA_T, KB_T)
Description Cylinder Capacity Horse Power Year
2.5 DI-D (KA4T) 2477 CCM 167 HP 08/2007 - 12/2015
2.5 DI-D 4WD (KB4T) 2477 CCM 136 HP 11/2005 - 12/2015
2.5 DI-D 4WD (KB4T) 2477 CCM 167 HP 10/2007 - 12/2015
2.5 DI-D 4WD (KB4T) 2477 CCM 178 HP 04/2010 - 12/2015
2.5 DI-D 16V 4WD 2477 CCM 133 HP 04/2007 - 12/2015
L200 / TRITON Platform/Chassis (KA_T, KB_T)
Description Cylinder Capacity Horse Power Year
2.5 DI-D (KA4T) 2477 CCM 128 HP 08/2007 - 12/2015
L400 Van (PD_W, PC_W, PB_V, PA_W, PA_V)
Description Cylinder Capacity Horse Power Year
2500 TD 4WD (PD5W, PD5V, PA5W, PA5V) 2477 CCM 87 HP 09/1996 - 06/2005
MIRAGE IV Hatchback (CJ_A, CL_A, CA_A, CC_A)
Description Cylinder Capacity Horse Power Year
1.3 (CJ1A) 1298 CCM 78 HP 12/1991 - 08/1995
PAJERO SPORT II (KH_, KG_)
Description Cylinder Capacity Horse Power Year
2.5 DI-D 4WD (KH4W) 2477 CCM 178 HP From 07/2008
PAJERO/SHOGUN Mk II (V3_W, V2_W, V4_W, V5_W)
Description Cylinder Capacity Horse Power Year
2.5 TD 4WD (V24W) 2477 CCM 99 HP 12/1990 - 10/1999
2.5 TDiC (V44W, V24W) 2477 CCM 99 HP 03/1991 - 08/1999

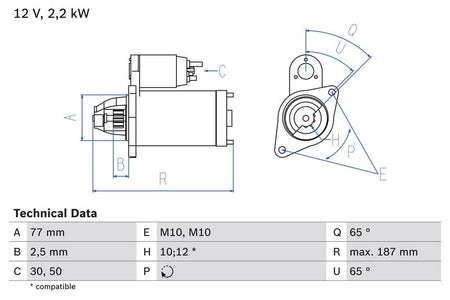

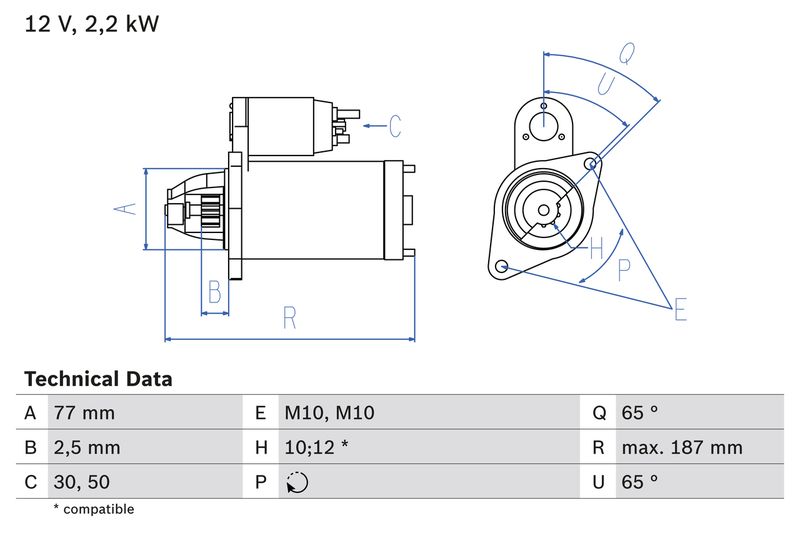

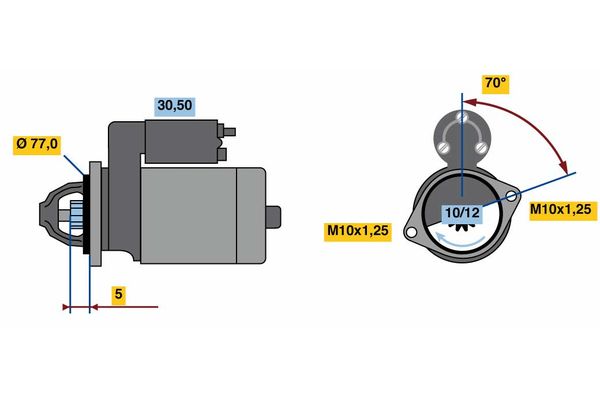

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 2.2
Number of mounting bores : 2
Number of threaded holes : 2
Number of Teeth : 12
Number of Teeth : 10
Clamp : 50
Flange Diameter [mm] : 77
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 2.5
Starter Type : Self-supporting
Thread Size : M10
Thread Size 1 : M10x1.5
Length [mm] : 187
Position/Degree : rechts
Mounting Angle [degrees] : 65
Jaw opening angle measurement [Degree] : 65
Mounting bore angle measurement [degree] : 65
Construction Year to : 03.2015
Engine Code : 4D56-HP
Construction Year from : 12.2005
Construction Year from : 10.2007
  • Vendor BOSCH
  • SKU 0986022720
  • Barcode 4047024600928
  • MITSUBISHI : MD312857 MD312858 MD344182 MD348221 1810A053
  • APEC : ASM1388
  • BLUE PRINT : ADC41228
  • BLUE PRINT : ADC412503
  • BORG & BECK : BST2120
  • Carwood Group : BREF0320986022720
  • Carwood Group : BREF032111912
  • FEBI BILSTEIN : 101612
  • FEBI BILSTEIN : 193917
  • HELLA : 8EA 011 610-641
  • LUCAS : LRS01367
  • NAPA : NSM1388
  • VALEO : 458506
  • WAI : 32367N
  • WAI : S130.331
  • BOSCH : 2272
