Bosch 0986022760 Starter - 1
Bosch 0986022760 Starter - 1
BOSCH

Bosch 0986022760 Starter Motor

5.0/5 65 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986022760

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£230.28 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

LAND ROVER
DEFENDER Station Wagon (L316, L315)
Description Cylinder Capacity Horse Power Year
2.5 Td5 4x4 (L316) 2495 CCM 122 HP 06/1998 - 02/2016
DEFENDER Cabrio (L316)
Description Cylinder Capacity Horse Power Year
2.5 Td5 4x4 (L316) 2495 CCM 122 HP 06/1998 - 02/2016
DEFENDER Pick Up (L316)
Description Cylinder Capacity Horse Power Year
2.5 Td5 4x4 (L316) 2495 CCM 122 HP 06/1998 - 02/2016
DISCOVERY Mk II (L318)
Description Cylinder Capacity Horse Power Year
2.5 Td5 4x4 2495 CCM 139 HP 11/1998 - 06/2004
2.5 Td5 4x4 2495 CCM 136 HP 11/1998 - 06/2004

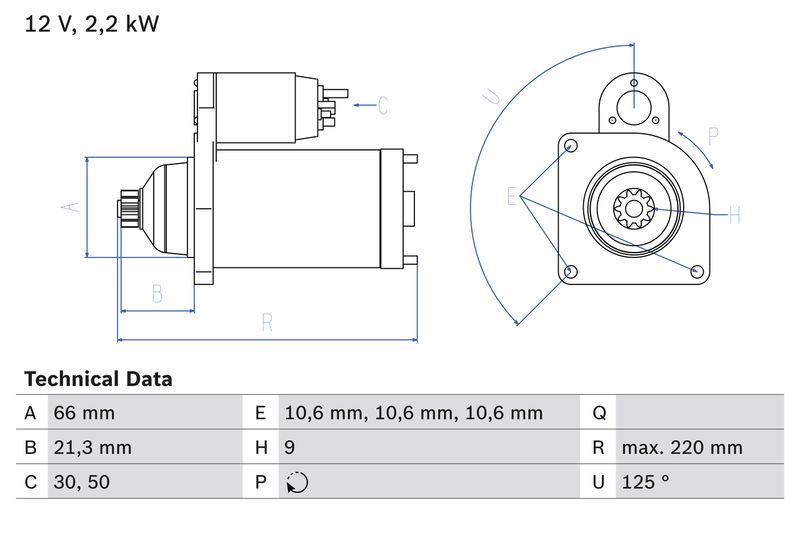

The Bosch 0986022760 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.2 kW rated power, 9 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 2.2
Number of mounting bores : 3
Number of threaded holes : 0
Number of Teeth : 9
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 66
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 21.3
Starter Type : Floating pinion
Bore Diameter [mm] : 10.6
Bore Diameter 2 [mm] : 10.6
Bore Ø 3 [mm] : 10.6
Length [mm] : 220
Position/Degree : links
Mounting Angle [degrees] : 125
Mounting bore angle measurement [degree] : 125
Engine Code : 10 P
Engine Code : 14 P
Construction Year to : 07.2007
  • Vendor BOSCH
  • SKU 0986022760
  • Barcode 4047024607972
  • ROVER : NAD 1012 40
  • APEC : ASM1341
  • APEC : AWP1188
  • BORG & BECK : BST2258
  • BORG & BECK : BWP1507
  • BOSCH : 1 986 S00 957
  • Carwood Group : BREF0320986022760
  • Carwood Group : BREF032113662
  • Carwood Group : BREF0321986S00957
  • DENSO : DSN600
  • FIRST LINE : FWP1507
  • HELLA : 8EA 011 610-141
  • LUCAS : LRT00171
  • NAPA : NSM1341
  • NAPA : NWP1188
  • VALEO : 446502
  • VALEO : 458378
  • WAI : 31212N
  • WAI : S132.864
  • BOSCH : 2276
