Bosch 0986022790 Starter Motor
Your selected vehicle
Regular price
£184.00
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

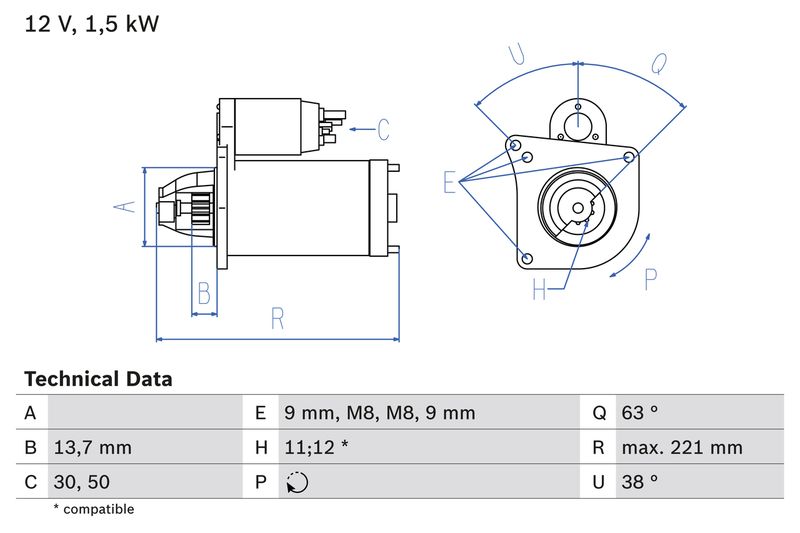

The Bosch 0986022790 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.5 kW rated power, 12 and 11 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.5
Number of mounting bores :
3
Number of threaded holes :
2
Number of Teeth :
12
Number of Teeth :
11
Clamp :
50
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
13.93
Starter Type :
Self-supporting
Thread Size 1 :
M8x1.25
Thread Size 2 :
M8x1.25
Bore Diameter [mm] :
9
Bore Ø 4 [mm] :
9
Length [mm] :
221
Position/Degree :
links
Mounting Angle [degrees] :
38
Jaw opening angle measurement [Degree] :
63
Mounting bore angle measurement [degree] :
38
Engine Code :
BHW (DV6FE)
Construction Year from :
03.2015
Construction Year to :
12.2018
Vehicle Equipment :
for vehicles without start-stop function
Engine Code :
9HP (DV6DTED)
Construction Year from :
10.2010
Construction Year to :
12.2016
- Vendor BOSCH
- SKU 0986022790
- CITROËN : 5802 AA 5802 EG 5802 Z8 5802 Z9 96 451 006 80 98 016 677 80
- PEUGEOT : 5802 AA 5802 EG 5802 Z8 5802 Z9 96 451 006 80 96 628 540 80 96 635 288 80 98 016 677 80
- TOYOTA : 28100YV020
- DS : 5802Z8
- BOSCH : 2279
