Bosch 0986022840 Starter Motor

SKU: 0986022840
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£157.28 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
TOURNEO CONNECT
Description Cylinder Capacity Horse Power Year
1.8 TDCi /TDDi /DI 1753 CCM 75 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 90 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 110 HP 08/2006 - 12/2013
TRANSIT CONNECT (P65_, P70_, P80_)
Description Cylinder Capacity Horse Power Year
1.8 Di 1753 CCM 75 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 90 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 110 HP 08/2006 - 12/2013

The Bosch 0986022840 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.4 kW rated power, 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

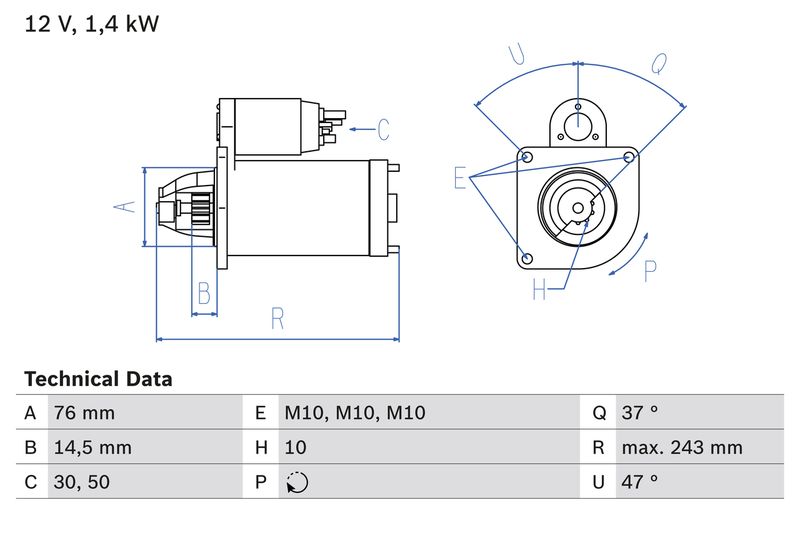

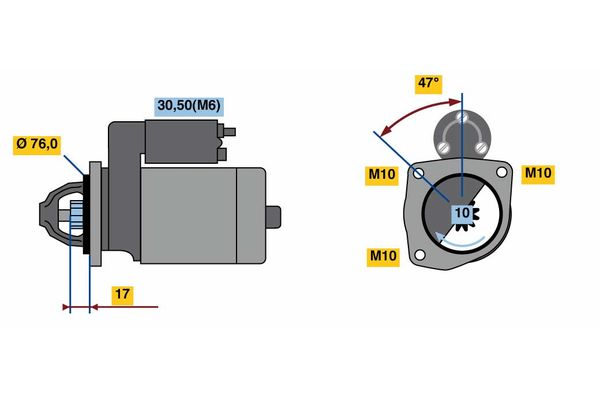

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.4
Number of mounting bores : 0
Number of threaded holes : 3
Number of Teeth : 10
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 76
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 14.5
Starter Type : Self-supporting
Thread Size : M10
Thread Size 1 : M10x1.5
Thread Size 2 : M10x1.5
Length [mm] : 243
Position/Degree : links
Mounting Angle [degrees] : 47
Jaw opening angle measurement [Degree] : 37
Mounting bore angle measurement [degree] : 47
Engine Code : BHPA
Engine Code : BHPB<93EEC>
Construction Year to : 06.2010
Engine Code : HCPA
Engine Code : HCPB
Engine Code : P9PA
Engine Code : P9PB
Engine Code : R3PA
Engine Code : HCPC
Engine Code : RWPA
Engine Code : RWPC
Engine Code : RWPD
  • Vendor BOSCH
  • SKU 0986022840
  • Barcode 4047024613775
  • FORD : 1345314 1477973 1477974 2T1411000BA 2T1411000BB 2T1411000BC 2T1411000CA 2T1411000CB 2T1411000CC 4033064 4424968 4443760
  • APEC : ASM1418
  • BORG & BECK : BST2334
  • BOSCH : 1 986 S00 222
  • Carwood Group : BREF0320986022840
  • Carwood Group : BREF032113910
  • Carwood Group : BREF0321986S00222
  • FEBI BILSTEIN : 101591
  • HELLA : 8EA 011 610-261
  • LUCAS : LRS01627
  • NAPA : NSM1418
  • VALEO : 438486
  • WAI : 32510N
  • WAI : S134.470
  • BOSCH : 2284
