Bosch 0986022910 Starter Motor

SKU: 0986022910
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£109.94 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT
CLIO Mk II (BB_, CB_)
Description Cylinder Capacity Horse Power Year
1.9 dTi (B/CB0U) 1870 CCM 80 HP 12/1999 - 05/2005
KANGOO (KC0/1_)
Description Cylinder Capacity Horse Power Year
1.9 dCi 4x4 (KC0V) 1870 CCM 80 HP From 10/2001
1.9 dCi 4x4 1870 CCM 84 HP From 10/2003
KANGOO Express (FC0/1_)
Description Cylinder Capacity Horse Power Year
1.9 dTi (FC0U) 1870 CCM 80 HP From 02/2000
1.9 dCi 4x4 (FC0V) 1870 CCM 80 HP From 10/2001
1.9 dCi (FC0V) 1870 CCM 84 HP From 07/2003
MEGANE I (BA0/1_)
Description Cylinder Capacity Horse Power Year
1.9 dTi (BA08, BA0N) 1870 CCM 98 HP 03/1997 - 02/2001
1.9 dCi (BA05, BA1F) 1870 CCM 102 HP 02/2001 - 08/2003
MEGANE I Coach (DA0/1_)
Description Cylinder Capacity Horse Power Year
1.9 dCi (DA05, DA1F) 1870 CCM 102 HP 02/2001 - 08/2003
1.9 DCi 1870 CCM 105 HP 03/1999 - 09/2000
MEGANE I Classic (LA0/1_)
Description Cylinder Capacity Horse Power Year
1.9 dCi (LA05, LA1F) 1870 CCM 102 HP 02/2001 - 08/2003
1.9 dTi (LA1U) 1870 CCM 80 HP 02/2001 - 08/2003
MEGANE I Grandtour (KA0/1_)
Description Cylinder Capacity Horse Power Year
1.9 dCi (KA05, KA1F) 1870 CCM 102 HP 02/2001 - 08/2003
1.9 dTi (KA1U) 1870 CCM 80 HP 02/2001 - 08/2003
SCÉNIC I MPV (JA0/1_, FA0_)
Description Cylinder Capacity Horse Power Year
1.9 dCi RX4 1870 CCM 102 HP 11/2000 - 08/2003
1.9 dCi (JA05, JA1F) 1870 CCM 102 HP 09/1999 - 08/2003
1.9 dTi (JA1U) 1870 CCM 80 HP 02/2001 - 08/2003
1.9 dCi RX4 1870 CCM 101 HP 12/2002 - 08/2003

The Bosch 0986022910 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.4 kW rated power, 12 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

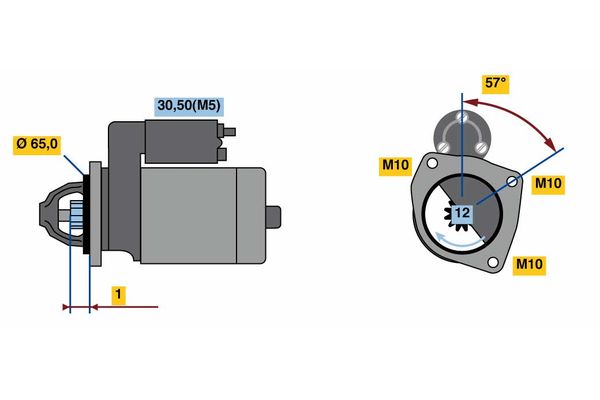

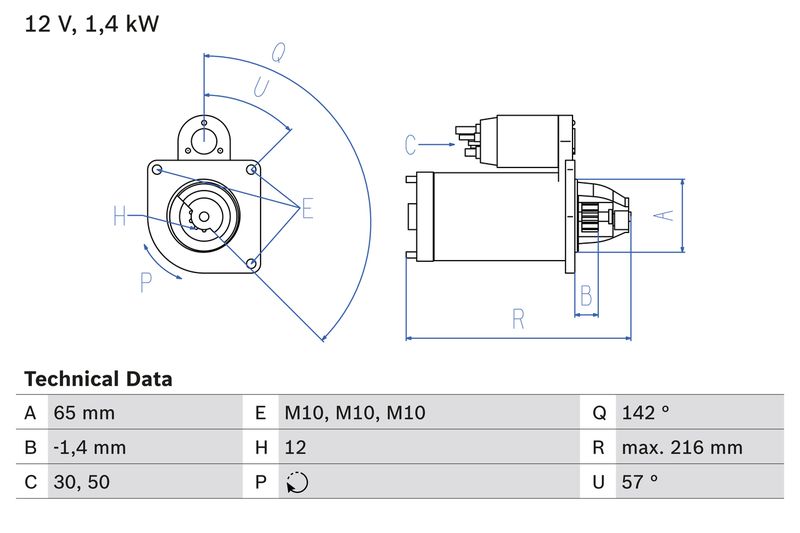

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.4
Number of mounting bores : 0
Number of threaded holes : 3
Number of Teeth : 12
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 65
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : -1.4
Starter Type : Self-supporting
Thread Size : M10
Thread Size 1 : M10x1.5
Thread Size 2 : M10x1.5
Length [mm] : 216
Position/Degree : rechts
Mounting Angle [degrees] : 57
Jaw opening angle measurement [Degree] : 142
Mounting bore angle measurement [degree] : 57
Engine Code : F9Q 782
Construction Year from : 08.2000
Construction Year to : 12.2007
for OE number : 77 00 116 282
for OE number : 82 00 676 296
  • Vendor BOSCH
  • SKU 0986022910
  • Barcode 4047024645790
  • RENAULT : 77 00 116 282 82 00 676 296
  • DACIA : 77 00 116 282
  • APEC : ASM1304
  • BORG & BECK : BST2088
  • BOSCH : 1 986 S00 921
  • Carwood Group : BREF0320986022910
  • Carwood Group : BREF032113930
  • Carwood Group : BREF0321986S00921
  • HELLA : 8EA 011 610-161
  • LUCAS : LRS01640
  • NAPA : NSM1304
  • VALEO : 438359
  • WAI : 32640N
  • WAI : S133.917
  • BOSCH : 2291
