Bosch 0986022930 Starter Motor
Your selected vehicle
Regular price
£202.42
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

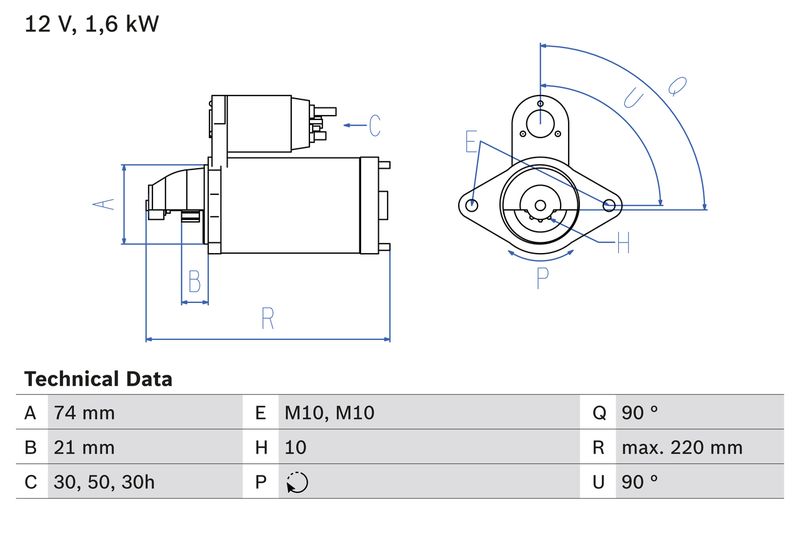

The Bosch 0986022930 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.6 kW rated power, 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.6
Number of mounting bores :
0
Number of threaded holes :
2
Number of Teeth :
10
Clamp :
30
Clamp :
50
Clamp :
30h
Flange Diameter [mm] :
74
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
20.5
Starter Type :
Self-supporting
Thread Size :
M10
Thread Size 1 :
M10x1.5
Length [mm] :
220
Position/Degree :
rechts
Mounting Angle [degrees] :
90
Jaw opening angle measurement [Degree] :
90
Mounting bore angle measurement [degree] :
90
for OE number :
12 41 7 787 354
Construction Year from :
09.2004
Engine Code :
M47 D20 (204D4)
Construction Year to :
03.2007
- Vendor BOSCH
- SKU 0986022930
- APEC : ASM1079
- BORG & BECK : BST2216
- BORG & BECK : BWP1661
- BOSCH : 1 986 S01 024
- Carwood Group : BREF0320986022930
- Carwood Group : BREF032114127
- Carwood Group : BREF032116160
- Carwood Group : BREF0321986S01024
- DENSO : DSN3053
- FEBI BILSTEIN : 192923
- FIRST LINE : FWP1661
- HELLA : 8EA 012 528-241
- LUCAS : LRS01801
- NAPA : NSM1079
- VALEO : 438151
- WAI : 32801N
- WAI : S131.828
- BOSCH : 2293
