Bosch 0986022980 Starter Motor
Your selected vehicle
Regular price
£372.88
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

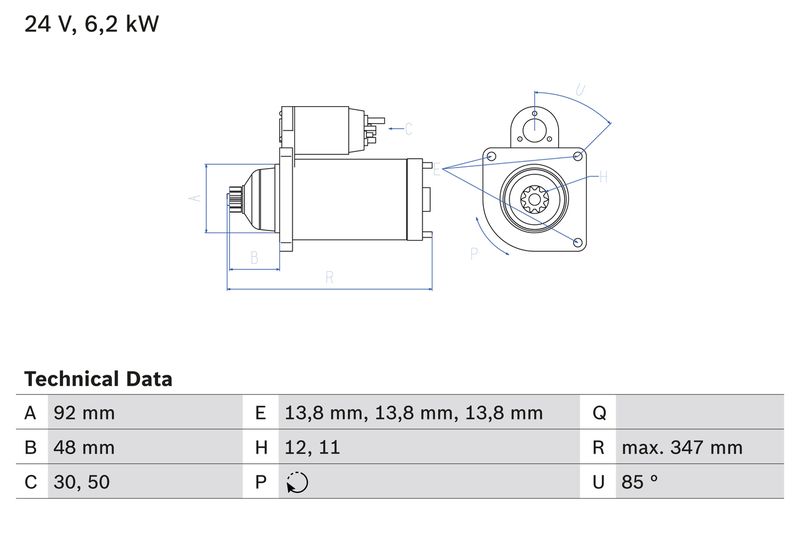

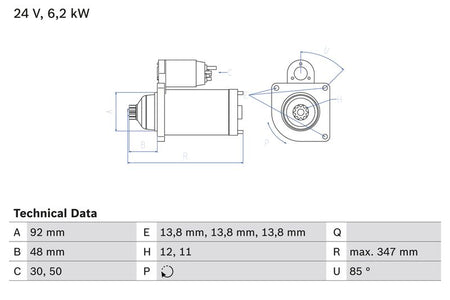

The Bosch 0986022980 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 24 V electrical rating, 6.2 kW rated power, 11 and 12 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
24
Rated Power [kW] :
6.2
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
11
Number of Teeth :
12
Clamp :
30,50
Flange Diameter [mm] :
92
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
48
Starter Type :
Floating pinion
Bore Diameter [mm] :
13.8
Bore Diameter 2 [mm] :
13.8
Bore Ø 3 [mm] :
13.8
Length [mm] :
347
Position/Degree :
rechts
Mounting Angle [degrees] :
85
Mounting bore angle measurement [degree] :
85
- Vendor BOSCH
- SKU 0986022980
- BORG & BECK : BST32772
- BOSCH : 0 001 330 050
- BOSCH : 1 986 S10 097
- BOSCH : 1 986 S10 282
- Carwood Group : BREF0320986022980
- Carwood Group : BREF032113851
- Carwood Group : BREF0321986S10097
- FEBI BILSTEIN : 48977
- FEBI BILSTEIN : 48992
- HELLA : 8EA 012 586-231
- HELLA : 8EA 738 038-001
- LUCAS : LRS02416
- MAHLE : MS 754
- VALEO : 203044
- VALEO : 438280
- WAI : 30111N-DR
- WAI : 31077N
- WAI : 6857N
- BOSCH : 2298
