Bosch 0986022990 Starter Motor
Your selected vehicle
Regular price
£328.18
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

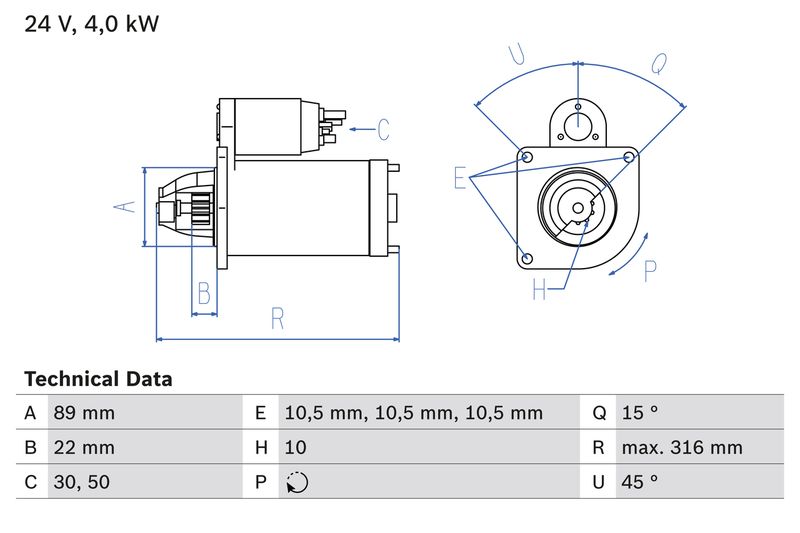

The Bosch 0986022990 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 24 V electrical rating, 4 kW rated power, 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
24
Rated Power [kW] :
4
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
10
Clamp :
30
Flange Diameter [mm] :
89
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
22
Starter Type :
Self-supporting
Bore Diameter [mm] :
10.5
Bore Diameter 2 [mm] :
10.5
Bore Ø 3 [mm] :
10.5
Length [mm] :
316
Position/Degree :
links
Mounting Angle [degrees] :
45
Jaw opening angle measurement [Degree] :
15
Mounting bore angle measurement [degree] :
45
- Vendor BOSCH
- SKU 0986022990
- RENAULT : 50 01 859 572 50 10 306 413 50 10 508 443 74 85 003 362
- BORG & BECK : BST32085
- BOSCH : 1 986 S10 096
- Carwood Group : BREF0320986022990
- Carwood Group : BREF032113466
- Carwood Group : BREF0321986S10096
- FEBI BILSTEIN : 48967
- LUCAS : LRS01954
- MAHLE : MS 443
- VALEO : 438277
- VALEO : 458183
- WAI : 30127N
- BOSCH : 2299
