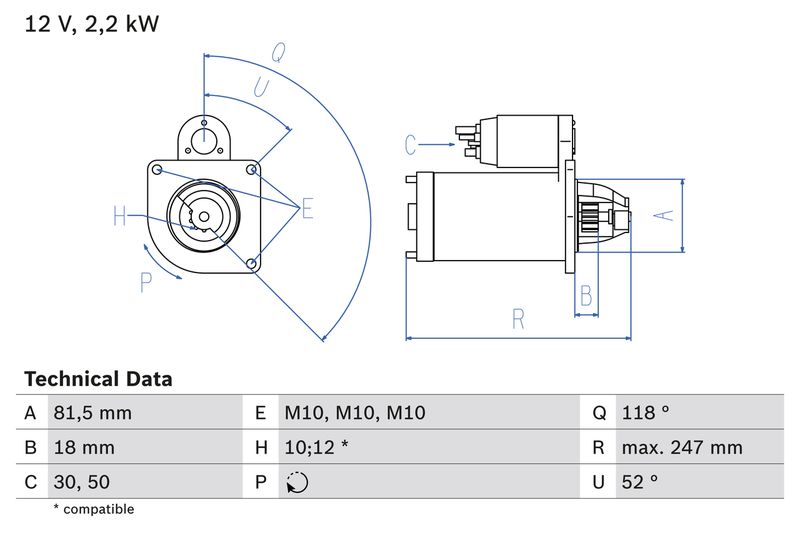

Bosch 0986023180 Starter - 1

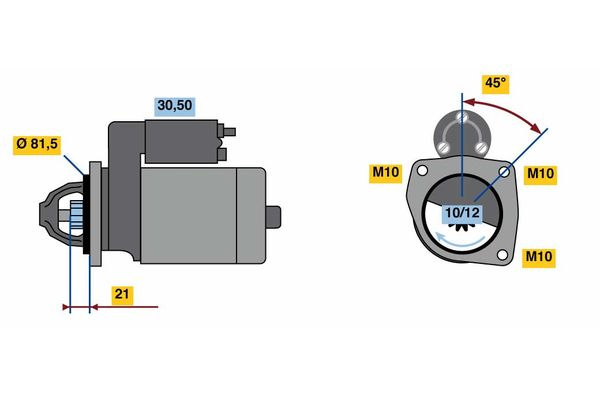

Bosch 0986023180 Starter - 2

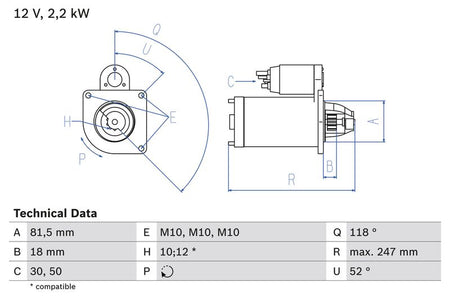

Bosch 0986023180 Starter - 1
Bosch 0986023180 Starter - 2
BOSCH

Bosch 0986023180 Starter Motor

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986023180

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£195.14 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

FORD
RANGER (ER, EQ, R_)
Description Cylinder Capacity Horse Power Year
2.5 TD 4x4 2500 CCM 109 HP 10/1999 - 06/2006
2.5 D 2499 CCM 78 HP 10/1999 - 04/2002
2.5 D 4x4 2499 CCM 78 HP 10/1999 - 04/2002
2.5 TD 2500 CCM 84 HP 04/2002 - 06/2006
2.5 TD 4x4 2500 CCM 84 HP 04/2002 - 06/2006
RANGER (ET)
Description Cylinder Capacity Horse Power Year
2.5 TDCi 4x4 2499 CCM 143 HP 05/2006 - 07/2012
3.0 TDCi 4x4 2953 CCM 156 HP 05/2006 - 07/2012
2.5 TDdi 2499 CCM 143 HP 05/2006 - 07/2012
MAZDA
B-SERIE (UF)
Description Cylinder Capacity Horse Power Year
2.5 D 4WD (UFY0) 2499 CCM 77 HP 09/1998 - 06/1999
2.5 TD (UFY0) 2499 CCM 87 HP 04/1996 - 02/1999
2.5 D 4WD (UFY0) 2499 CCM 86 HP 02/1996 - 06/1999
2.5 D 2499 CCM 86 HP 04/1996 - 01/1999
B-SERIE Platform/Chassis (UF)
Description Cylinder Capacity Horse Power Year
2.5 TD 2499 CCM 87 HP 05/1996 - 02/1999
B-SERIE (UN)
Description Cylinder Capacity Horse Power Year
2.5 D 4WD 2499 CCM 78 HP 06/1999 - 11/2006
2.5 TD 4WD 2499 CCM 109 HP 06/1999 - 07/2006
2.5 D 2499 CCM 78 HP 06/1999 - 11/2006
2.5 D 2499 CCM 84 HP 12/2002 - 11/2006
2.5 D 4WD 2499 CCM 84 HP 12/2002 - 11/2006
2.5 D 2499 CCM 83 HP 11/1999 - 12/2001
2.5 D 4WD 2499 CCM 83 HP 11/1999 - 12/2001
BT-50 Platform/Chassis (CD, UN)
Description Cylinder Capacity Horse Power Year
2.5 CDVi (UNY0W3) 2500 CCM 143 HP From 12/2006
3.0 CDVi 4x4 (UNY0E3) 2953 CCM 156 HP From 12/2006
BT-50 Pickup (CD, UN)
Description Cylinder Capacity Horse Power Year
2.5 MRZ-CD 4x4 (UNY0W3) 2499 CCM 143 HP 12/2006 - 12/2015
3.0 CDVi (UNY0E3) 2953 CCM 156 HP 12/2006 - 12/2015
3.0 CDVi 4x4 (UNY0E3) 2953 CCM 156 HP 10/2006 - 12/2015
2.5 MRZ-CD (UNY0W3) 2499 CCM 143 HP 08/2006 - 06/2013

The Bosch 0986023180 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.2 kW rated power, 12 and 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 2.2
Number of mounting bores : 3
Number of threaded holes : 3
Number of Teeth : 12
Number of Teeth : 10
Clamp : 50
Flange Diameter [mm] : 81.5
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 18
Starter Type : Self-supporting
Thread Size : M10
Thread Size 1 : M10x1.5
Thread Size 2 : M10x1.5
Length [mm] : 247
Position/Degree : rechts
Mounting Angle [degrees] : 52
Jaw opening angle measurement [Degree] : 118
Mounting bore angle measurement [degree] : 52
  • Vendor BOSCH
  • SKU 0986023180
  • Barcode 4047024698765
  • FORD : F8RU11000AA WL9118400 XM3411002AA XM3411002CA 3601369 4348654
  • MAZDA : WL02-18-400 WL02-18-400A WL81-18-400 WL91-18-400
  • APEC : ASM1240
  • BLUE PRINT : ADM51234
  • BORG & BECK : BST2024
  • BORG & BECK : BST2641
  • BOSCH : 1 986 S00 922
  • Carwood Group : BREF0320986023180
  • Carwood Group : BREF032113702
  • Carwood Group : BREF0321986S00922
  • FEBI BILSTEIN : 186646
  • HELLA : 8EA 012 526-041
  • LUCAS : LRS02160
  • NAPA : NSM1240
  • WAI : 32352N
  • WAI : S130.070
  • BOSCH : 2318
