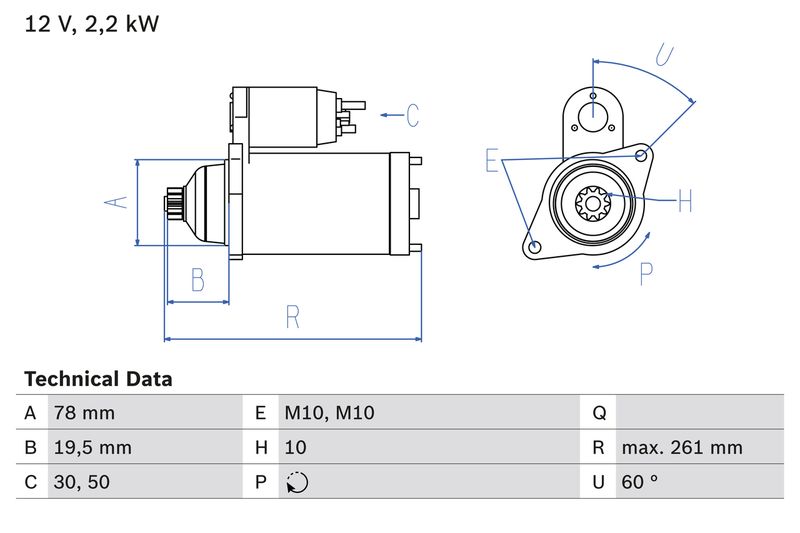

Bosch 0986023220 Starter - 1

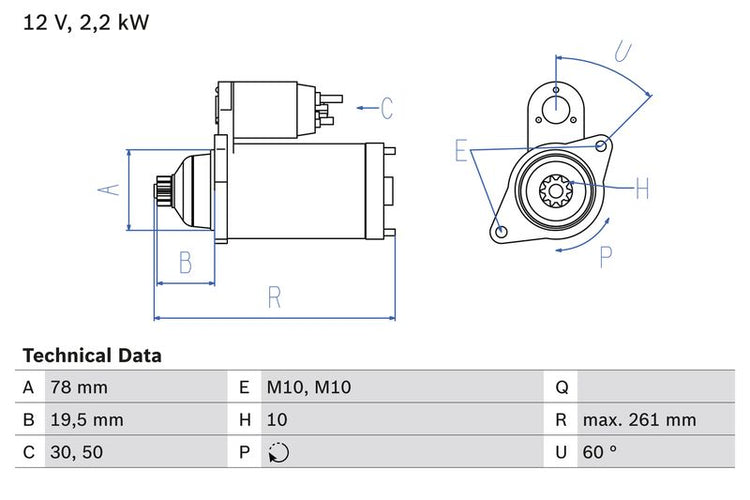

Bosch 0986023220 Starter - 1
BOSCH

Bosch 0986023220 Starter Motor

SKU: 0986023220
Your selected vehicle
Out of stock
Out of Stock
£203.44 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HYUNDAI
H-1 / STAREX Bus (A1)
Description Cylinder Capacity Horse Power Year
2.5 CRDi 2497 CCM 140 HP 12/2002 - 09/2007
H-1 Van (A1)
Description Cylinder Capacity Horse Power Year
2.5 CRDi 2497 CCM 140 HP 08/2003 - 12/2007
i800 Travel (TQ)
Description Cylinder Capacity Horse Power Year
2.5 CRDI 2497 CCM 136 HP From 07/2008
2.5 CRDi 2497 CCM 170 HP From 05/2008
2.5 CRDi 2497 CCM 116 HP From 08/2011
2.5 CRDi 2497 CCM 110 HP From 07/2010
iLOAD Cargo (TQ)
Description Cylinder Capacity Horse Power Year
2.5 CRDi 2497 CCM 170 HP From 02/2008
2.5 CRDi 2497 CCM 110 HP From 02/2008
2.5 CRDi 2497 CCM 163 HP From 02/2008
2.5 CRDi 2497 CCM 116 HP From 01/2009
2.5 CRDi 2497 CCM 136 HP From 08/2009
KIA
SORENTO I (JC)
Description Cylinder Capacity Horse Power Year
2.5 CRDi 2497 CCM 163 HP 05/2006 - 12/2011
2.5 CRDi 4WD 2497 CCM 140 HP 08/2002 - 03/2011
2.5 CRDi 2497 CCM 170 HP 12/2006 - 12/2011
2.5 CRDi 2497 CCM 178 HP 09/2006 - 12/2011
SORENTO I VAN (JC)
Description Cylinder Capacity Horse Power Year
2.5 CRDi 4WD 2497 CCM 140 HP 08/2005 - 10/2006

The Bosch 0986023220 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.2 kW rated power, 10 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 2.2
Number of mounting bores : 2
Number of threaded holes : 2
Number of Teeth : 10
Clamp : 30
Flange Diameter [mm] : 78
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 18.16
Starter Type : Floating pinion
Thread Size : M10
Thread Size 1 : M10x1.5
Length [mm] : 261
Position/Degree : rechts
Mounting Angle [degrees] : 60
Mounting bore angle measurement [degree] : 60
  • Vendor BOSCH
  • SKU 0986023220
  • Barcode 4047024698802
  • HYUNDAI : 36100 4A000 36100 4A010
  • KIA : 36100 4A000 36100 4A010
  • APEC : ASM1621
  • BLUE PRINT : ADG012509
  • BORG & BECK : BST2601
  • BOSCH : 1 986 S01 101
  • Carwood Group : BREF0320986023220
  • Carwood Group : BREF032113937
  • Carwood Group : BREF0321986S01101
  • FEBI BILSTEIN : 101622
  • HELLA : 8EA 011 610-811
  • LUCAS : LRS02303
  • NAPA : NSM1621
  • WAI : 32712N
  • WAI : 33305N
  • WAI : S131.845
  • BOSCH : 2322
