Bosch 0986023430 Starter Motor
Your selected vehicle
Regular price
£266.27
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986023430 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 24 V electrical rating, 5 kW rated power, 10 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

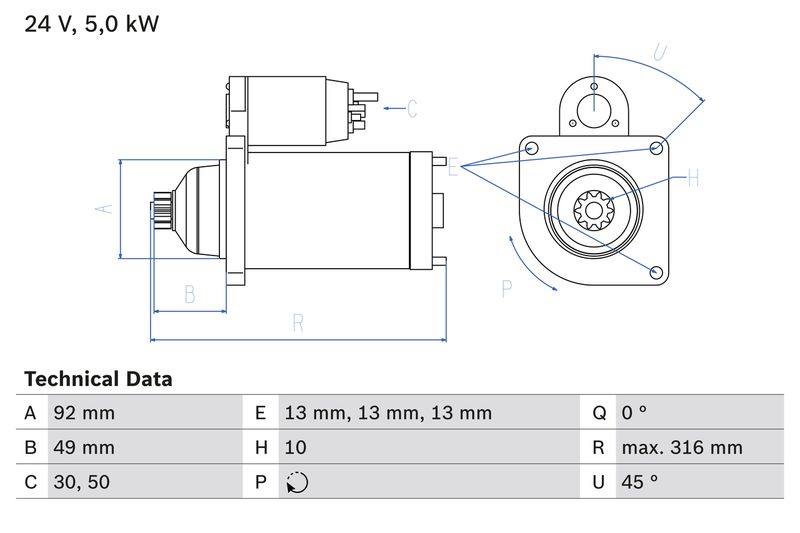

Function :
Starter
Voltage [V] :
24
Rated Power [kW] :
5
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
10
Clamp :
30
Flange Diameter [mm] :
92
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
49
Starter Type :
Floating pinion
Bore Diameter [mm] :
13
Bore Diameter 2 [mm] :
13
Bore Ø 3 [mm] :
13
Length [mm] :
316
Position/Degree :
rechts
Mounting Angle [degrees] :
45
Mounting bore angle measurement [degree] :
45
- Vendor BOSCH
- SKU 0986023430
- IVECO : 2995988 5801710983 99486046
- ASTRA : 5801710983
- BORG & BECK : BST32063
- BOSCH : 1 986 S10 107
- Carwood Group : BREF0320986023430
- Carwood Group : BREF032112823
- Carwood Group : BREF032115872
- Carwood Group : BREF0321986S10107
- DENSO : DSN940
- FEBI BILSTEIN : 49005
- HELLA : 8EA 012 586-251
- LUCAS : LRS01958
- MAHLE : MS 198
- VALEO : 203040
- VALEO : 438477
- VALEO : 458334
- WAI : 32958N
- BOSCH : 2343
