Bosch 0986023470 Starter - 1
Bosch 0986023470 Starter - 1
BOSCH

Bosch 0986023470 Starter Motor

SKU: 0986023470
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£141.60 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUBARU
FORESTER (SF_)
Description Cylinder Capacity Horse Power Year
2.0 AWD (SF5) 1994 CCM 122 HP 08/1997 - 09/2002
2.0 S Turbo AWD (SF5) 1994 CCM 170 HP 06/1998 - 04/2001
2.0 AWD (SF5) 1994 CCM 125 HP 06/1998 - 09/2002
2.0 S Turbo AWD (SF5) 1994 CCM 177 HP 04/2001 - 09/2002
FORESTER (SG_)
Description Cylinder Capacity Horse Power Year
2.0 AWD (SG5) 1994 CCM 125 HP 06/2002 - 05/2005
2.0 S Turbo AWD (SG5) 1994 CCM 177 HP 02/2002 - 05/2005
2.5 AWD (SG9) 2457 CCM 211 HP 12/2003 - 05/2005
2.0 X AWD (SG5) 1994 CCM 158 HP 06/2005 - 05/2008
2.5 AWD (SG9, S11SG, S12SH) 2457 CCM 230 HP 06/2005 - 05/2008
2.5 RX Nato AWD (SG9) 2457 CCM 156 HP 11/2002 - 12/2008
2.5 AWD 2457 CCM 232 HP 01/2004 - 12/2009
2.5 AWD 2457 CCM 175 HP 01/2005 - 10/2012
FORESTER (SH_)
Description Cylinder Capacity Horse Power Year
2.0 AWD (SHJ) 1995 CCM 150 HP From 01/2010
2.5 AWD (SH9) 2457 CCM 171 HP 01/2009 - 09/2013
2.0 AWD (SH5) 1994 CCM 150 HP 01/2008 - 09/2013
2.5 AWD (SH9) 2457 CCM 230 HP 06/2008 - 09/2013
2.0 BiFuel AWD 1994 CCM 150 HP 01/2009 - 12/2011
IMPREZA Saloon (GC)
Description Cylinder Capacity Horse Power Year
1.6 i AWD (GC4) 1597 CCM 90 HP 08/1992 - 12/2000
1.8 i AWD (GC6) 1820 CCM 103 HP 08/1992 - 12/2000
2.0 Turbo GT AWD (GC8) 1994 CCM 211 HP 03/1994 - 12/2000
2.0 i AWD (GC8) 1994 CCM 115 HP 10/1995 - 12/2000
1.6 i (GC3) 1597 CCM 90 HP 08/1992 - 12/2000
1.6 i (GC3) 1597 CCM 95 HP 06/1998 - 12/2000
2.0 i AWD (GC8) 1994 CCM 125 HP 06/1998 - 12/2000
2.0 Turbo GT AWD (GC8) 1994 CCM 218 HP 06/1998 - 12/2000
1.6 i AWD (GC4) 1597 CCM 95 HP 06/1998 - 12/2000
1.8 i (GC5) 1820 CCM 103 HP 11/1995 - 06/1996
2.0 i (GC7) 1994 CCM 125 HP 09/1998 - 09/2000
2.0 i (GC7) 1994 CCM 116 HP 07/1996 - 08/1998
IMPREZA Estate (GF)
Description Cylinder Capacity Horse Power Year
1.6 i AWD (GF4) 1597 CCM 90 HP 08/1992 - 12/2000
1.8 i AWD (GF6) 1820 CCM 103 HP 08/1992 - 12/2000
2.0 i Turbo AWD (GF8) 1994 CCM 211 HP 03/1994 - 12/2000
1.6 i (GF3) 1597 CCM 95 HP 06/1998 - 12/2000
2.0 i 16V AWD (GF8) 1994 CCM 125 HP 06/1998 - 12/2000
2.0 Turbo GT AWD (GF8) 1994 CCM 218 HP 06/1998 - 12/2000
1.6 i AWD (GF4) 1597 CCM 95 HP 06/1998 - 12/2000
2.0 i AWD (GF8) 1994 CCM 116 HP 12/1995 - 12/2000
1.6 (GF3) 1597 CCM 90 HP 01/1993 - 08/1998
2.0 (GF8) 1994 CCM 116 HP 09/1996 - 08/1998
1.8 i (GF5) 1820 CCM 103 HP 11/1995 - 06/1996
IMPREZA Saloon (GD)
Description Cylinder Capacity Horse Power Year
1.6 AWD (GD5) 1597 CCM 95 HP 12/2000 - 06/2009
2.0 i AWD (GD9) 1994 CCM 125 HP 12/2000 - 06/2009
2.0 WRX Turbo AWD (GDA) 1994 CCM 218 HP 12/2000 - 12/2005
2.0 WRX STi AWD (GDB) 1994 CCM 265 HP 11/2001 - 07/2005
2.0 WRX Turbo AWD (GDA) 1994 CCM 225 HP 12/2002 - 03/2007
2.0 i R AWD (GD9) 1994 CCM 160 HP 09/2005 - 03/2007
2.5 i WRX AWD (GDG) 2457 CCM 230 HP 09/2005 - 12/2008
2.5 WRX STi AWD (GDF) 2457 CCM 280 HP 09/2005 - 12/2007
1.5 (GD2) 1498 CCM 101 HP 06/2001 - 09/2005
IMPREZA Estate (GG)
Description Cylinder Capacity Horse Power Year
1.6 AWD 1597 CCM 95 HP 12/2000 - 09/2006
2.0 AWD (GG9) 1994 CCM 125 HP 12/2000 - 12/2007
2.0 Turbo AWD (GGA) 1994 CCM 218 HP 12/2000 - 12/2005
2.0 WRX Turbo AWD (GGA) 1994 CCM 225 HP 12/2002 - 09/2006
2.0 i R AWD (GG9) 1994 CCM 160 HP 12/2000 - 06/2007
2.5 WRX AWD (GGG) 2457 CCM 230 HP 09/2005 - 12/2008
1.5 AWD (GG3) 1498 CCM 105 HP 05/2006 - 03/2007
2.5 GB270 AWD 2457 CCM 269 HP 07/2007 - 12/2007
1.6 1597 CCM 95 HP 10/2000 - 09/2006
IMPREZA Saloon (GE, GV)
Description Cylinder Capacity Horse Power Year
1.5 (GE2) 1498 CCM 107 HP From 02/2008
1.5 AWD (GE3) 1498 CCM 107 HP From 02/2008
2.5 AWD 2457 CCM 230 HP From 10/2008
2.5 WRX SE AWD (GVE, GEE) 2457 CCM 265 HP 01/2009 - 12/2014
2.5 AWD 2457 CCM 270 HP From 07/2007
IMPREZA Hatchback (GR, GH, G3)
Description Cylinder Capacity Horse Power Year
1.5 F (GH2) 1498 CCM 107 HP 09/2007 - 03/2012
2.0 R AWD (GH7) 1994 CCM 150 HP 01/2008 - 03/2012
2.5 AWD (GHE) 2457 CCM 230 HP 01/2008 - 09/2011
1.5 AWD (GH3) 1498 CCM 107 HP 02/2008 - 03/2012
1.5 AWD 1498 CCM 116 HP 09/2008 - 12/2011
2.5 WRX S AWD 2457 CCM 255 HP 02/2009 - 12/2010
LEGACY   (BC)
Description Cylinder Capacity Horse Power Year
2000 4WD (BC5) 1994 CCM 116 HP 08/1991 - 07/1994
2.0 (BC4) 1994 CCM 116 HP 08/1991 - 12/1993
LEGACY   Estate (BC, BF, BJ)
Description Cylinder Capacity Horse Power Year
2000 4WD (BF5) 1994 CCM 116 HP 09/1991 - 07/1994
2000 (BF5) 1994 CCM 116 HP 09/1991 - 12/1993
LEGACY Mk II (BD)
Description Cylinder Capacity Horse Power Year
2.0 i (BD4) 1994 CCM 116 HP 09/1994 - 03/1999
2.0 i 4WD (BD5) 1994 CCM 116 HP 09/1994 - 03/1999
2.2 i 4WD (BD7) 2212 CCM 128 HP 09/1994 - 03/1999
LEGACY Mk II Estate (BG)
Description Cylinder Capacity Horse Power Year
2.0 i (BG4) 1994 CCM 116 HP 09/1994 - 11/1998
2.0 i 4WD (BG5) 1994 CCM 116 HP 09/1994 - 11/1998
2.2 i 4WD (BG7) 2212 CCM 128 HP 02/1994 - 12/1998
LEGACY III (BE)
Description Cylinder Capacity Horse Power Year
2.0 AWD (BE5) 1994 CCM 125 HP 04/1999 - 08/2003
2.5 AWD (BE9) 2457 CCM 156 HP 10/1998 - 08/2003
LEGACY Mk III Estate (BH)
Description Cylinder Capacity Horse Power Year
2.5 AWD (BH9) 2457 CCM 156 HP 12/1998 - 08/2003
2.0 AWD (BH5) 1994 CCM 125 HP 12/1998 - 08/2003
LEGACY IV (BL)
Description Cylinder Capacity Horse Power Year
2.0 AWD (BL5) 1994 CCM 138 HP 09/2003 - 10/2005
2.5 AWD (BL9) 2457 CCM 165 HP 09/2003 - 04/2009
2.5 i AWD (BL9) 2457 CCM 173 HP 09/2007 - 12/2009
2.0 2WD 1994 CCM 179 HP 08/2005 - 03/2012
LEGACY IV Estate (BP)
Description Cylinder Capacity Horse Power Year
2.0 AWD (BP5) 1994 CCM 138 HP 09/2003 - 10/2005
2.5 AWD (BP9) 2457 CCM 165 HP 09/2003 - 04/2009
2.5 i AWD (BP9) 2457 CCM 173 HP 01/2008 - 12/2009
OUTBACK (BH)
Description Cylinder Capacity Horse Power Year
2.5 AWD (BH9) 2457 CCM 156 HP 10/2000 - 08/2003
OUTBACK (BP)
Description Cylinder Capacity Horse Power Year
2.5 AWD (BP9) 2457 CCM 173 HP 09/2008 - 09/2009
2.5 BiFuel AWD 2457 CCM 173 HP 09/2008 - 06/2009

The Bosch 0986023470 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1 kW rated power, Self-supporting starter type, and manual Transmission transmission. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

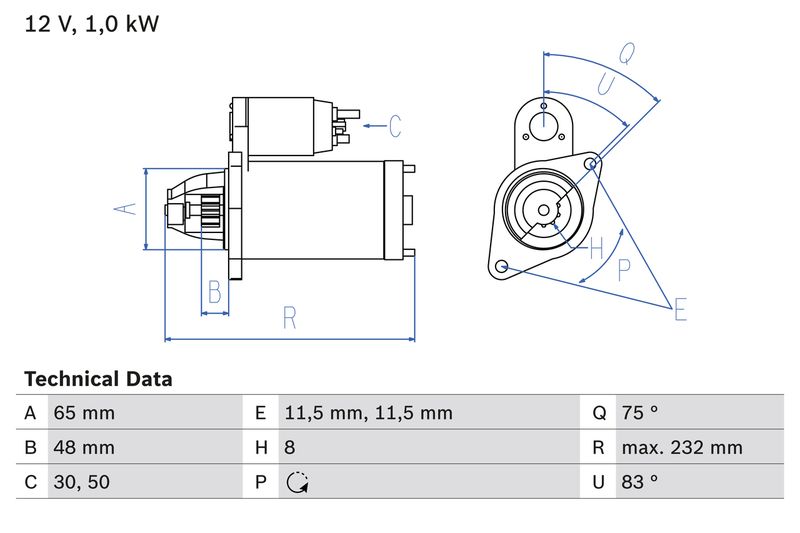

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1
Number of mounting bores : 2
Number of threaded holes : 0
Number of Teeth : 8
Clamp : 30
Flange Diameter [mm] : 65
Rotation Direction : Anticlockwise rotation
Pinion Rest Position [mm] : 48
Starter Type : Self-supporting
Bore Diameter [mm] : 11.5
Bore Diameter 2 [mm] : 11.5
Length [mm] : 232
Position/Degree : rechts
Mounting Angle [degrees] : 83
Jaw opening angle measurement [Degree] : 75
Mounting bore angle measurement [degree] : 83
Engine Code : EJ20J
Construction Year to : 07.1998
Transmission Type : Manual Transmission
Construction Year to : 05.2002
  • Vendor BOSCH
  • SKU 0986023470
  • Barcode 4047024813250
  • SUBARU : 23300 AA270 23300 AA280 23300 AA380 23300 AA381 23300 AA420 23300 AA450 23300 AA560
  • APEC : ASM2016
  • BLUE PRINT : ADS712501
  • BORG & BECK : BST2151
  • Carwood Group : BREF0320986023470
  • Carwood Group : BREF032111552
  • FEBI BILSTEIN : 193923
  • HELLA : 8EA 012 527-571
  • LUCAS : LRS02381
  • NAPA : NSM1468
  • NAPA : NSM2016
  • VALEO : 458321
  • WAI : 17717N
  • WAI : 17850N
  • WAI : 17881N
  • WAI : 17881R
  • WAI : S130.685
  • BOSCH : 2347
