Bosch 0986023520 Starter Motor

SKU: 0986023520
Your selected vehicle
Out of stock
Out of Stock
£111.43 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI
COLT VI (Z3_A, Z2_A)
Description Cylinder Capacity Horse Power Year
1.3 (Z21A) 1332 CCM 95 HP 06/2004 - 06/2012
1.1 (Z31A, Z32A) 1124 CCM 75 HP 10/2004 - 06/2012
1.5 CZT (Z37A) 1468 CCM 150 HP 03/2005 - 06/2012
1.3 LPG (Z33A) 1332 CCM 95 HP 06/2004 - 06/2012
1.3 Flexfuel (Z35A) 1332 CCM 95 HP 10/2008 - 06/2012
COLT CZC VI Convertible (RG)
Description Cylinder Capacity Horse Power Year
1.5 (Z36A) 1499 CCM 109 HP 05/2006 - 07/2009
1.5 Turbo (Z37A) 1468 CCM 150 HP 05/2006 - 07/2009
LANCER VIII (CY_A, CZ_A)
Description Cylinder Capacity Horse Power Year
1.5 1499 CCM 109 HP From 06/2008
LANCER VIII Sportback (CX_A)
Description Cylinder Capacity Horse Power Year
1.5 1499 CCM 109 HP From 06/2008
1.5 Bifuel 1499 CCM 109 HP From 03/2010
SMART
FORFOUR (454)
Description Cylinder Capacity Horse Power Year
1.1 (454.030) 1124 CCM 75 HP 01/2004 - 06/2006
1.3 (454.031) 1332 CCM 95 HP 01/2004 - 06/2006
1.5 (454.032) 1499 CCM 109 HP 01/2004 - 06/2006
1.5 BRABUS (454.034) 1468 CCM 177 HP 05/2005 - 06/2006
1.1 (454.033) 1124 CCM 64 HP 02/2005 - 06/2006
1.5 (454.032) 1499 CCM 122 HP 01/2004 - 06/2006

The Bosch 0986023520 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 0.9 kW rated power, 8 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

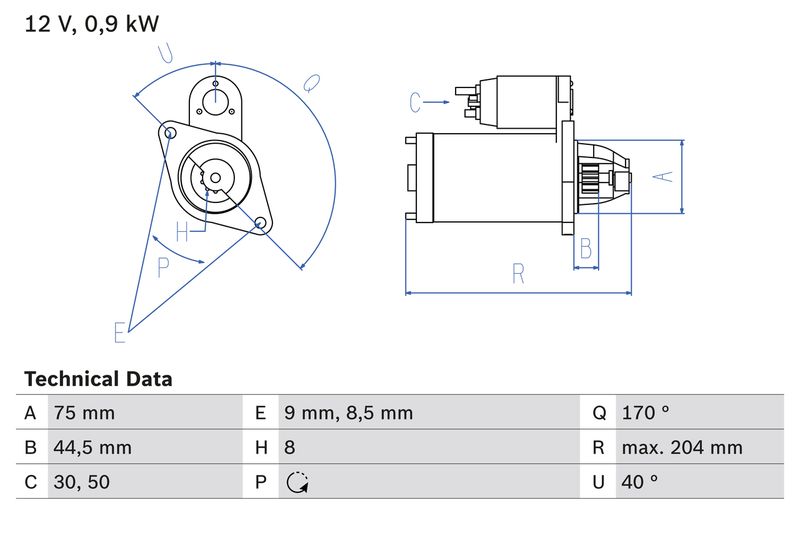

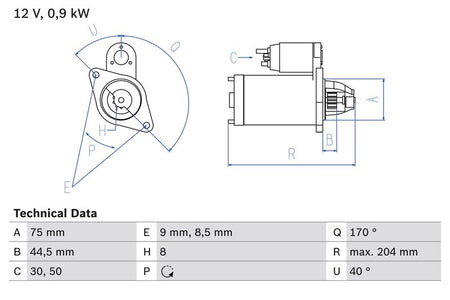

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 0.9
Number of mounting bores : 2
Number of threaded holes : 0
Number of Teeth : 8
Clamp : 50
Clamp : 30

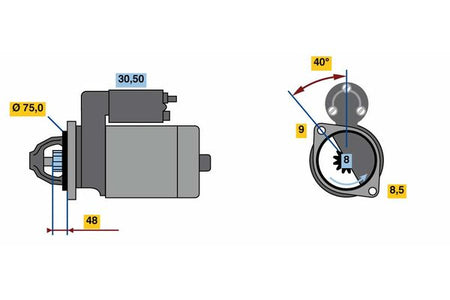

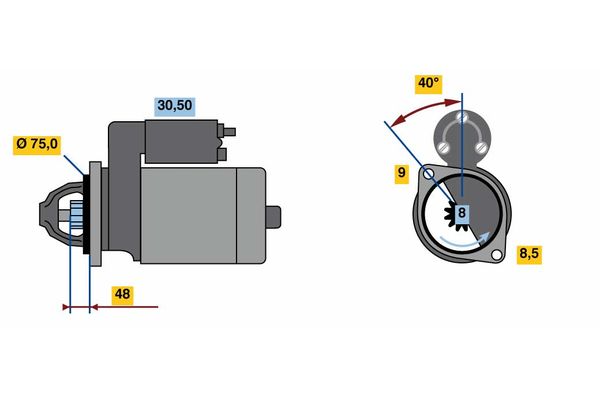

Flange Diameter [mm] : 75
Rotation Direction : Anticlockwise rotation
Pinion Rest Position [mm] : 44.5
Starter Type : Self-supporting
Bore Diameter [mm] : 9
Bore Diameter 2 [mm] : 8.5
Length [mm] : 204
Position/Degree : links
Mounting Angle [degrees] : 40
Jaw opening angle measurement [Degree] : 170
Mounting bore angle measurement [degree] : 40
Vehicle Equipment : for vehicles without start-stop function
  • Vendor BOSCH
  • SKU 0986023520
  • Barcode 4047024813304
  • MERCEDES-BENZ : A 135 151 01 01 135 151 01 01
  • MITSUBISHI : MR994922
  • SMART : 1351510101
  • APEC : ASM1081
  • BORG & BECK : BST2553
  • BOSCH : 1 986 S01 028
  • Carwood Group : BREF0320986023520
  • Carwood Group : BREF032114108
  • Carwood Group : BREF0321986S01028
  • FEBI BILSTEIN : 193162
  • HELLA : 8EA 012 528-501
  • LUCAS : LRS02183
  • NAPA : NSM1081
  • VALEO : 446517
  • VALEO : 458666
  • WAI : 33183N
  • WAI : S130.455
  • BOSCH : 2352
