Bosch 0986023530 Starter Motor
Your selected vehicle
Regular price
£122.85
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986023530 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.2 kW rated power, Self-supporting starter type, and automatic Transmission transmission. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
2.2
Number of mounting bores :
3
Number of threaded holes :
3
Number of Teeth :
11
Number of Teeth :
10
Clamp :
50

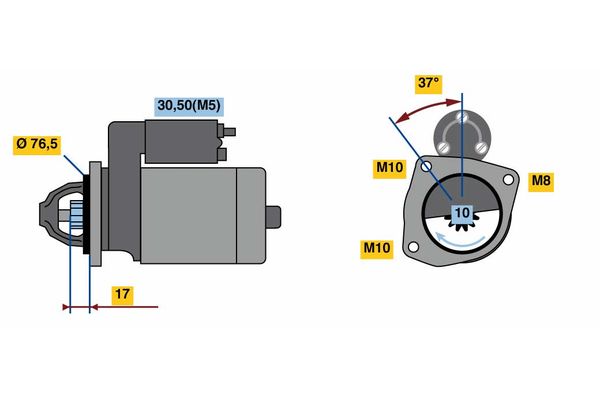

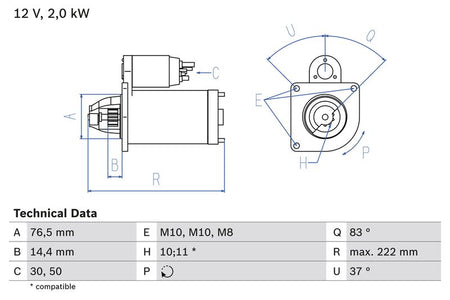

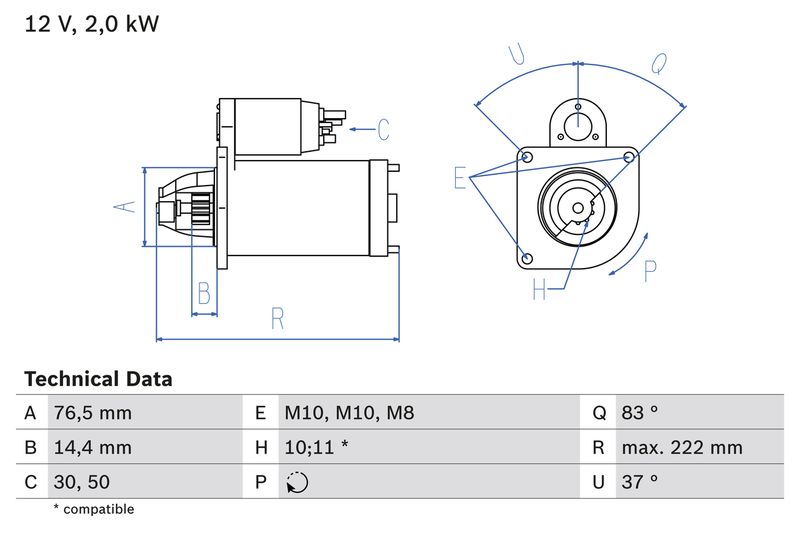

Flange Diameter [mm] :
76.5
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
13.45
Starter Type :
Self-supporting
Thread Size :
M10
Thread Size 1 :
M10x1.5
Thread Size 2 :
M8x1.25
Length [mm] :
222
Position/Degree :
links
Mounting Angle [degrees] :
37
Jaw opening angle measurement [Degree] :
83
Mounting bore angle measurement [degree] :
37
Construction Year from :
11.2015
Construction Year to :
06.2019
Transmission Type :
Automatic Transmission
Engine Code :
YS23<dCi>
Construction Year from :
12.2015
Engine Code :
YS23DDTT
- Vendor BOSCH
- SKU 0986023530
- GMC : 93861155
- NISSAN : 23300JG70A 2330000Q0D 2330000Q3E 233003400A9
- OPEL : 44 16 774 44 17 538 44 21 624 93169459 93456401 93857703 93859136 93861155 93863426
- RENAULT : 23 30 026 54R 74 85 143 838 82 00 402 016 82 00 458 765 82 00 568 535 82 00 621 305 82 00 628 430
- VAUXHALL : 93456401 93857703 93859136 93863426
- BOSCH : 2353
