Bosch 0986023540 Starter - 1
Bosch 0986023540 Starter - 1
BOSCH

Bosch 0986023540 Starter Motor

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986023540

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£204.59 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

NISSAN
ALMERA TINO (V10)
Description Cylinder Capacity Horse Power Year
2.2 dCi 2184 CCM 136 HP 09/2003 - 02/2006
ALMERA Mk II (N16)
Description Cylinder Capacity Horse Power Year
2.2 dCi 2184 CCM 136 HP 09/2003 - 09/2006
ALMERA Mk II (N16)
Description Cylinder Capacity Horse Power Year
2.2 dCi 2184 CCM 136 HP 09/2003 - 09/2006
PRIMERA (P12)
Description Cylinder Capacity Horse Power Year
2.2 Di 2184 CCM 126 HP 03/2002 - 05/2007
2.2 dCi 2184 CCM 139 HP 04/2003 - 04/2006
PRIMERA Hatchback (P12)
Description Cylinder Capacity Horse Power Year
2.2 Di 2184 CCM 126 HP 07/2002 - 05/2007
2.2 dCi 2184 CCM 139 HP From 04/2003
PRIMERA Estate (WP12)
Description Cylinder Capacity Horse Power Year
2.2 Di 2184 CCM 126 HP 03/2002 - 04/2003
2.2 dCi 2184 CCM 139 HP From 04/2003
X-TRAIL I (T30)
Description Cylinder Capacity Horse Power Year
2.2 Di 4x4 2184 CCM 114 HP 07/2001 - 09/2007
2.2 dCi 4x4 2184 CCM 136 HP 06/2001 - 09/2007
2.2 dCi 2184 CCM 136 HP 12/2003 - 09/2007
2.2 DCi 2184 CCM 114 HP 10/2004 - 01/2013
2.2 DCi FWD 2184 CCM 114 HP 06/2001 - 09/2004

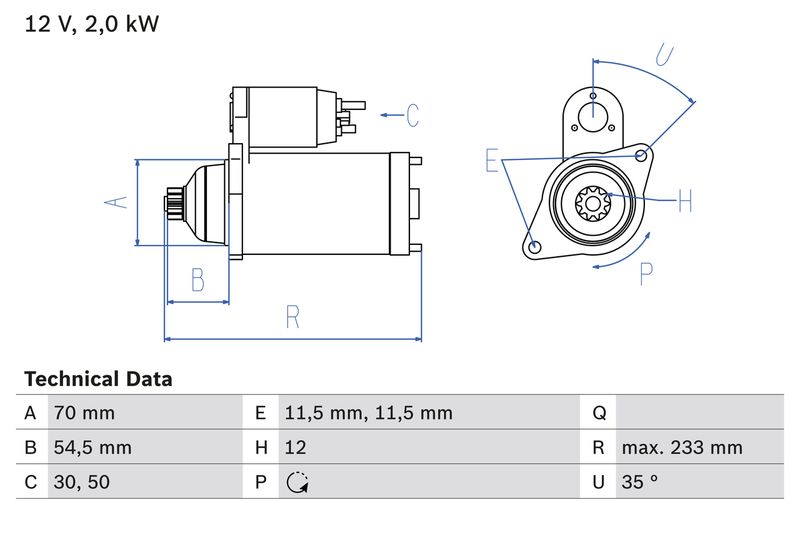

The Bosch 0986023540 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2 kW rated power, 12 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 2
Number of mounting bores : 2
Number of threaded holes : 0
Number of Teeth : 12
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 70
Rotation Direction : Anticlockwise rotation
Pinion Rest Position [mm] : 54.5
Starter Type : Floating pinion
Bore Diameter [mm] : 11.5
Bore Diameter 2 [mm] : 11.5
Length [mm] : 233
Position/Degree : rechts
Mounting Angle [degrees] : 35
Mounting bore angle measurement [degree] : 35
Construction Year to : 12.2005
  • Vendor BOSCH
  • SKU 0986023540
  • Barcode 4047024813328
  • NISSAN : 23300 AU600 23300 AU601 23300 8H801 233008H80A
  • APEC : ASM1609
  • BORG & BECK : BST2090
  • Carwood Group : BREF0320986023540
  • Carwood Group : BREF032113323
  • HELLA : 8EA 012 526-011
  • LUCAS : LRS01667
  • NAPA : NSM1609
  • VALEO : 446517
  • VALEO : 458667
  • WAI : 32699N
  • WAI : S130.942
  • BOSCH : 2354
