BOSCH

Bosch 0986023550 Starter

SKU: 0986023550
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£122.34 inc. VAT
Pay in 3 interest-free payments with Klarna

Free UK delivery

Free shipping available on all orders across the UK.

  • Royal Mail Tracked 48 = Free
  • Royal Mail Tracked 24 = £2.99
  • FedEx Next Day = £4.99
TOYOTA
YARIS/VITZ (_P1_)
Description Cylinder Capacity Horse Power Year
1.0 (SCP10_, SCP10R) 998 CCM 68 HP 04/1999 - 09/2005
1.3 (SCP12_, SCP13_, SCP12R, SCP13R) 1298 CCM 87 HP 04/2002 - 09/2005

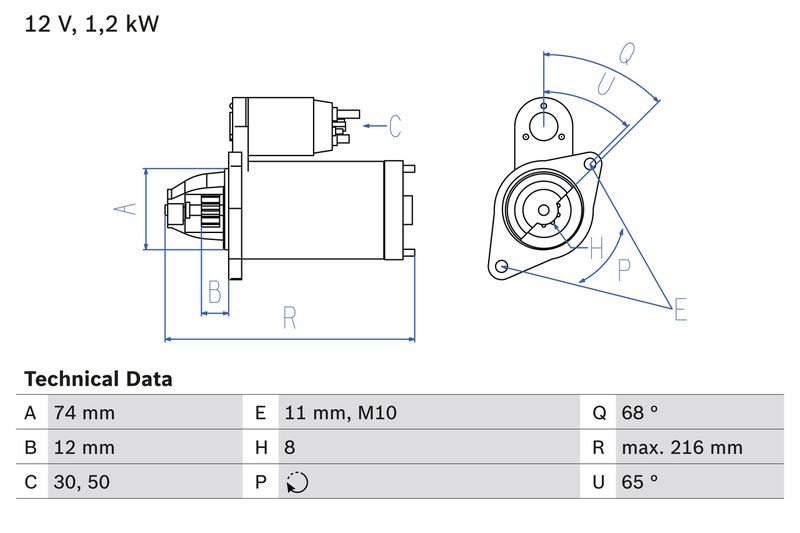

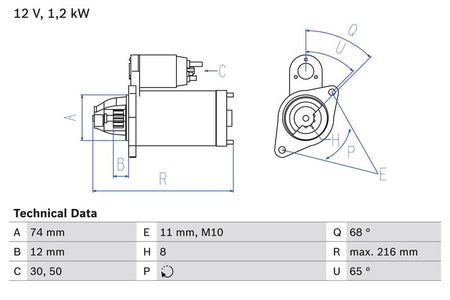

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.2
Number of mounting bores : 1
Number of threaded holes : 1
Number of Teeth : 8
Clamp : 30
Flange Diameter [mm] : 74
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 12
Starter Type : Self-supporting
Thread Size 1 : M10x1.5
Bore Diameter [mm] : 11
Length [mm] : 216
Position/Degree : rechts
Mounting Angle [degrees] : 65
Jaw opening angle measurement [Degree] : 68
Mounting bore angle measurement [degree] : 65
Construction Year to : 12.2002
Construction Year to : 08.2005
  • Vendor BOSCH
  • SKU 0986023550
  • Barcode 4047024813335
  • TOYOTA : 281000J020
  • APEC : ASM1076
  • APEC : ASM1092
  • APEC : ASM1204
  • BLUE PRINT : ADT31263
  • BORG & BECK : BST2018
  • BORG & BECK : BST2276
  • BORG & BECK : BST2353
  • Carwood Group : BREF0320986023550
  • Carwood Group : BREF032114125
  • DENSO : DSN931
  • HELLA : 8EA 011 611-391
  • LUCAS : LRS02380
  • NAPA : NSM1076
  • NAPA : NSM1092
  • NAPA : NSM1204
  • VALEO : 458327
  • WAI : 31215N
  • WAI : 32451N
  • WAI : 32452N
  • WAI : S131.158
  • WAI : S131.430
  • WAI : S131.439
  • BOSCH : 2355
