Bosch 0986023610 Starter Motor

SKU: 0986023610
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£180.40 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
3 Saloon (BK)
Description Cylinder Capacity Horse Power Year
2.0 (BKEP) 1999 CCM 150 HP 10/2003 - 12/2009
3 (BK)
Description Cylinder Capacity Horse Power Year
2.0 (BKEP) 1999 CCM 150 HP 10/2003 - 12/2009
5 (CR)
Description Cylinder Capacity Horse Power Year
1.8 (CR19) 1798 CCM 116 HP 02/2005 - 05/2010
2.0 (CREW, CR19) 1999 CCM 146 HP 02/2005 - 05/2010
6 Station Wagon (GY)
Description Cylinder Capacity Horse Power Year
1.8 1798 CCM 120 HP 08/2002 - 08/2007
2.0 (GYEW) 1999 CCM 141 HP 08/2002 - 08/2007
2.0 (GYEW) 1999 CCM 147 HP 03/2005 - 08/2007
6 Saloon (GG)
Description Cylinder Capacity Horse Power Year
1.8 1798 CCM 120 HP 08/2002 - 08/2007
2.0 (GGEP, GG10) 1999 CCM 141 HP 06/2002 - 08/2007
2.0 (GGEP, GG10) 1999 CCM 147 HP 03/2005 - 08/2007
6 Hatchback (GG)
Description Cylinder Capacity Horse Power Year
1.8 1798 CCM 120 HP 08/2002 - 08/2007
2.0 (GGES) 1999 CCM 141 HP 08/2002 - 08/2007
2.0 (GGES) 1999 CCM 147 HP 03/2005 - 08/2007

The Bosch 0986023610 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1 kW rated power, 11 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

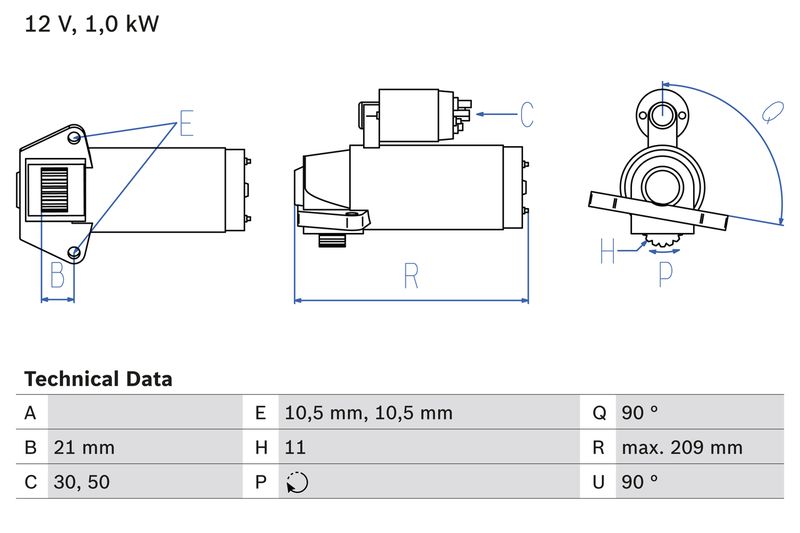

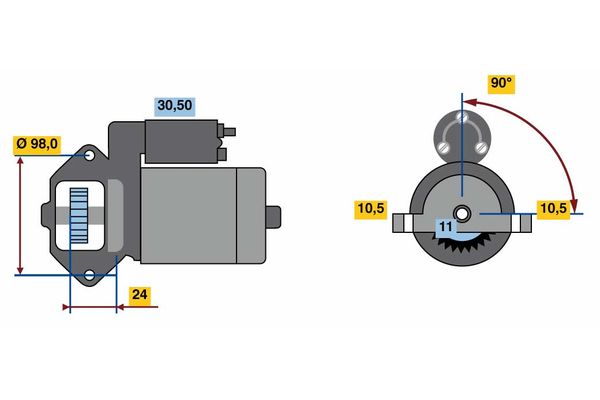

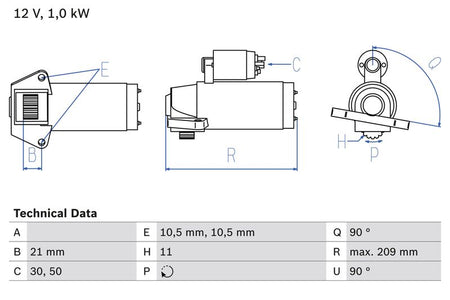

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1
Number of mounting bores : 2
Number of threaded holes : 0
Number of Teeth : 11
Clamp : 50
Clamp : 30
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 21
Starter Type : Self-supporting
Bore Diameter [mm] : 10.5
Bore Diameter 2 [mm] : 10.5
Length [mm] : 209
Engine Code : LF-VE
Engine Code : LF-DE
Engine Code : LF50
Engine Code : LF72
Engine Code : LFN7
Engine Code : LFN8
Construction Year to : 12.2008
  • Vendor BOSCH
  • SKU 0986023610
  • Barcode 4047024813397
  • MAZDA : L813-18-400 L813-18-400A L81318400RE
  • APEC : ASM1035
  • BLUE PRINT : ADM512501
  • BORG & BECK : BST2217
  • BOSCH : 1 986 S01 093
  • BOSCH : 1 986 S01 097
  • Carwood Group : BREF0320986023610
  • Carwood Group : BREF032113795
  • Carwood Group : BREF0321986S01097
  • HELLA : 8EA 012 528-141
  • LUCAS : LRS01713
  • NAPA : NSM1035
  • VALEO : 446517
  • VALEO : 458664
  • WAI : 17909N
  • WAI : S130.458
  • BOSCH : 2361
