Bosch 0986023920 Starter - 1
Bosch 0986023920 Starter - 1
BOSCH

Bosch 0986023920 Starter Motor

SKU: 0986023920
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£123.45 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
3 Saloon (BK)
Description Cylinder Capacity Horse Power Year
1.6 (BK12) 1598 CCM 105 HP 02/2004 - 06/2009
2.0 (BKEP) 1999 CCM 150 HP 10/2003 - 12/2009
3 (BK)
Description Cylinder Capacity Horse Power Year
1.6 (BK14) 1598 CCM 105 HP 10/2003 - 06/2009
1.3 (BK14) 1349 CCM 84 HP 10/2003 - 06/2009

The Bosch 0986023920 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1 kW rated power, 8 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

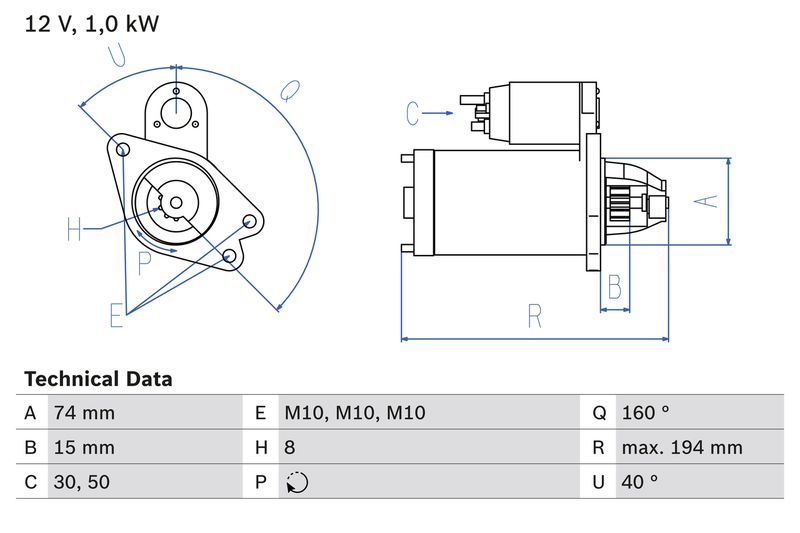

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1
Number of mounting bores : 3
Number of threaded holes : 3
Number of Teeth : 8
Clamp : 30
Flange Diameter [mm] : 74
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 14.7
Starter Type : Self-supporting
Thread Size : M10
Thread Size 1 : M10x1.5
Thread Size 2 : M10x1.5
Thread Size 3 : M10x1.5
Length [mm] : 194
Position/Degree : links
Mounting Angle [degrees] : 40
Jaw opening angle measurement [Degree] : 160
Mounting bore angle measurement [degree] : 40
Engine Code : Z6
Construction Year to : 12.2008
Vehicle Identification Number (VIN) from : 556936
Engine Code : Z6V
Engine Code : LF-DE
Engine Code : LFN7
Engine Code : LFN8
Construction Year to : 06.2009
Engine Code : ZJ32
Engine Code : ZJ07
Engine Code : ZJ30
  • Vendor BOSCH
  • SKU 0986023920
  • Barcode 4047024813700
  • MAZDA : ZJ01-18-400 ZJ01-18-400A
  • APEC : ASM1760
  • BORG & BECK : BST2564
  • BOSCH : 1 986 S00 929
  • Carwood Group : BREF0320986023920
  • Carwood Group : BREF032115553
  • Carwood Group : BREF0321986S00929
  • FEBI BILSTEIN : 188508
  • HELLA : 8EA 012 527-931
  • LUCAS : LRS02267
  • NAPA : NSM1760
  • VALEO : 445632
  • WAI : 33267N
  • WAI : S130.507
  • BOSCH : 2392
