BOSCH

Bosch 0986024050 Starter Motor

5.0/5 78 reviews
SKU: 0986024050

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock
Orders placed by 17:00 are usually dispatched the same working day
£197.73 inc. VAT

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

VW
TOUAREG (7LA, 7L6, 7L7)
Description Cylinder Capacity Horse Power Year
3.0 V6 TDI 2967 CCM 225 HP 11/2004 - 05/2010
3.0 V6 TDI 2967 CCM 240 HP 11/2007 - 05/2010
3.0 TDI 2967 CCM 211 HP 04/2006 - 05/2010
TOUAREG (7P5, 7P6)
Description Cylinder Capacity Horse Power Year
3.0 V6 TDI 2967 CCM 204 HP 01/2010 - 03/2018
3.0 V6 TDI 2967 CCM 245 HP 05/2011 - 03/2018
3.0 V6 TDI 2967 CCM 240 HP 01/2010 - 03/2018
3.0 V6 TDI 2967 CCM 262 HP 09/2014 - 03/2018

The Bosch 0986024050 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.2 kW rated power, 9 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

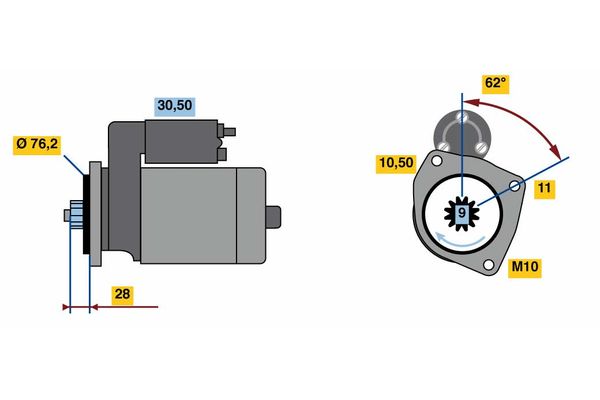

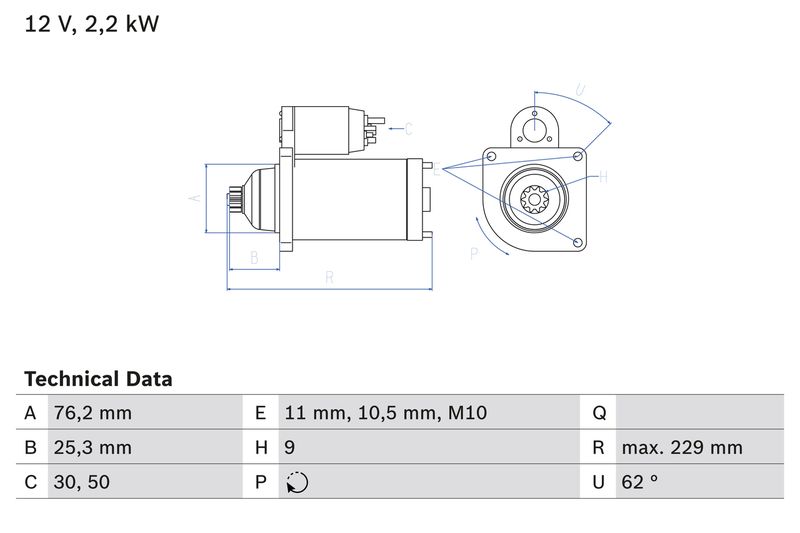

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 2.2
Number of mounting bores : 2
Number of threaded holes : 1
Number of Teeth : 9
Clamp : 30,50
Flange Diameter [mm] : 76.2
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 25.3
Starter Type : Floating pinion
Thread Size 2 : M10x1.5
Bore Diameter [mm] : 11
Bore Diameter 2 [mm] : 10.5
Length [mm] : 243
Position/Degree : rechts
Mounting Angle [degrees] : 62
Mounting bore angle measurement [degree] : 62
Engine Code : BUN
for Model code : 7L6
Construction Year from : 09.2007
Construction Year to : 11.2007
Vehicle Identification Number (VIN) from : 7L..8..020 001
Engine Code : CASB
Construction Year from : 11.2007
Engine Code : BKS
Construction Year to : 05.2008
Engine Code : CATA
Construction Year from : 05.2009
  • Vendor BOSCH
  • SKU 0986024050
  • Barcode 4047024852631
  • APEC : ASM1629
  • BOSCH : 0 001 125 521
  • BOSCH : 1 986 S00 820
  • Carwood Group : BREF0320986024050
  • Carwood Group : BREF032114775
  • Carwood Group : BREF0321986S00820
  • DENSO : DSN3142
  • HELLA : 8EA 011 611-881
  • LUCAS : LRS02624
  • NAPA : NSM1629
  • WAI : 17678N
  • WAI : S132.068
  • BOSCH : 2405
