Bosch 0986024210 Starter - 1
Bosch 0986024210 Starter - 1
BOSCH

Bosch 0986024210 Starter Motor

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986024210

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£137.98 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

FIAT
BRAVA (182_)
Description Cylinder Capacity Horse Power Year
1.2 16V 80 1242 CCM 82 HP 12/1998 - 12/2002
1.2 16V 80 1242 CCM 80 HP 10/2000 - 10/2001
BRAVO I (182_)
Description Cylinder Capacity Horse Power Year
1.2 16V 80 1242 CCM 82 HP 12/1998 - 10/2000
1.2 16V 80 1242 CCM 80 HP 10/2000 - 10/2001
CINQUECENTO (170_)
Description Cylinder Capacity Horse Power Year
1.1 Sporting (170AH) 1108 CCM 54 HP 10/1994 - 01/1998
MAREA (185_)
Description Cylinder Capacity Horse Power Year
1.2 16V 1242 CCM 82 HP 10/1998 - 05/2002
MAREA Weekend (185_)
Description Cylinder Capacity Horse Power Year
1.2 16V 1242 CCM 82 HP 10/1998 - 05/2002
PALIO (178_, 171_, 371_)
Description Cylinder Capacity Horse Power Year
1.2 1242 CCM 60 HP 07/1997 - 08/2002
PALIO Weekend (178_, 173_, 373_, 374_, 171_)
Description Cylinder Capacity Horse Power Year
1.2 1242 CCM 73 HP 04/1996 - 02/2004
1.2 (178DYA1A, 178DXS1A) 1242 CCM 60 HP 07/1997 - 10/2004
1.3 (178DYE1A, 178DYE1AAP, 178DYE1AAT) 1242 CCM 80 HP 09/2001 - 10/2004
PUNTO (176_)
Description Cylinder Capacity Horse Power Year
55 1.1 1108 CCM 54 HP 09/1993 - 09/1999
60 1.2 1242 CCM 58 HP 01/1994 - 09/1999
75 1.2 1242 CCM 73 HP 10/1993 - 09/1999
60 1.2 (176AP, 176AR, 176AQ, 176BB) 1242 CCM 60 HP 09/1993 - 09/1999
1.2 16V 1242 CCM 86 HP 04/1997 - 09/1999
PUNTO Convertible (176_)
Description Cylinder Capacity Horse Power Year
60 1.2 1242 CCM 58 HP 04/1994 - 06/2000
60 1.2 (176AR_, 176BR_) 1242 CCM 60 HP 05/1995 - 06/2000
85 16V 1.2 1242 CCM 86 HP 04/1997 - 06/2000
PUNTO Van (176_)
Description Cylinder Capacity Horse Power Year
1.1 1108 CCM 54 HP 04/1996 - 02/2000
PUNTO (188_)
Description Cylinder Capacity Horse Power Year
1.2 60 (188.030, .050, .130, .150, .230, .250) 1242 CCM 60 HP 09/1999 - 12/2010
1.2 16V 80 (188.233, .235, .253, .255, .333, .353, .639,... 1242 CCM 80 HP 09/1999 - 04/2006
1.2 Natural Power 1242 CCM 60 HP 09/2003 - 03/2012
1.2 Bifuel 1242 CCM 60 HP 08/2007 - 03/2012
1.2 Bipower (188BXA1A) 1242 CCM 60 HP 08/2001 - 05/2003
PUNTO Hatchback Van (188_)
Description Cylinder Capacity Horse Power Year
1.2 60 1242 CCM 60 HP 02/2000 - 10/2009
SEICENTO / 600 (187_)
Description Cylinder Capacity Horse Power Year
1.1 (187AXB, 187AXB1A, 187AXC1A02) 1108 CCM 54 HP 01/1998 - 01/2010
SIENA (178_, 172_, 372_)
Description Cylinder Capacity Horse Power Year
1.3 (178CXG1AAM, 178CXG1AAP, 178CXG1AAT) 1242 CCM 73 HP 09/1998 - 12/2002
1.3 (178CXS1AAI, 178BYA1AAT, 178CYA1AAT) 1242 CCM 60 HP 09/2001 - 12/2012
LANCIA
Y10 (156_)
Description Cylinder Capacity Horse Power Year
1.1 i.e. Fire (156AG) 1108 CCM 50 HP 07/1989 - 09/1995

The Bosch 0986024210 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 0.8 kW rated power, 8 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

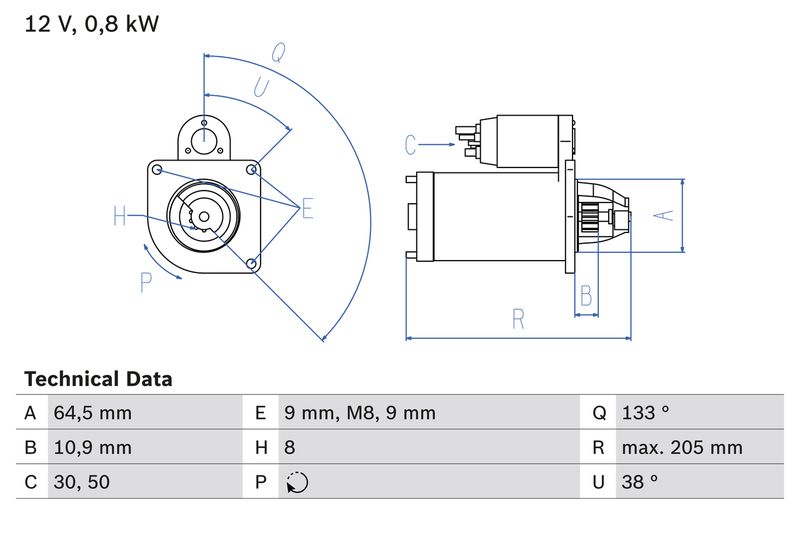

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 0.8
Number of mounting bores : 2
Number of threaded holes : 1
Number of Teeth : 8
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 64.5
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 10.9
Starter Type : Self-supporting
Thread Size 1 : M8x1.25
Bore Diameter [mm] : 9
Bore Ø 3 [mm] : 9
Length [mm] : 205
Position/Degree : rechts
Mounting Angle [degrees] : 38
Jaw opening angle measurement [Degree] : 133
Mounting bore angle measurement [degree] : 38
Construction Year to : 09.2001
Manufacturer Restriction : MARELLI
RICAMBI no. up to : 5042757
RICAMBI Number from : 5042758
  • Vendor BOSCH
  • SKU 0986024210
  • Barcode 4047024852792
  • FIAT : 46548653 46548654 46737560 46740242 46763529 51833880 51890633 55195030 55201304 55201305 7622952
  • LANCIA : 46548653 46740242 46763529 51890633
  • HITACHI : S114903 S114903A S114949
  • APEC : ASM1228
  • BORG & BECK : BST2280
  • BOSCH : 1 986 S01 020
  • Carwood Group : BREF0320986024210
  • Carwood Group : BREF032112382
  • Carwood Group : BREF0321986S01020
  • DENSO : DSN961
  • FEBI BILSTEIN : 101564
  • FEBI BILSTEIN : 101582
  • HELLA : 8EA 012 526-741
  • HELLA : 8EA 012 526-931
  • LUCAS : LRS01578
  • NAPA : NSM1228
  • VALEO : 446519
  • VALEO : 458204
  • WAI : 31397N
  • WAI : S132.816
  • BOSCH : 2421
