Bosch 0986024220 Starter - 1
Bosch 0986024220 Starter - 1
BOSCH

Bosch 0986024220 Starter Motor

SKU: 0986024220
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£106.71 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT
ESPACE Mk IV (JK0/1_)
Description Cylinder Capacity Horse Power Year
2.2 dCi (JK0H) 2188 CCM 150 HP 11/2002 - 08/2006
2.2 dCi (JK07) 2188 CCM 139 HP 02/2006 - 12/2015
LAGUNA II (BG0/1_)
Description Cylinder Capacity Horse Power Year
2.2 dCi (BG0F) 2188 CCM 150 HP 10/2001 - 08/2006
LAGUNA II Sport Tourer (KG0/1_)
Description Cylinder Capacity Horse Power Year
2.2 dCi (KG0F) 2188 CCM 150 HP 10/2001 - 08/2006
VEL SATIS (BJ0_)
Description Cylinder Capacity Horse Power Year
2.2 dCi (BJ0M) 2188 CCM 113 HP 12/2004 - 08/2009
2.2 dCi (BJ0E, BJ0F) 2188 CCM 150 HP 06/2002 - 08/2009
2.2 dCi (BJ0E, BJ0F, BJ0G, BJ0H) 2188 CCM 140 HP 09/2004 - 08/2009
2.2 dCi (BJ0H) 2188 CCM 116 HP 06/2002 - 09/2005

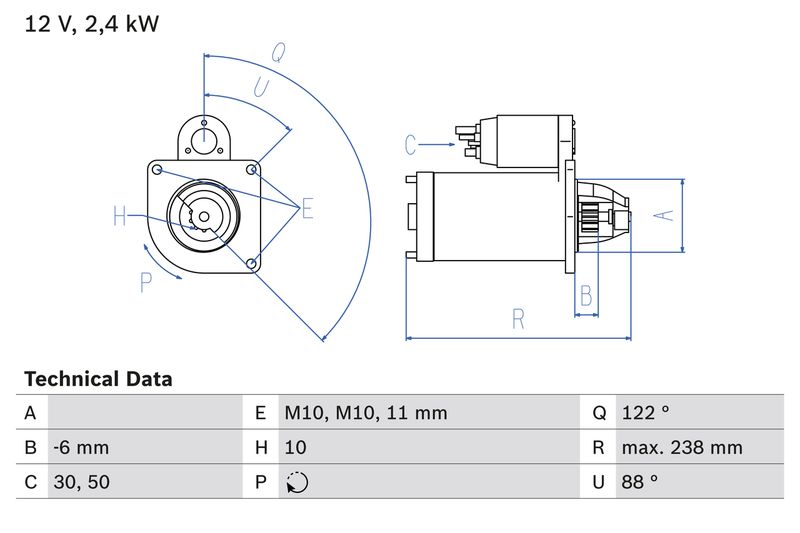

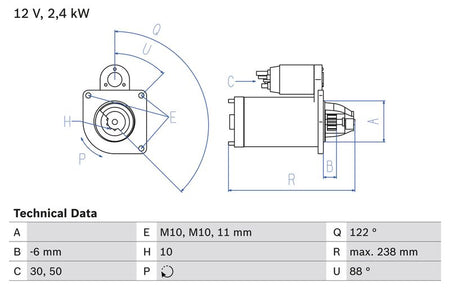

The Bosch 0986024220 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.4 kW rated power, 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 2.4
Number of mounting bores : 1
Number of threaded holes : 2
Number of Teeth : 10
Clamp : 50
Clamp : 30
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : -6
Starter Type : Self-supporting
Thread Size : M10
Thread Size 1 : M10x1.5
Bore Ø 3 [mm] : 11
Length [mm] : 238
Position/Degree : rechts
Mounting Angle [degrees] : 88
Jaw opening angle measurement [Degree] : 122
Mounting bore angle measurement [degree] : 88
  • Vendor BOSCH
  • SKU 0986024220
  • Barcode 4047024852808
  • RENAULT : 77 11 135 502 82 00 237 594 82 00 634 604
  • BORG & BECK : BST2194
  • BOSCH : 1 986 S00 930
  • Carwood Group : BREF0320986024220
  • Carwood Group : BREF032114161
  • Carwood Group : BREF0321986S00930
  • HELLA : 8EA 012 528-091
  • LUCAS : LRS01738
  • VALEO : 438162
  • VALEO : 458178
  • WAI : 32738N
  • BOSCH : 2422
