Bosch 0986024250 Starter - 1
Bosch 0986024250 Starter - 1
BOSCH

Bosch 0986024250 Starter Motor

SKU: 0986024250
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£199.14 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
A4 B6 Avant (8E5)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 130 HP 09/2001 - 12/2004
VW
PASSAT B5.5 Estate (3B6)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 130 HP 11/2000 - 05/2005
1.9 TDI 4motion 1896 CCM 130 HP 11/2000 - 05/2005
PASSAT B5.5 (3B3)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 130 HP 11/2000 - 05/2005
1.9 TDI 4motion 1896 CCM 130 HP 11/2000 - 05/2005

The Bosch 0986024250 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.7 kW rated power, Floating pinion starter type, and 6-Speed Manual Transmission and Manual Transmission transmission. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

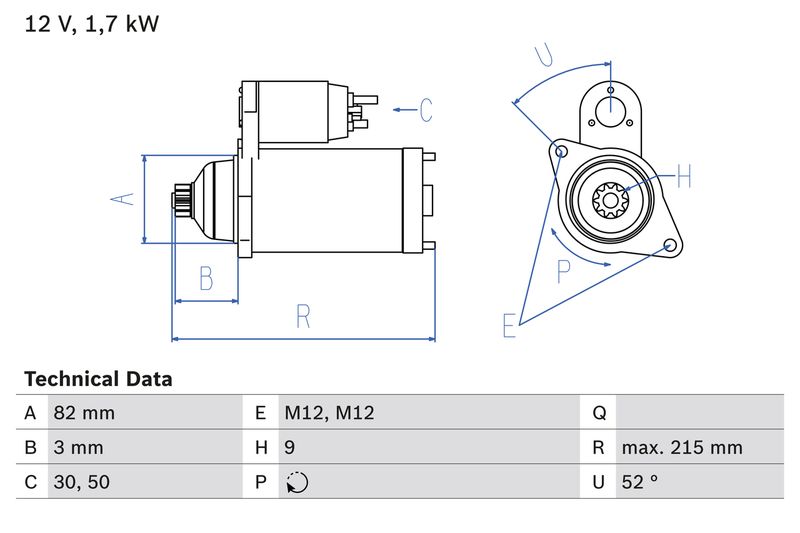

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.7
Number of mounting bores : 0
Number of threaded holes : 2
Number of Teeth : 9
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 82
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 3
Starter Type : Floating pinion
Thread Size : M12
Thread Size 1 : M12x1.75
Length [mm] : 215
Position/Degree : links
Mounting Angle [degrees] : 52
Mounting bore angle measurement [degree] : 52
Engine Code : AVF
Construction Year from : 12.2003
Transmission Type : 6-Speed Manual Transmission
Vehicle Identification Number (VIN) from : 8E..4..170 001
Construction Year to : 05.2004
Transmission Type : Manual Transmission
Vehicle Identification Number (VIN) from : 4B..4..060001
  • Vendor BOSCH
  • SKU 0986024250
  • Barcode 4047024852839
  • AUDI : 068 911 024 L
  • VW : 068 911 024 L
  • BORG & BECK : BST2550
  • BOSCH : 1 986 S00 931
  • Carwood Group : BREF0320986024250
  • Carwood Group : BREF032116338
  • Carwood Group : BREF0321986S00931
  • HELLA : 8EA 012 527-751
  • LUCAS : LRS02269
  • VALEO : 438184
  • VALEO : 458231
  • WAI : 33269N
  • BOSCH : 2425
