Bosch 0986024400 Starter Motor
Your selected vehicle
Regular price
£145.92
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

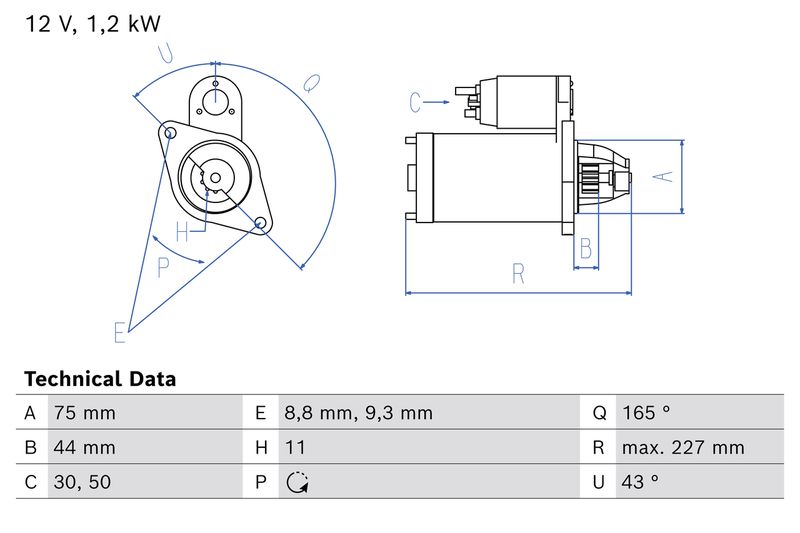

The Bosch 0986024400 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.2 kW rated power, 11 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.2
Number of mounting bores :
2
Number of threaded holes :
0
Number of Teeth :
11
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
75
Rotation Direction :
Anticlockwise rotation
Pinion Rest Position [mm] :
44
Starter Type :
Self-supporting
Bore Diameter [mm] :
8.8
Bore Diameter 2 [mm] :
9.3
Length [mm] :
227
Position/Degree :
links
Mounting Angle [degrees] :
43
Jaw opening angle measurement [Degree] :
165
Mounting bore angle measurement [degree] :
43
Vehicle Equipment :
for vehicles with start-stop function
- Vendor BOSCH
- SKU 0986024400
- MITSUBISHI : 1810A142
- Carwood Group : BREF0320986024400
