Bosch 0986024670 Starter Motor
Your selected vehicle
Regular price
£358.49
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

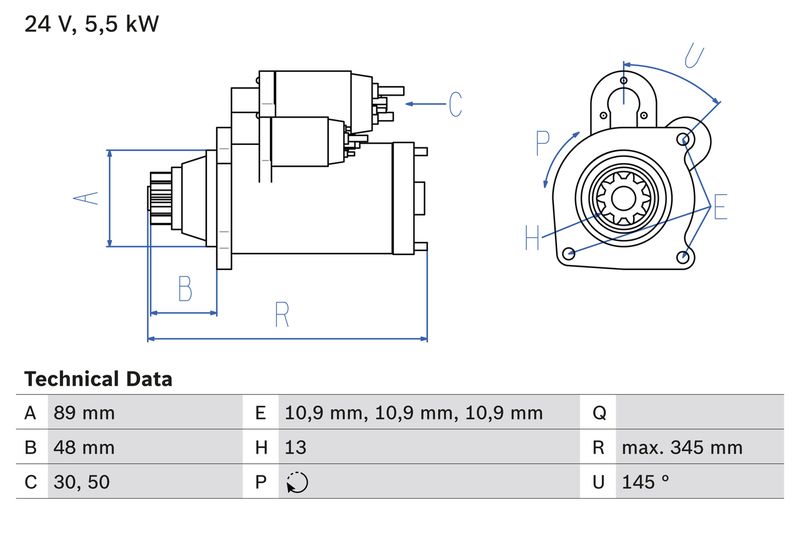

The Bosch 0986024670 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 24 V electrical rating, 5.5 kW rated power, 13 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
24
Rated Power [kW] :
5.5
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
13
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
89
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
48.2
Starter Type :
Floating pinion
Bore Diameter [mm] :
10.9
Bore Diameter 2 [mm] :
10.9
Bore Ø 3 [mm] :
10.9
Length [mm] :
345
Position/Degree :
rechts
Mounting Angle [degrees] :
145
Mounting bore angle measurement [degree] :
145
- Vendor BOSCH
- SKU 0986024670
- VOLVO : 20397219
- BORG & BECK : BST32766
- BOSCH : 0 001 261 041
- BOSCH : 1 986 S10 044
- Carwood Group : BREF0320986024670
- Carwood Group : BREF032114193
- Carwood Group : BREF0321986S10044
- FEBI BILSTEIN : 48996
- HELLA : 8EA 012 586-271
- LUCAS : LRS03825
- MAHLE : MS 775
- WAI : 33311N
- BOSCH : 2467
