Bosch 0986024750 Starter Motor
Your selected vehicle
Regular price
£251.43
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

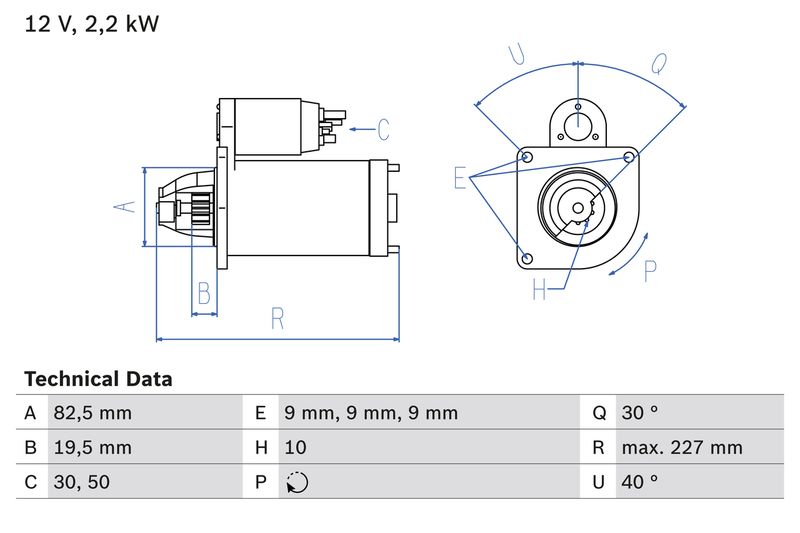

The Bosch 0986024750 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.2 kW rated power, 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
2.2
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
10
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
82.5
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
19.5
Starter Type :
Self-supporting
Bore Diameter [mm] :
9
Bore Diameter 2 [mm] :
9
Bore Ø 3 [mm] :
9
Length [mm] :
227
Position/Degree :
links
Mounting Angle [degrees] :
40
Jaw opening angle measurement [Degree] :
30
Mounting bore angle measurement [degree] :
40
Construction Year from :
01.2003
Construction Year to :
12.2004
Construction Year from :
03.2003
Construction Year to :
12.2007
- Vendor BOSCH
- SKU 0986024750
- CHRYSLER : 56041 579AB
- JEEP : 56041 579AB
- APEC : ASM1058
- BLUE PRINT : ADA101212C
- Carwood Group : BREF0320986024750
- Carwood Group : BREF032114279
- HELLA : 8EA 011 613-341
- LUCAS : LRS02166
- NAPA : NSM1058
- WAI : 17940N
- WAI : S135.640
