Bosch 0986025000 Starter Motor
Your selected vehicle
Regular price
£224.93
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

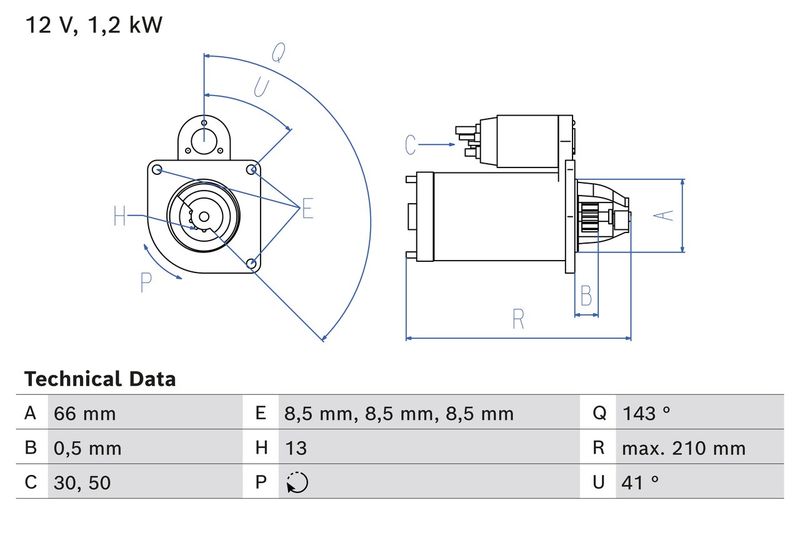

The Bosch 0986025000 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.2 kW rated power, Self-supporting starter type, and manual Transmission transmission. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.2
Number of mounting bores :
3
Number of threaded holes :
0
Clamp :
30,50
Flange Diameter [mm] :
66
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
0.5
Starter Type :
Self-supporting
Bore Diameter [mm] :
8.5
Bore Diameter 2 [mm] :
8.5
Bore Ø 3 [mm] :
8.5
Length [mm] :
210
Position/Degree :
rechts
Mounting Angle [degrees] :
41
Jaw opening angle measurement [Degree] :
143
Mounting bore angle measurement [degree] :
41
Transmission Type :
Manual Transmission
Engine Code :
B38 A15 A
Construction Year to :
03.2018
Construction Year from :
11.2014
- Vendor BOSCH
- SKU 0986025000
- BMW : 12 41 7 649 090 12 41 7 649 091
- MINI : 12 41 7 649 090
- APEC : ASM1657
- Carwood Group : BREF0320986025000
- Carwood Group : BREF032115999
- LUCAS : LRS03905
- NAPA : NSM1657
- VALEO : 438549
- WAI : 31384N
- WAI : S131.974
