Bosch 0986025060 Starter Motor
Your selected vehicle
Regular price
£502.85
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

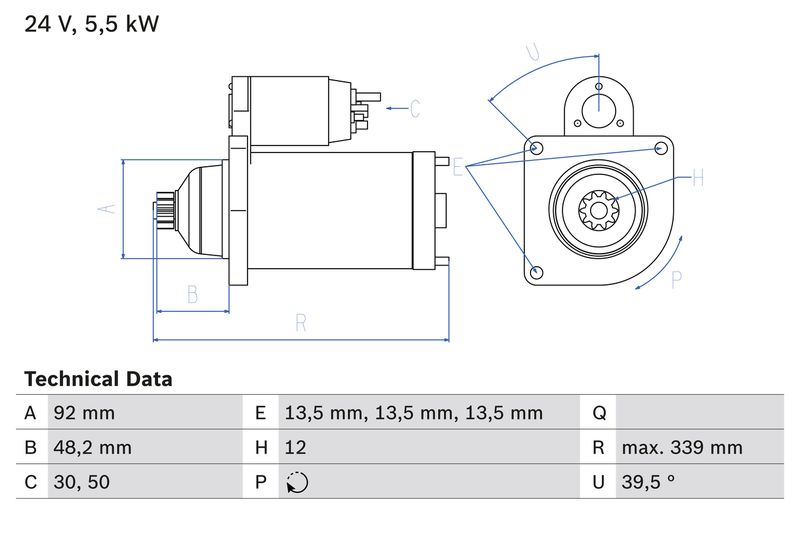

The Bosch 0986025060 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 24 V electrical rating, 5.5 kW rated power, 12 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
24
Rated Power [kW] :
5.5
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
12
Clamp :
30,50
Flange Diameter [mm] :
92
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
48.2
Starter Type :
Floating pinion
Bore Diameter [mm] :
13.5
Bore Diameter 2 [mm] :
13.5
Bore Ø 3 [mm] :
13.5
Length [mm] :
339
Position/Degree :
links
Mounting Angle [degrees] :
39
Mounting bore angle measurement [degree] :
39
- Vendor BOSCH
- SKU 0986025060
- MERCEDES-BENZ : A 007 151 02 01 A 007 151 45 01 A 007 151 59 01 007 151 02 01 007 151 45 01 007 151 59 01
- BOSCH : 0 001 241 128
- BOSCH : 1 986 S10 103
- Carwood Group : BREF0320986025060
- Carwood Group : BREF032115840
- Carwood Group : BREF0321986S10103
- FEBI BILSTEIN : 48992
- LUCAS : LRS02416
- MAHLE : MS 755
- VALEO : 203044
- VALEO : 438280
- WAI : 30478N
- WAI : 30703N
- BOSCH : 2506
