Bosch 0986025380 Starter - 1
Bosch 0986025380 Starter - 1
BOSCH

Bosch 0986025380 Starter Motor

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986025380

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock
Orders placed by 17:00 are usually dispatched the same working day
£200.41 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

FIAT
DUCATO Platform/Chassis (250_)
Description Cylinder Capacity Horse Power Year
150 Multijet 2,3 D 2287 CCM 148 HP From 06/2011
120 Multijet 2,3 D 4x4 2287 CCM 120 HP From 03/2010
110 Multijet 2,3 D 2287 CCM 113 HP 10/2011 - 07/2014
120 Multijet 2,3 D 2287 CCM 120 HP From 07/2006
130 Multijet 2,3 D 2287 CCM 131 HP From 08/2006
110 Multijet 2,3 D 2287 CCM 111 HP From 08/2006
140 Multijet 2,3 D 2287 CCM 140 HP From 05/2019
DUCATO Bus (250_)
Description Cylinder Capacity Horse Power Year
130 Multijet 2,3 D 2287 CCM 131 HP From 01/2007
150 Multijet 2,3 D 2287 CCM 148 HP From 06/2011
110 Multijet 2,3 D 2287 CCM 113 HP 10/2011 - 07/2014
120 Multijet 2,3 D 2287 CCM 120 HP 07/2006 - 10/2013
130 Multijet 2,3 D 4x4 2287 CCM 131 HP From 06/2011
DUCATO Van (250_)
Description Cylinder Capacity Horse Power Year
150 Multijet 2,3 D 2287 CCM 148 HP From 06/2011
120 Multijet 2,3 D 4x4 2287 CCM 120 HP From 03/2010
110 Multijet 2,3 D 2287 CCM 113 HP 10/2011 - 07/2014
120 Multijet 2,3 D 2287 CCM 120 HP From 07/2006
130 Multijet 2,3 D 2287 CCM 131 HP From 08/2006
130 Multijet 2,3 D 4x4 2287 CCM 131 HP From 06/2011

The Bosch 0986025380 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.7 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

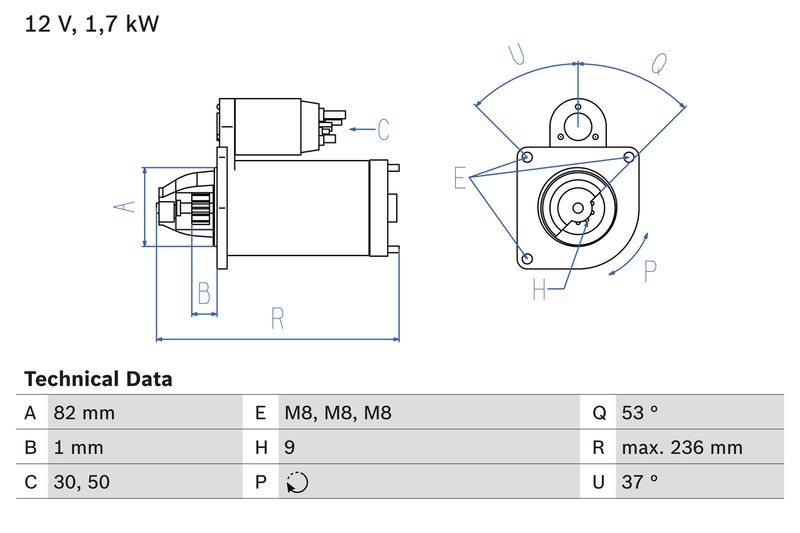

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.7
Number of mounting bores : 0
Number of threaded holes : 3
Number of Teeth : 9
Clamp : 30,50
Flange Diameter [mm] : 82
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 1
Starter Type : Self-supporting
Thread Size : M8x1.25
Thread Size 1 : M8x1.25
Thread Size 2 : M8x1.25
Length [mm] : 236
Position/Degree : links
Mounting Angle [degrees] : 37
Jaw opening angle measurement [Degree] : 53
Mounting bore angle measurement [degree] : 37
  • Vendor BOSCH
  • SKU 0986025380
  • Barcode 4047025332125
  • FIAT : 51832949 51984357 52110465 55832949 71724240 71794785 71794786
  • APEC : ASM1158
  • BORG & BECK : BST2649
  • BOSCH : 0 001 115 114
  • BOSCH : 1 986 S00 777
  • Carwood Group : BREF0320986025380
  • Carwood Group : BREF032114833
  • Carwood Group : BREF0321986S00777
  • FEBI BILSTEIN : 188509
  • HELLA : 8EA 011 611-921
  • LUCAS : LRS02645
  • NAPA : NSM1158
  • VALEO : 438496
  • WAI : 30315N
  • WAI : S132.802
  • BOSCH : 2538
