Bosch 0986025450 Starter Motor
Your selected vehicle
Regular price
£313.00
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

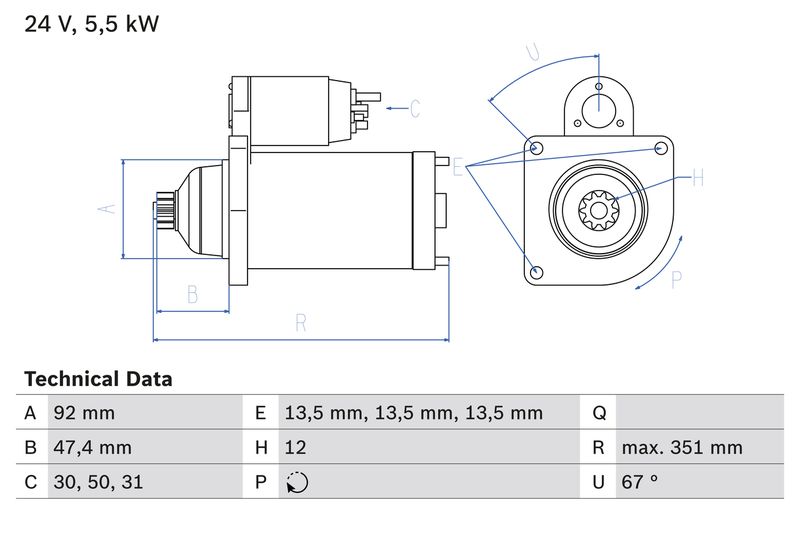

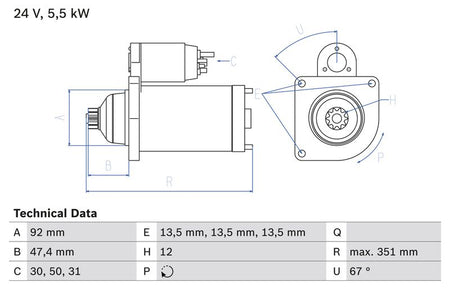

The Bosch 0986025450 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 24 V electrical rating, 5.5 kW rated power, 12 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
24
Rated Power [kW] :
5.5
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
12
Clamp :
50
Clamp :
31
Flange Diameter [mm] :
92
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
47.4
Starter Type :
Floating pinion
Bore Diameter [mm] :
13.5
Bore Diameter 2 [mm] :
13.5
Bore Ø 3 [mm] :
13.5
Length [mm] :
351
Position/Degree :
links
Mounting Angle [degrees] :
67
Mounting bore angle measurement [degree] :
67
- Vendor BOSCH
- SKU 0986025450
- BORG & BECK : BST32066
- BOSCH : 1 986 S10 068
- Carwood Group : BREF0320986025450
- Carwood Group : BREF032113830
- Carwood Group : BREF032115884
- Carwood Group : BREF0321986S10068
- FEBI BILSTEIN : 48995
- FEBI BILSTEIN : 48997
- HELLA : 8EA 012 586-051
- HELLA : 8EA 012 586-291
- LUCAS : LRS02455
- MAHLE : MS 778
- VALEO : 438235
- WAI : 19538N
- BOSCH : 2545
