Bosch 0986025530 Starter Motor
Your selected vehicle
Regular price
£282.69
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

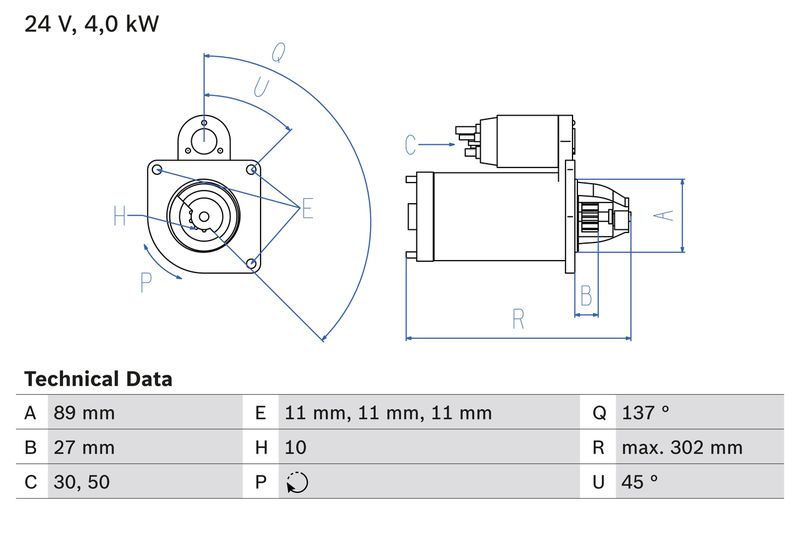

The Bosch 0986025530 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 24 V electrical rating, 4 kW rated power, 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
24
Rated Power [kW] :
4
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
10
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
89
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
27
Starter Type :
Self-supporting
Bore Diameter [mm] :
11
Bore Diameter 2 [mm] :
11
Bore Ø 3 [mm] :
11
Length [mm] :
302
Position/Degree :
rechts
Mounting Angle [degrees] :
45
Jaw opening angle measurement [Degree] :
137
Mounting bore angle measurement [degree] :
45
- Vendor BOSCH
- SKU 0986025530
- FIAT : 504385577
- IVECO : 500389863 504036695 504385577 5801577136
- CASE IH : 2852405 2852478
- IRISBUS : 5801577136
- NEW HOLLAND : 2852405 2852478
- BOSCH : 0 001 251 006
- BOSCH : 1 986 S10 038
- Carwood Group : BREF0320986025530
- Carwood Group : BREF032114196
- Carwood Group : BREF0321986S10038
- HELLA : 8EA 015 657-121
- LUCAS : LRS02531
- MAHLE : MS 239
- WAI : 19400N
- WAI : 19796N
- BOSCH : 2553
