Bosch 0986025540 Starter - 1
Bosch 0986025540 Starter - 1
BOSCH

Bosch 0986025540 Starter Motor

SKU: 0986025540
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£217.26 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

NISSAN
NAVARA (D22)
Description Cylinder Capacity Horse Power Year
2.5 D 4x4 2488 CCM 133 HP From 11/2001
NAVARA Platform/Chassis (D22)
Description Cylinder Capacity Horse Power Year
2.5 Di 2488 CCM 133 HP From 02/2002
NP300 PICKUP (D22)
Description Cylinder Capacity Horse Power Year
2.5 dCi 4x4 2488 CCM 133 HP From 04/2008
2.5 dCi 2488 CCM 133 HP From 04/2008
PICK UP (D22)
Description Cylinder Capacity Horse Power Year
2.5 Di 2488 CCM 133 HP 03/2002 - 12/2012
2.5 dCi 4WD 2488 CCM 133 HP From 03/2002

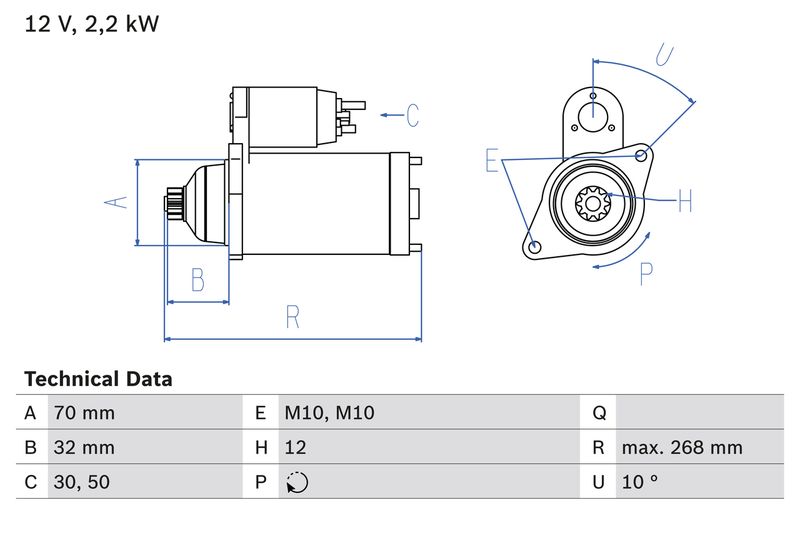

The Bosch 0986025540 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.2 kW rated power, 12 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 2.2
Number of mounting bores : 0
Number of threaded holes : 2
Number of Teeth : 12
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 70
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 32
Starter Type : Floating pinion
Thread Size : M10
Thread Size 1 : M10x1.5
Length [mm] : 268
Position/Degree : rechts
Mounting Angle [degrees] : 10
Mounting bore angle measurement [degree] : 10
Engine Code : YD25
Construction Year to : 01.2008
Engine Code : YD25DDTi
Construction Year from : 08.2010
Construction Year to : 01.2013
Construction Year to : 12.2011
  • Vendor BOSCH
  • SKU 0986025540
  • Barcode 4047026152791
  • NISSAN : 23300 VK500 23300VK50A 23300VM00A
  • APEC : ASM1222
  • BLUE PRINT : ADN112506
  • BORG & BECK : BST2026
  • BOSCH : 1 986 S00 968
  • Carwood Group : BREF0320986025540
  • Carwood Group : BREF032113964
  • Carwood Group : BREF0321986S00968
  • FEBI BILSTEIN : 188383
  • HELLA : 8EA 012 528-061
  • LUCAS : LRS01715
  • NAPA : NSM1222
  • VALEO : 445665
  • WAI : 32715N
  • WAI : S130.742
  • BOSCH : 2554
