Bosch 0986025610 Starter - 1
Bosch 0986025610 Starter - 1
BOSCH

Bosch 0986025610 Starter Motor

SKU: 0986025610
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£227.61 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HONDA
ACCORD VII Tourer (CM, CN)
Description Cylinder Capacity Horse Power Year
2.0 (CM1) 1998 CCM 155 HP 04/2003 - 05/2008
ACCORD VII (CL, CN)
Description Cylinder Capacity Horse Power Year
2.0 (CL7) 1998 CCM 155 HP 02/2003 - 05/2008
ACCORD VIII (CU)
Description Cylinder Capacity Horse Power Year
2.0 i (CU1) 1997 CCM 156 HP 06/2008 - 06/2015
ACCORD VIII Estate (CW)
Description Cylinder Capacity Horse Power Year
2.0 i (CW1) 1997 CCM 156 HP 07/2008 - 06/2015
CIVIC VIII Saloon (FD, FA)
Description Cylinder Capacity Horse Power Year
1.8 (FD1, FD7, FA1) 1799 CCM 140 HP 09/2005 - 02/2012
1.6 1595 CCM 125 HP 09/2005 - 12/2012
CIVIC VIII Hatchback (FN, FK)
Description Cylinder Capacity Horse Power Year
1.8 (FN1, FK2) 1799 CCM 140 HP 09/2005 - 12/2011
Type R (FN2) 1998 CCM 201 HP 09/2006 - 01/2012
2.0 i-VTEC Type R (FN2) 1998 CCM 241 HP 03/2010 - 12/2010
CIVIC IX Saloon (FB)
Description Cylinder Capacity Horse Power Year
1.8 (FB2) 1799 CCM 141 HP 02/2012 - 12/2016
CIVIC X Saloon (FC_)
Description Cylinder Capacity Horse Power Year
1.6 i-VTEC (FC5) 1597 CCM 125 HP 09/2016 - 12/2022
1.6 i-VTEC LPG 1597 CCM 125 HP 01/2019 - 12/2022
CR-V III (RE_)
Description Cylinder Capacity Horse Power Year
2.4 i-VTEC 4WD (RE7) 2354 CCM 166 HP 09/2009 - 12/2012
2.4 4WD (RE4) 2354 CCM 168 HP 09/2006 - 06/2012
2.0 i-VTEC 4WD (RE5, RE2) 1997 CCM 150 HP 10/2006 - 06/2012
2.4 (RE3) 2354 CCM 168 HP 06/2006 - 06/2012
CR-V IV (RM_)
Description Cylinder Capacity Horse Power Year
2.0 iVtec (RE5, RM1) 1997 CCM 155 HP 10/2012 - 12/2018
FR-V (BE)
Description Cylinder Capacity Horse Power Year
1.8 (BE1) 1799 CCM 140 HP 01/2007 - 12/2009

The Bosch 0986025610 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.1 kW rated power, Self-supporting starter type, and automatic Transmission transmission. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

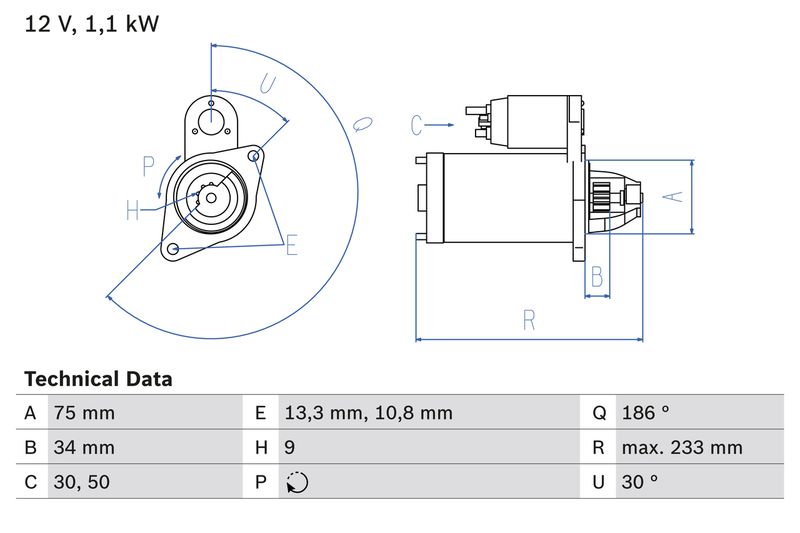

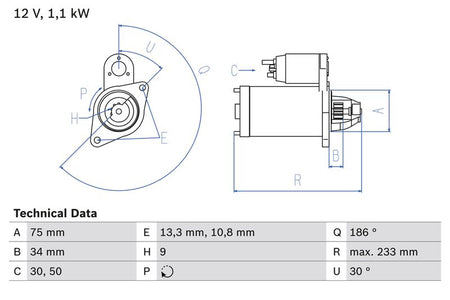

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.1
Number of mounting bores : 2
Number of threaded holes : 0
Number of Teeth : 9
Clamp : 30,50
Flange Diameter [mm] : 75
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 34
Starter Type : Self-supporting
Bore Diameter [mm] : 13.5
Bore Diameter 2 [mm] : 10.8
Length [mm] : 223
Position/Degree : rechts
Mounting Angle [degrees] : 30
Jaw opening angle measurement [Degree] : 186
Mounting bore angle measurement [degree] : 30
Engine Code : K20Z2
Construction Year from : 01.2006
Transmission Type : Automatic Transmission
for OE number : 31200 RAA A61
Engine Code : K20A6
Left-/right-hand drive vehicles : for left-hand drive vehicles
Left-/right-hand drive vehicles : for right-hand drive vehicles
  • Vendor BOSCH
  • SKU 0986025610
  • Barcode 4047026350180
  • HONDA : DSKEG DSKET DSKEV DS4RC DS4RD DS4R5 31200-RNA-A01 31200-RNA-A11 31200-RNA-J01 31200-RNA-003
  • APEC : ASM1746
  • BLUE PRINT : ADH212506
  • BOSCH : 1 986 S00 583
  • Carwood Group : BREF0320986025610
  • Carwood Group : BREF032114389
  • Carwood Group : BREF0321986S00583
  • HELLA : 8EA 011 611-891
  • NAPA : NSM1746
  • VALEO : 438423
  • WAI : 17957N
  • WAI : S130.004
  • BOSCH : 2561
