Bosch 0986025660 Starter Motor
Your selected vehicle
Regular price
£115.43
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

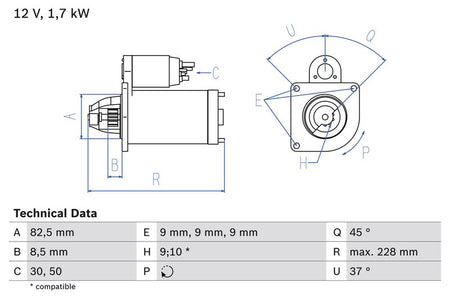

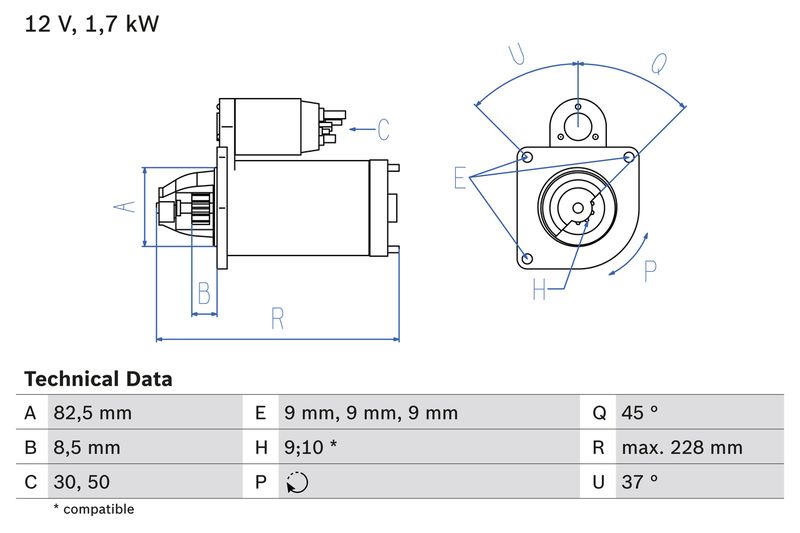

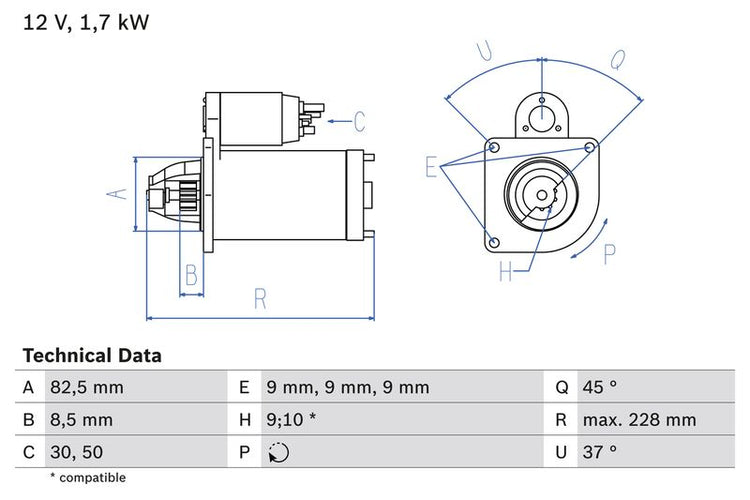

The Bosch 0986025660 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.7 kW rated power, 10 and 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.7
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
10
Number of Teeth :
9
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
82.5
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
8.5
Starter Type :
Self-supporting
Bore Diameter [mm] :
9
Bore Diameter 2 [mm] :
9
Bore Ø 3 [mm] :
9
Length [mm] :
228
Position/Degree :
links
Mounting Angle [degrees] :
37
Jaw opening angle measurement [Degree] :
45
Mounting bore angle measurement [degree] :
37
Construction Year to :
10.2006
Engine Code :
937 A2.000
Construction Year from :
06.2002
Construction Year to :
03.2005
Engine Code :
939 A7.000
Construction Year from :
01.2006
- Vendor BOSCH
- SKU 0986025660
- BOSCH : 2566
