Bosch 0986025830 Starter - 1
Bosch 0986025830 Starter - 1
BOSCH

Bosch 0986025830 Starter Motor

SKU: 0986025830
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£175.29 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi 4x4 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 155 HP 10/2011 - 08/2014
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 125 HP 09/2011 - 12/2014
2.2 TDCi RWD 2198 CCM 135 HP 09/2011 - 08/2014
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 125 HP 09/2011 - 12/2014
2.2 TDCi RWD 2198 CCM 155 HP 10/2011 - 08/2014
2.2 TDCi 4x4 2198 CCM 125 HP 10/2011 - 08/2014
TRANSIT V363 Platform/Chassis (FED, FFD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 135 HP 08/2013 - 12/2018
TRANSIT V363 Bus (FAD, FBD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 135 HP 08/2013 - 12/2018
2.2 TDCi All-wheel Drive 2198 CCM 155 HP 08/2015 - 12/2018
TRANSIT V363 Van (FCD, FDD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 100 HP 08/2013 - 12/2018

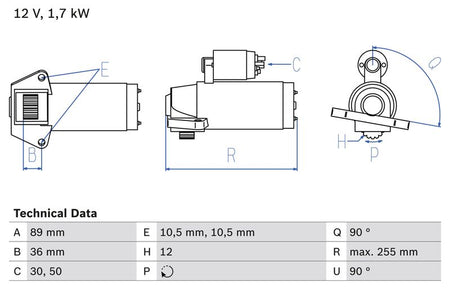

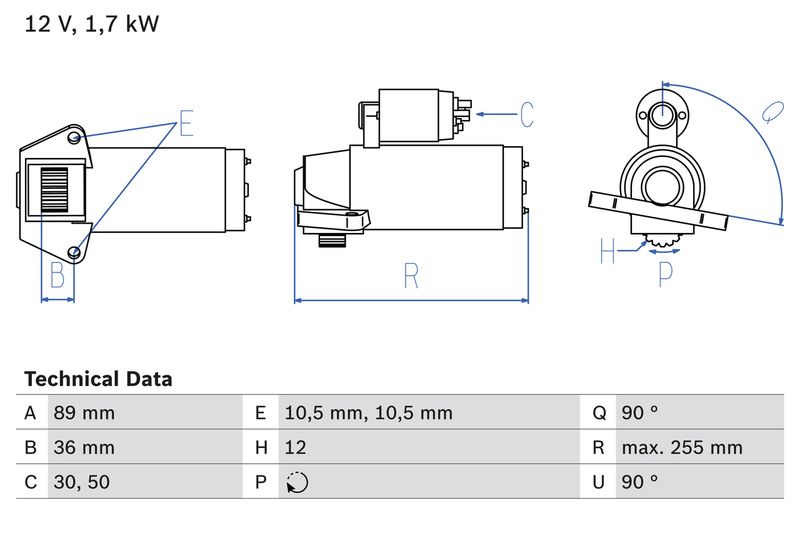

The Bosch 0986025830 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.7 kW rated power, 12 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.7
Number of mounting bores : 2
Number of threaded holes : 0
Number of Teeth : 12
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 89
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 35.6
Starter Type : Self-supporting
Bore Diameter [mm] : 10.5
Bore Diameter 2 [mm] : 10.5
Length [mm] : 255
Position/Degree : rechts
Mounting Angle [degrees] : 90
Jaw opening angle measurement [Degree] : 90
Mounting bore angle measurement [degree] : 90
  • Vendor BOSCH
  • SKU 0986025830
  • Barcode 4047025519328
  • FORD : BK3T11000FA CC1T11000BA CC1T11000BB 1741087 1880119
  • APEC : ASM1549
  • BORG & BECK : BST2656
  • BOSCH : 0 001 115 088
  • BOSCH : 1 986 S00 772
  • Carwood Group : BREF0320986025830
  • Carwood Group : BREF032115732
  • Carwood Group : BREF0321986S00772
  • DENSO : DSN3138
  • HELLA : 8EA 011 612-391
  • LUCAS : LRS02711
  • MAHLE : MS 1081
  • NAPA : NSM1549
  • VALEO : 438321
  • VALEO : 458916
  • WAI : 33338N
  • WAI : S134.388
  • BOSCH : 2583
