Bosch 0986025980 Starter - 1
Bosch 0986025980 Starter - 1
BOSCH

Bosch 0986025980 Starter Motor

SKU: 0986025980
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£125.31 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HYUNDAI
i10 I (PA)
Description Cylinder Capacity Horse Power Year
1.2 1248 CCM 86 HP 04/2011 - 12/2013
1.2 1248 CCM 78 HP 11/2008 - 12/2011
i20 I (PB, PBT)
Description Cylinder Capacity Horse Power Year
1.2 1248 CCM 78 HP 09/2008 - 12/2012
1.2 1248 CCM 86 HP 03/2012 - 12/2015
KIA
PICANTO II (TA)
Description Cylinder Capacity Horse Power Year
1.0 998 CCM 69 HP 05/2011 - 03/2017
1.0 Bi-Fuel 998 CCM 82 HP 05/2011 - 10/2014
1.2 1248 CCM 85 HP 05/2011 - 12/2016
1.0 998 CCM 67 HP 05/2011 - 03/2017
1.2 1248 CCM 87 HP 09/2011 - 02/2017
RIO III Saloon (UB)
Description Cylinder Capacity Horse Power Year
1.25 CVVT 1248 CCM 88 HP 06/2011 - 12/2017
1.25 CVVT 1248 CCM 86 HP 10/2011 - 12/2017
RIO III (UB)
Description Cylinder Capacity Horse Power Year
1.25 CVVT 1248 CCM 86 HP 09/2011 - 12/2017
1.25 LPG 1248 CCM 86 HP 09/2011 - 12/2017
1.2 CVVT 1248 CCM 84 HP 09/2011 - 12/2017
1.2 1248 CCM 69 HP 09/2011 - 12/2017

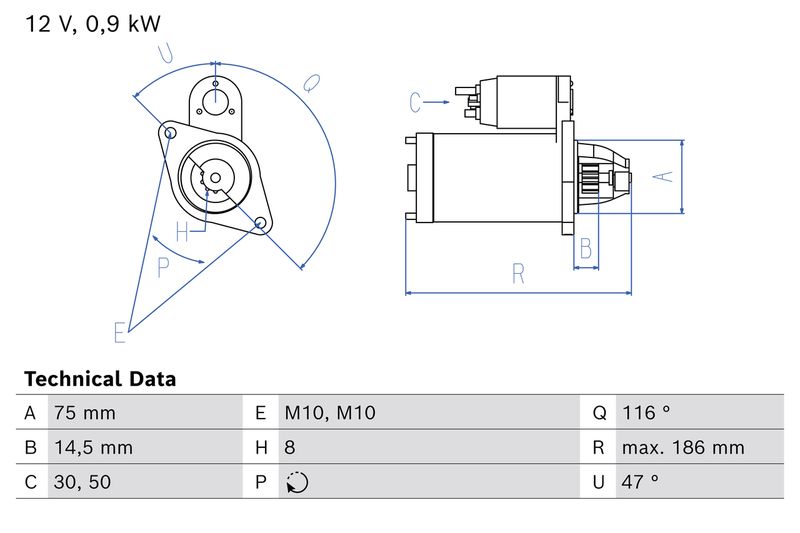

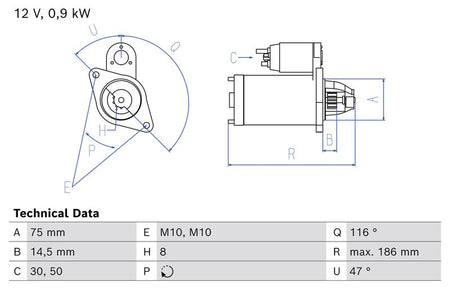

The Bosch 0986025980 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 0.9 kW rated power, 8 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 0.9
Number of mounting bores : 0
Number of threaded holes : 2
Number of Teeth : 8
Clamp : 30,50
Flange Diameter [mm] : 75
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 13.8
Starter Type : Self-supporting
Thread Size : M10x1.25
Thread Size 1 : M10x1.25
Length [mm] : 186
Position/Degree : links
Mounting Angle [degrees] : 47
Jaw opening angle measurement [Degree] : 116
Mounting bore angle measurement [degree] : 47
Construction Year to : 02.2011
Construction Year to : 05.2013
Construction Year from : 01.2009
Construction Year to : 03.2012
  • Vendor BOSCH
  • SKU 0986025980
  • Barcode 4047026517873
  • HYUNDAI : 36100 03100 36100 03200
  • KIA : 36100 03100 36100 03200 36100 03400
  • APEC : ASM1525
  • BOSCH : 1 986 S01 004
  • Carwood Group : BREF0320986025980
  • Carwood Group : BREF032114760
  • FEBI BILSTEIN : 193208
  • HELLA : 8EA 011 612-261
  • LUCAS : LRS02612
  • NAPA : NSM1525
  • WAI : 30350N
  • WAI : S130.368
  • BOSCH : 2598
