BOSCH

Bosch 0986026030 Starter Motor

5.0/5 71 reviews

SKU: 0986026030

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock

Out of Stock

£296.27 inc. VAT

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details

Pay securely with

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

TOYOTA

HILUX VIGO VII Pickup (_N1_, _N2_, _N3_)

Description	Cylinder Capacity	Horse Power	Year
2.5 D-4D (KUN15, KUN35)	2494 CCM	144 HP	01/2010 - 05/2015
2.5 D 4WD (KUN25)	2494 CCM	102 HP	03/2005 - 05/2015
2.5 D-4D 4WD (KUN25_, KUN25R)	2494 CCM	120 HP	06/2006 - 05/2015
3.0 D-4D 4WD (KUN26)	2982 CCM	171 HP	08/2005 - 09/2015
2.5 D-4D (KUN15, KUN10)	2494 CCM	102 HP	03/2005 - 05/2015
3.0 D-4D 4WD (KUN26)	2982 CCM	163 HP	03/2005 - 05/2015
2.5 D-4D 4WD (KUN25)	2494 CCM	144 HP	12/2007 - 05/2015
2.5 D-4D 4WD (KUN25_)	2494 CCM	128 HP	11/2004 - 12/2005
2.5 D-4D (KUN15)	2494 CCM	88 HP	08/2005 - 10/2006
3.0 D-4D 4WD (KUN26)	2982 CCM	169 HP	08/2005 - 05/2015

HILUX VII Platform/Chassis (_N1_, _N2_)

Description	Cylinder Capacity	Horse Power	Year
3.0 D 4WD (KUN26)	2982 CCM	171 HP	From 02/2005

HILUX VIII Platform/Chassis (_N1_)

Description	Cylinder Capacity	Horse Power	Year
2.4 D 4WD (GUN125_, GUN125R)	2393 CCM	150 HP	From 07/2015

HILUX VIII Pickup (_N1_)

Description	Cylinder Capacity	Horse Power	Year
2.4 D (GUN112_, GUN122_, GUN135_, GUN120_, GUN135R,...	2393 CCM	150 HP	From 05/2015
2.4 D 4WD (GUN125_, GUN125R)	2393 CCM	150 HP	From 05/2015
2.4 D (GUN135)	2393 CCM	170 HP	From 10/2018
2.4 D 4WD (GUN125)	2393 CCM	170 HP	From 10/2018
2.8 TD 4WD (GUN126)	2755 CCM	204 HP	From 06/2020
2.8 GD-6 48V MHEV 4WD	2755 CCM	204 HP	From 03/2024
2.8 4WD	2755 CCM	230 HP	From 11/2024
2.8 MHEV 4WD	2755 CCM	230 HP	From 11/2024

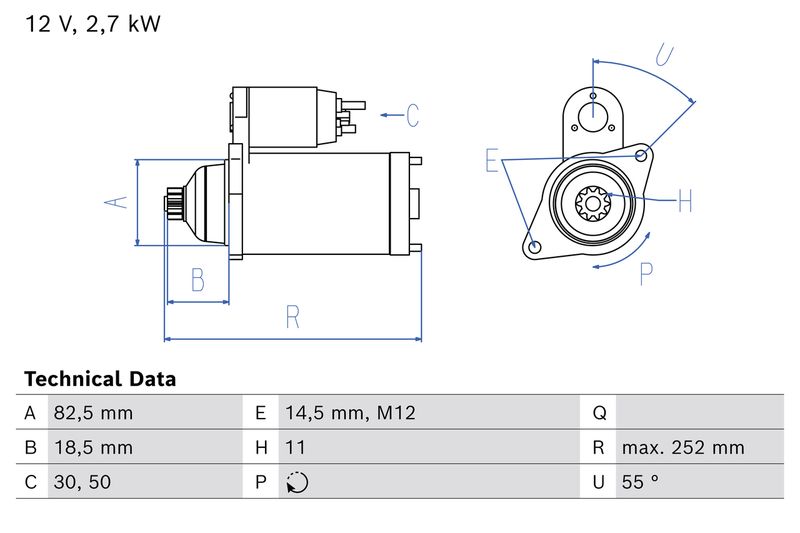

The Bosch 0986026030 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.7 kW rated power, 82.5 mm flange diameter, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter

Voltage [V] : 12

Rated Power [kW] : 2.7

Number of mounting bores : 1

Number of threaded holes : 1

Clamp : 30, 50

Flange Diameter [mm] : 82.5

Rotation Direction : Clockwise rotation

Pinion Rest Position [mm] : 18

Starter Type : Floating pinion

Thread Size : M12X1,25

Bore Diameter [mm] : 14.5

Length [mm] : 252

Position/Degree : rechts

Mounting Angle [degrees] : 55

Mounting bore angle measurement [degree] : 55

Construction Year from : 07.2005

Construction Year to : 08.2011

for Model code : N10,N20,N30

Construction Year to : 11.2008

APEC : ASM1644
BLUE PRINT : ADT312103C
BOSCH : 1 986 S00 590
Carwood Group : BREF0320986026030
Carwood Group : BREF032114853
Carwood Group : BREF0321986S00590
FEBI BILSTEIN : 186628
HELLA : 8EA 011 612-431
NAPA : NSM1644
WAI : 33287N
WAI : S131.085
