Bosch 0986026070 Starter - 1
Bosch 0986026070 Starter - 1
BOSCH

Bosch 0986026070 Starter Motor

SKU: 0986026070
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£132.66 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

DAIHATSU
COPEN (L880_, L881_)
Description Cylinder Capacity Horse Power Year
1.3 1298 CCM 87 HP 03/2006 - 09/2012
MATERIA (M4_)
Description Cylinder Capacity Horse Power Year
1.3 1298 CCM 91 HP From 10/2006
1.5 1495 CCM 103 HP From 10/2006
1.5 ECO 4WD 1495 CCM 103 HP From 10/2006
SIRION (M3_)
Description Cylinder Capacity Horse Power Year
1.3 (M301) 1298 CCM 87 HP From 01/2005
1.3 4WD 1298 CCM 87 HP From 04/2005
1.3 (M301) 1298 CCM 91 HP From 03/2008
1.3 4WD 1298 CCM 91 HP From 03/2008
1.5 (M303) 1495 CCM 103 HP From 03/2008
STORIA (M1)
Description Cylinder Capacity Horse Power Year
1.3 Sport (M101) 1298 CCM 102 HP 08/2000 - 01/2005
1.3 Sport 4WD 1298 CCM 102 HP 08/2000 - 03/2005
TERIOS (J1_)
Description Cylinder Capacity Horse Power Year
1.3 4WD (J102) 1298 CCM 86 HP 10/2000 - 10/2005
1.3 (J122) 1298 CCM 86 HP 07/2000 - 10/2006
TERIOS (J2_, F7__)
Description Cylinder Capacity Horse Power Year
1.5 4x4 1495 CCM 105 HP From 05/2006
1.5 VVT-i RWD 1495 CCM 105 HP From 11/2005
1.3 VVT-i 4x4 1298 CCM 86 HP From 11/2005
1.5 VVT-i 4x4 1495 CCM 102 HP From 09/2010
1.5 VVT-i RWD 1495 CCM 102 HP From 09/2010
YRV (M2)
Description Cylinder Capacity Horse Power Year
1.3 (M201) 1298 CCM 87 HP From 02/2001
1.3 4WD (M211) 1298 CCM 87 HP From 02/2001
1.3 GTti (M201) 1298 CCM 129 HP From 07/2002
TOYOTA
bB II (QNC2_)
Description Cylinder Capacity Horse Power Year
1.5 (QNC21) 1495 CCM 109 HP 01/2006 - 06/2016
1.3 (QNC20) 1298 CCM 92 HP 12/2005 - 06/2016

The Bosch 0986026070 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 0.8 kW rated power, 8 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

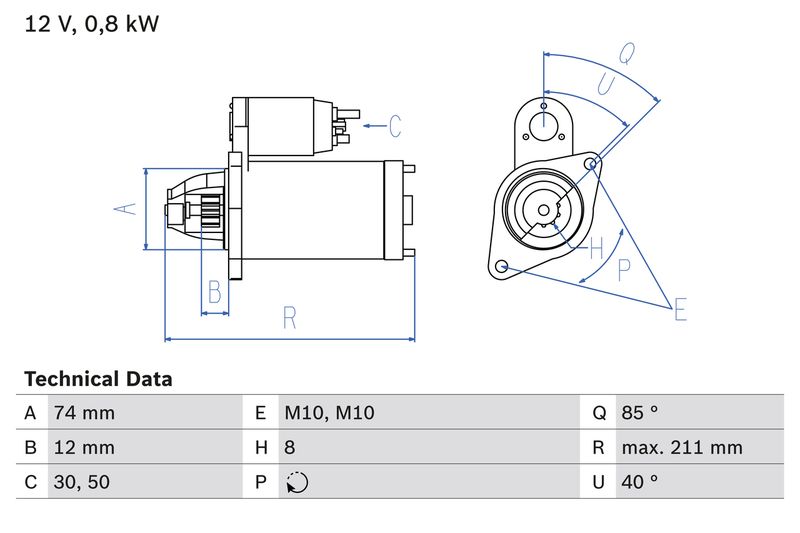

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 0.8
Number of mounting bores : 2
Number of threaded holes : 2
Number of Teeth : 8
Clamp : 30
Flange Diameter [mm] : 74
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 10.3
Starter Type : Self-supporting
Thread Size : M10
Thread Size 1 : M10x1.5
Length [mm] : 211
Position/Degree : rechts
Mounting Angle [degrees] : 40
Jaw opening angle measurement [Degree] : 85
Mounting bore angle measurement [degree] : 40
  • Vendor BOSCH
  • SKU 0986026070
  • Barcode 4047025867153
  • DAIHATSU : 28100 97214 000 28100 97401 28100 97401 000 28100 97402 000
  • TOYOTA : 28100 97214 28100 97401 28100 97402
  • APEC : ASM1768
  • Carwood Group : BREF0320986026070
  • Carwood Group : BREF032115784
  • FEBI BILSTEIN : 186629
  • LUCAS : LRS01532
  • NAPA : NSM1768
  • BOSCH : 2607
