Bosch 0986026120 Starter Motor
Your selected vehicle
Regular price
£108.88
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

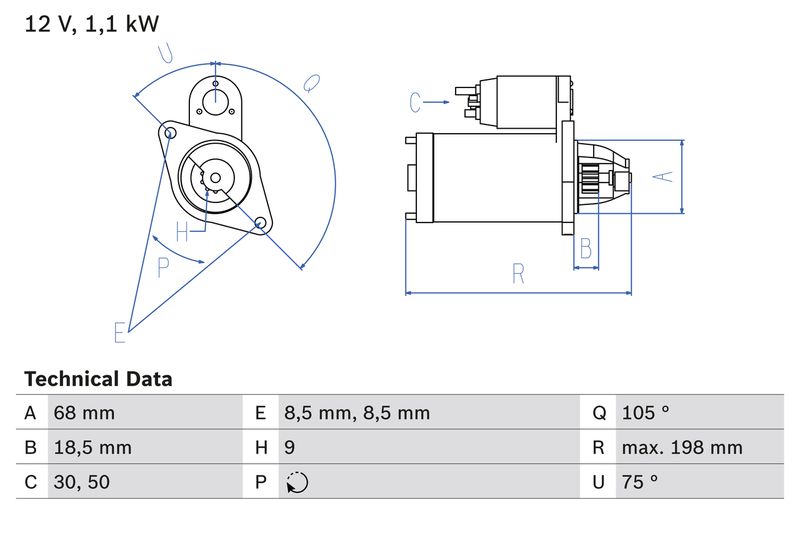

The Bosch 0986026120 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.1 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.1
Number of mounting bores :
2
Number of threaded holes :
0
Number of Teeth :
9
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
68
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
18.5
Starter Type :
Self-supporting
Bore Diameter [mm] :
8.5
Bore Diameter 2 [mm] :
8.5
Length [mm] :
198
Position/Degree :
links
Mounting Angle [degrees] :
75
Jaw opening angle measurement [Degree] :
105
Mounting bore angle measurement [degree] :
75
- Vendor BOSCH
- SKU 0986026120
- BOSCH : 2612
