Bosch 0986026150 Starter Motor

SKU: 0986026150
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
Regular price £243.35 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

The Bosch 0986026150 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.2 kW rated power, Floating pinion starter type, and 6-Speed Automatic Transmission transmission. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

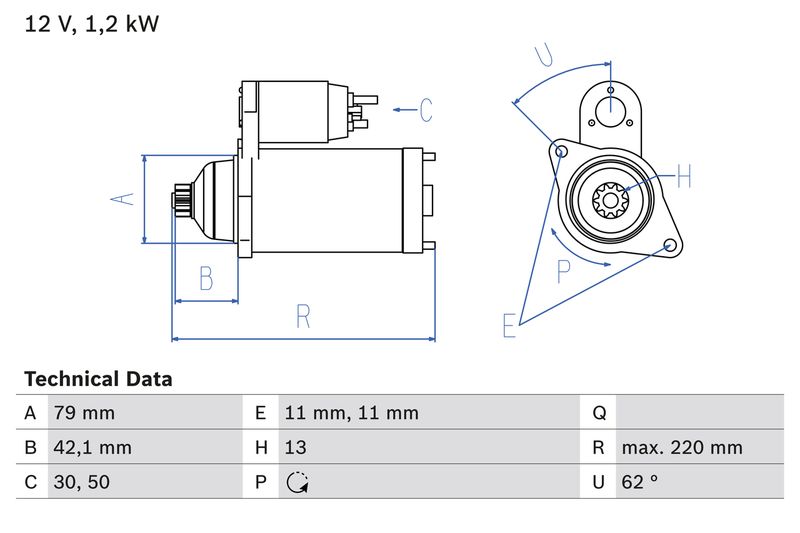

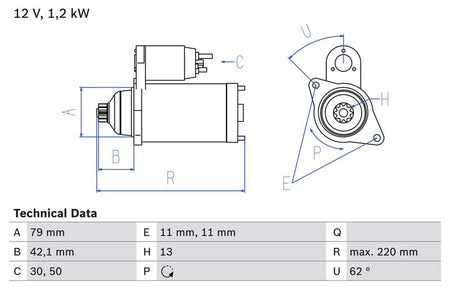

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.2
Number of mounting bores : 2
Number of threaded holes : 0
Number of Teeth : 13
Clamp : 30
Flange Diameter [mm] : 79
Rotation Direction : Anticlockwise rotation
Pinion Rest Position [mm] : 42.1
Starter Type : Floating pinion
Bore Diameter [mm] : 11
Bore Diameter 2 [mm] : 11
Length [mm] : 220
Position/Degree : links
Mounting Angle [degrees] : 62
Mounting bore angle measurement [degree] : 62
Engine Code : DKZC
Construction Year to : 11.2020
Transmission Type : 6-Speed Automatic Transmission
Manufacturer Restriction : Bosch
  • Vendor BOSCH
  • SKU 0986026150
  • Barcode 4047026114577
  • BOSCH : 2615
