Bosch 0986026500 Starter - 1
Bosch 0986026500 Starter - 1
BOSCH

Bosch 0986026500 Starter Motor

SKU: 0986026500
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£220.45 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

LAND ROVER
DISCOVERY SPORT (L550)
Description Cylinder Capacity Horse Power Year
2.2 D 4x4 2179 CCM 150 HP From 09/2014
2.2 D 4x4 2179 CCM 190 HP From 09/2014
FREELANDER 2 (L359)
Description Cylinder Capacity Horse Power Year
2.2 eD4 2179 CCM 150 HP 08/2010 - 10/2014
2.2 TD4 4x4 2179 CCM 150 HP 10/2006 - 10/2014
2.2 SD4 4x4 2179 CCM 190 HP 08/2010 - 10/2014
2.2 TD4 4x4 2179 CCM 160 HP 10/2006 - 10/2014
2.2 TD4 4x4 2179 CCM 152 HP 01/2007 - 10/2014
2.2 TD4 4x4 2179 CCM 156 HP 10/2006 - 10/2014
FREELANDER 2 VAN (L359)
Description Cylinder Capacity Horse Power Year
2.2 TD4 4x4 2179 CCM 160 HP 10/2006 - 10/2014
RANGE ROVER EVOQUE (L538)
Description Cylinder Capacity Horse Power Year
2.2 D 4x4 2179 CCM 150 HP 06/2011 - 12/2019
2.2 D 4x4 2179 CCM 190 HP 05/2011 - 12/2019

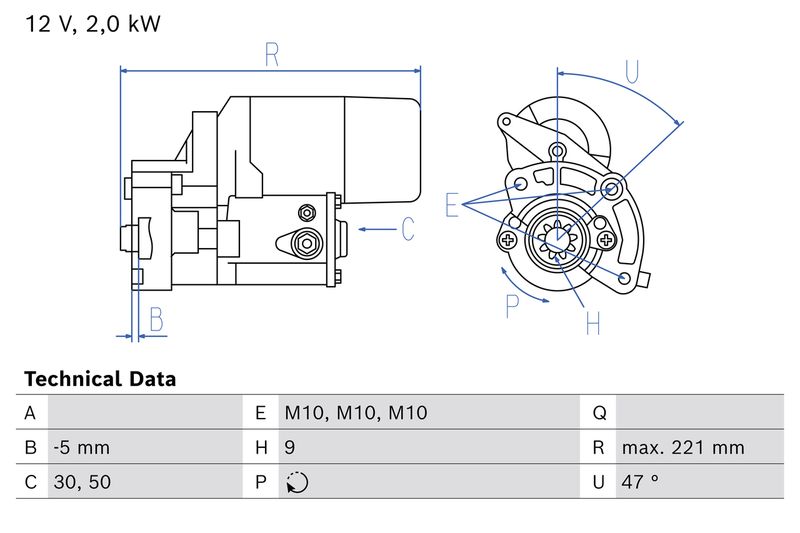

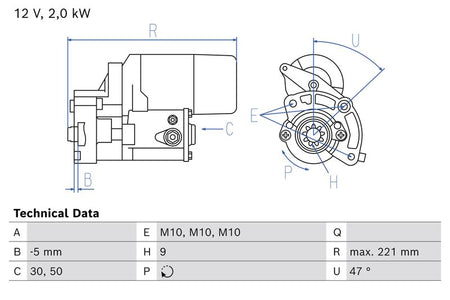

The Bosch 0986026500 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2 kW rated power, Floating pinion starter type, and automatic Transmission transmission. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 2
Number of mounting bores : 0
Number of threaded holes : 3
Number of Teeth : 9
Clamp : 30,50
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : -5
Starter Type : Floating pinion
Thread Size : M10x1,5
Thread Size 1 : M10x1,5
Thread Size 2 : M10x1,5
Length [mm] : 220
Position/Degree : rechts
Mounting Angle [degrees] : 47
Mounting bore angle measurement [degree] : 47
Construction Year to : 08.2017
Transmission Type : Automatic Transmission
Vehicle Equipment : for vehicles without start-stop function
Engine Code : DW12BTED4
  • Vendor BOSCH
  • SKU 0986026500
  • Barcode 4047026537505
  • FORD : 6G9N11000NA 6G9N11000NB
  • ROVER : LR003469 LR007373
  • LAND ROVER : LR003469 LR007373 6G9N11000NA 6G9N11000NB
  • APEC : ASM1666
  • BOSCH : 1 986 S00 626
  • Carwood Group : BREF0320986026500
  • Carwood Group : BREF032115468
  • Carwood Group : BREF0321986S00626
  • HELLA : 8EA 011 613-021
  • NAPA : NSM1666
  • WAI : 30160N
  • WAI : S133.036
  • BOSCH : 2650
