Bosch 0986027010 Starter - 1
Bosch 0986027010 Starter - 1
BOSCH

Bosch 0986027010 Starter Motor

SKU: 0986027010
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£214.32 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
RELAY III Platform/Chassis
Description Cylinder Capacity Horse Power Year
2.2 HDi 130 2198 CCM 130 HP From 07/2006
2.2 HDi 150 2198 CCM 150 HP From 07/2011
RELAY III Bus
Description Cylinder Capacity Horse Power Year
2.2 HDi 130 2198 CCM 130 HP From 07/2011
2.2 HDi 150 2198 CCM 150 HP From 07/2011
RELAY III Van
Description Cylinder Capacity Horse Power Year
2.2 HDi 130 2198 CCM 130 HP From 07/2011
2.2 HDi 150 2198 CCM 150 HP From 07/2011
FORD
TOURNEO CUSTOM V362 Bus (F3)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 09/2012 - 12/2015
2.2 TDCi 2198 CCM 125 HP 09/2012 - 12/2015
2.2 TDCi 2198 CCM 155 HP 09/2012 - 12/2015
TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 125 HP 10/2011 - 08/2014
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 140 HP 10/2007 - 08/2014
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 125 HP 10/2011 - 08/2014
TRANSIT TOURNEO Bus
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 140 HP 10/2007 - 08/2014
2.2 2198 CCM 125 HP 10/2011 - 08/2014
TRANSIT CUSTOM V362 Bus (F3)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 09/2012 - 06/2016
2.2 TDCi 2198 CCM 125 HP 09/2012 - 12/2015
2.2 TDCi 2198 CCM 155 HP 09/2012 - 12/2015
TRANSIT CUSTOM V362 Van (FY, FZ)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 09/2012 - 06/2016
2.2 TDCi 2198 CCM 125 HP 09/2012 - 04/2016
2.2 TDCi 2198 CCM 155 HP 09/2012 - 12/2015
TRANSIT V363 Platform/Chassis (FED, FFD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 155 HP 08/2013 - 12/2018
TRANSIT V363 Bus (FAD, FBD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 155 HP 12/2014 - 12/2018
TRANSIT V363 Van (FCD, FDD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
PEUGEOT
BOXER Bus
Description Cylinder Capacity Horse Power Year
2.2 HDi 130 2198 CCM 131 HP From 03/2011
2.2 HDi 150 2198 CCM 150 HP From 03/2011
BOXER Platform/Chassis
Description Cylinder Capacity Horse Power Year
2.2 HDi 130 2198 CCM 131 HP From 04/2006
2.2 HDi 150 2198 CCM 150 HP From 03/2011
BOXER Van
Description Cylinder Capacity Horse Power Year
2.2 HDi 130 2198 CCM 131 HP From 03/2011
2.2 HDi 150 2198 CCM 150 HP From 03/2011

The Bosch 0986027010 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.5 kW rated power, 12 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

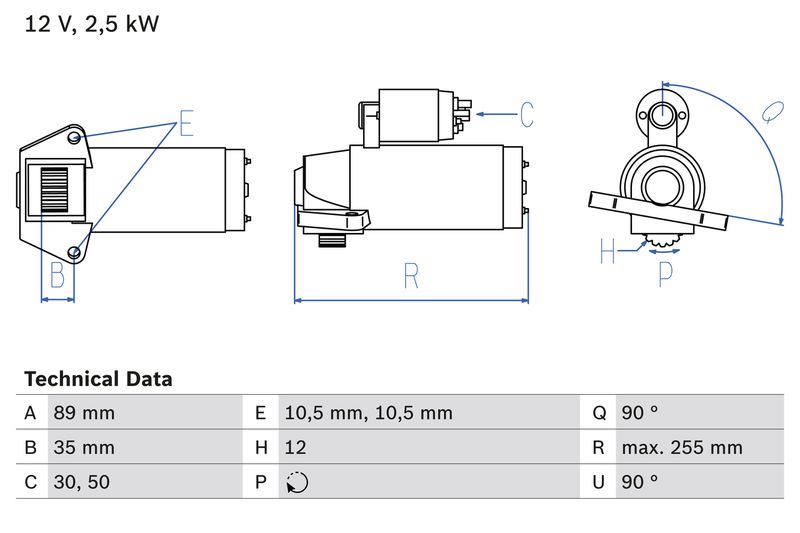

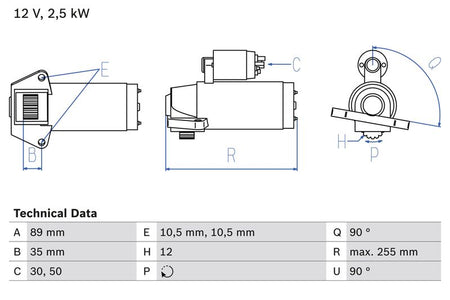

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 2.5
Number of mounting bores : 2
Number of threaded holes : 0
Number of Teeth : 12
Clamp : 30,50
Flange Diameter [mm] : 89
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 35.4
Starter Type : Self-supporting
Bore Diameter [mm] : 10.5
Bore Diameter 2 [mm] : 10.5
Length [mm] : 255
Position/Degree : rechts
Mounting Angle [degrees] : 90
Jaw opening angle measurement [Degree] : 90
Mounting bore angle measurement [degree] : 90
  • Vendor BOSCH
  • SKU 0986027010
  • Barcode 4047025678421
  • CITROËN : 96 786 901 80
  • FORD : CC1T11000DA CC1T11000DB CC1T11000DC CC1T11000DD 1740948 1745176 2033120
  • PEUGEOT : 96 786 901 80
  • APEC : ASM1190
  • BOSCH : 0 001 139 023
  • BOSCH : 1 986 S00 841
  • Carwood Group : BREF0320986027010
  • Carwood Group : BREF032115986
  • Carwood Group : BREF0321986S00841
  • FEBI BILSTEIN : 1003672
  • HELLA : 8EA 011 611-651
  • LUCAS : LRS02623
  • NAPA : NSM1190
  • VALEO : 438601
  • VALEO : 458876
  • WAI : 30229N
  • WAI : S134.276
  • BOSCH : 2701
