BOSCH

Bosch 0986028020 Starter Motor

SKU: 0986028020

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£263.26 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VOLVO

164 (164)

Description	Cylinder Capacity	Horse Power	Year
2.9	2978 CCM	160 HP	08/1972 - 07/1974
2.9 E	2978 CCM	131 HP	08/1968 - 07/1973

240 (P242, P244)

Description	Cylinder Capacity	Horse Power	Year
2.0	1986 CCM	90 HP	08/1976 - 07/1979
2.1	2127 CCM	97 HP	08/1974 - 07/1975
2.1	2127 CCM	100 HP	08/1975 - 07/1980
2.1	2127 CCM	107 HP	08/1980 - 07/1984
2.1	2127 CCM	122 HP	08/1974 - 09/1983
2.1 Turbo	2127 CCM	155 HP	08/1980 - 07/1984
2.3	2316 CCM	112 HP	08/1980 - 07/1984
2.3	2316 CCM	136 HP	08/1980 - 07/1983
2.3	2316 CCM	140 HP	08/1978 - 12/1982

240 Kombi (P245)

Description	Cylinder Capacity	Horse Power	Year
2.1	2127 CCM	100 HP	08/1975 - 07/1980
2.1	2127 CCM	109 HP	08/1980 - 07/1984
2.1	2127 CCM	122 HP	08/1974 - 09/1983
2.1 Turbo	2127 CCM	155 HP	08/1980 - 07/1985
2.3	2316 CCM	112 HP	08/1980 - 07/1984
2.3	2316 CCM	136 HP	08/1980 - 12/1984
2.0	1986 CCM	82 HP	08/1974 - 07/1975
2.0	1986 CCM	97 HP	08/1980 - 12/1984
2.1	2127 CCM	97 HP	08/1974 - 07/1975

340-360 (343, 345)

Description	Cylinder Capacity	Horse Power	Year
2.0	1986 CCM	95 HP	08/1980 - 07/1983
2.0	1986 CCM	88 HP	08/1980 - 07/1984
2.0	1986 CCM	113 HP	08/1982 - 07/1984
2.0	1986 CCM	115 HP	08/1982 - 07/1984
2.0	1986 CCM	92 HP	08/1983 - 07/1984

340-360 Saloon (344)

Description	Cylinder Capacity	Horse Power	Year
2.0	1986 CCM	90 HP	08/1982 - 07/1984
2.0	1986 CCM	92 HP	08/1983 - 07/1984
2.0	1986 CCM	113 HP	08/1983 - 07/1984

760 (704, 764)

Description	Cylinder Capacity	Horse Power	Year
2.3 Turbo	2316 CCM	173 HP	08/1982 - 07/1984

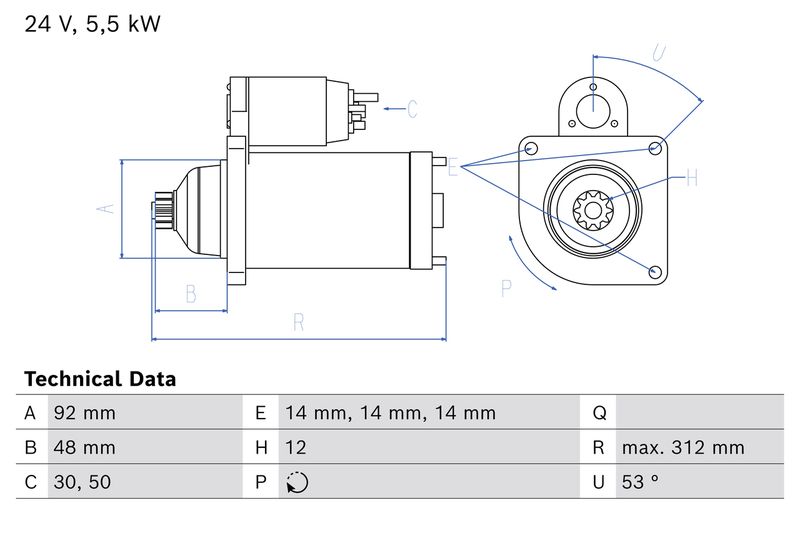

The Bosch 0986028020 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 24 V electrical rating, 5.5 kW rated power, 92 mm flange diameter, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter

Voltage [V] : 24

Rated Power [kW] : 5.5

Number of mounting bores : 3

Number of threaded holes : 0

Clamp : 50

Clamp : 30

Flange Diameter [mm] : 92

Rotation Direction : Clockwise rotation

Pinion Rest Position [mm] : 48

Starter Type : Floating pinion

Bore Diameter [mm] : 14

Bore Diameter 2 [mm] : 14

Bore Ø 3 [mm] : 14

Length [mm] : 312

Position/Degree : rechts

Mounting Angle [degrees] : 53

Mounting bore angle measurement [degree] : 53

Bosch 0986028020 Starter Motor
