Bosch 0986028090 Starter Motor
Your selected vehicle
Regular price
£193.40
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

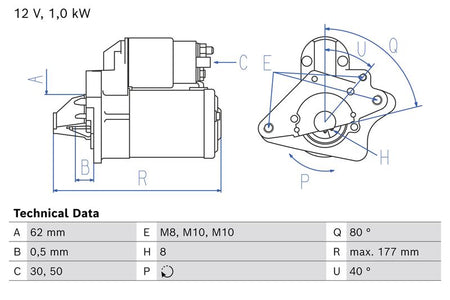

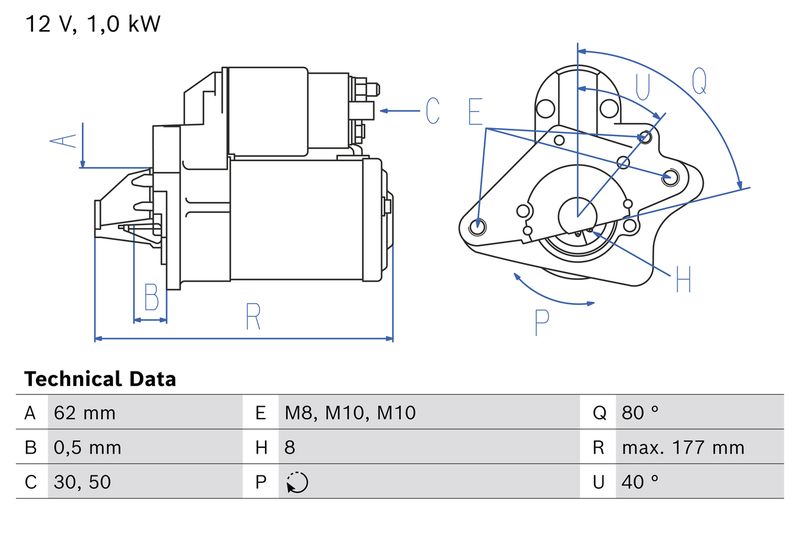

The Bosch 0986028090 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1 kW rated power, 8 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1
Number of mounting bores :
0
Number of threaded holes :
3
Number of Teeth :
8
Clamp :
30,50
Flange Diameter [mm] :
62
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
0.5
Starter Type :
Self-supporting
Thread Size :
M8x1,25
Thread Size 1 :
M10x1,5
Thread Size 2 :
M10x1,5
Length [mm] :
177
Position/Degree :
rechts
Mounting Angle [degrees] :
40
Jaw opening angle measurement [Degree] :
80
Mounting bore angle measurement [degree] :
40
for OE number :
82 00 665 518
Construction Year to :
04.2009
- Vendor BOSCH
- SKU 0986028090
- RENAULT : 82 00 665 518
- BOSCH : 1 986 S00 598
- Carwood Group : BREF0320986028090
- Carwood Group : BREF032115842
- Carwood Group : BREF0321986S00598
- LUCAS : LRS02548
- VALEO : 438509
- WAI : 33355N
- BOSCH : 2809
