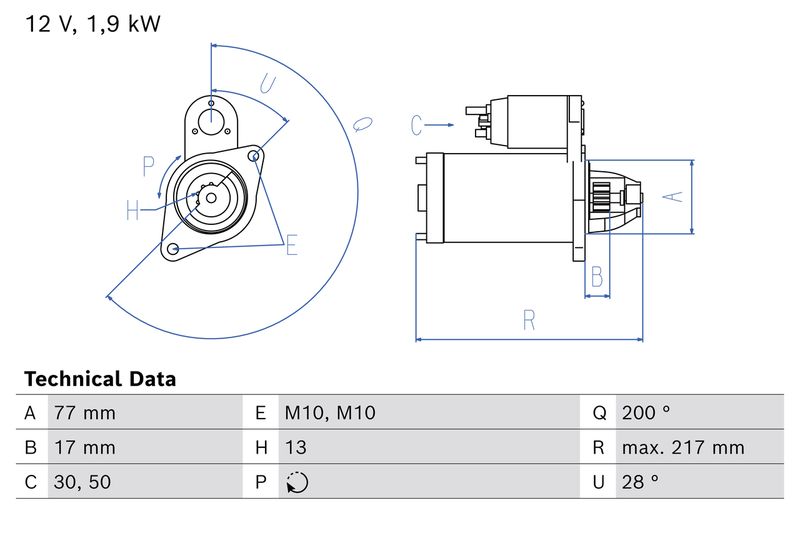

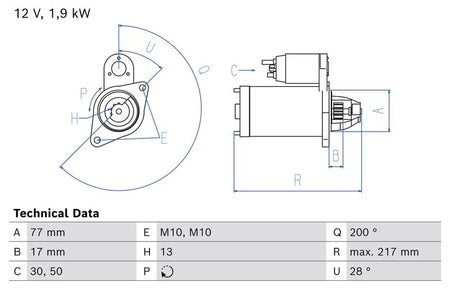

Bosch 0986029220 Starter - 1
Bosch 0986029220 Starter - 1
BOSCH

Bosch 0986029220 Starter Motor

SKU: 0986029220
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£150.88 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HYUNDAI
i40 I CW (VF)
Description Cylinder Capacity Horse Power Year
1.7 CRDi 1685 CCM 116 HP 07/2011 - 05/2019
1.7 CRDi 1685 CCM 136 HP 07/2011 - 05/2019
1.7 CRDi 1685 CCM 141 HP 01/2015 - 05/2019
i40 I (VF)
Description Cylinder Capacity Horse Power Year
1.7 CRDi 1685 CCM 116 HP 03/2012 - 05/2019
1.7 CRDi 1685 CCM 136 HP 03/2012 - 05/2019
1.7 CRDI 1685 CCM 141 HP 01/2015 - 05/2019
ix35 (LM, EL, ELH)
Description Cylinder Capacity Horse Power Year
1.7 CRDi 1685 CCM 116 HP 11/2010 - 12/2015
KIA
CARENS IV
Description Cylinder Capacity Horse Power Year
1.7 CRDi 1685 CCM 116 HP 03/2013 - 08/2016
1.7 CRDi 1685 CCM 136 HP 03/2013 - 08/2016
1.7 CRDi 1685 CCM 141 HP 07/2015 - 08/2016
OPTIMA (FSGDS6B)
Description Cylinder Capacity Horse Power Year
1.7 CRDi 1685 CCM 136 HP 03/2012 - 12/2015
SPORTAGE III (SL)
Description Cylinder Capacity Horse Power Year
1.7 CRDi 1685 CCM 116 HP 12/2010 - 12/2015

The Bosch 0986029220 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.9 kW rated power, 13 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.9
Number of mounting bores : 0
Number of threaded holes : 2
Number of Teeth : 13
Clamp : 30,50
Flange Diameter [mm] : 77
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 17
Starter Type : Self-supporting
Thread Size : M10x1,25
Thread Size 1 : M10x1,25
Length [mm] : 217
Position/Degree : rechts
Mounting Angle [degrees] : 28
Jaw opening angle measurement [Degree] : 200
Mounting bore angle measurement [degree] : 28
Construction Year to : 02.2015
Vehicle Equipment : for vehicles with start-stop function
  • Vendor BOSCH
  • SKU 0986029220
  • Barcode 4047026571950
  • HYUNDAI : 36100 2A550
  • KIA : 36100 2A550
  • BOSCH : 1 986 S00 601
  • Carwood Group : BREF0320986029220
  • Carwood Group : BREF032116255
  • Carwood Group : BREF0321986S00601
  • HELLA : 8EA 011 611-961
  • VALEO : 445624
  • BOSCH : 2922
