Bosch 0986029250 Starter - 1
Bosch 0986029250 Starter - 1
BOSCH

Bosch 0986029250 Starter Motor

SKU: 0986029250
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£177.91 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MAZDA
3 (BL)
Description Cylinder Capacity Horse Power Year
2.0 MZR DISI (BLEFW) 1999 CCM 151 HP 12/2008 - 05/2013
2.0 MZR (BLEFW) 1999 CCM 150 HP 01/2009 - 09/2014
2.3 MPS Turbo (BL14) 2261 CCM 260 HP 12/2008 - 09/2014
2.0 DISI (BLEFW) 1998 CCM 150 HP 05/2009 - 02/2012
3 Saloon (BL)
Description Cylinder Capacity Horse Power Year
2.0 MZR (BL12, BLEFP) 1999 CCM 150 HP 03/2009 - 09/2014
5 (CW)
Description Cylinder Capacity Horse Power Year
1.8 MZR 1798 CCM 116 HP From 09/2010
2.0 1999 CCM 147 HP From 01/2011
6 Saloon (GH)
Description Cylinder Capacity Horse Power Year
1.8 MZR 1798 CCM 120 HP 08/2007 - 07/2013
2.0 MZR (GHEFP, GH10F) 1999 CCM 147 HP 08/2007 - 12/2012
2.5 MZR (GH5FS, GH5FP) 2488 CCM 170 HP 08/2007 - 07/2013
2.0 MZR (GHEFP) 1999 CCM 155 HP 01/2010 - 12/2012
6 Hatchback (GH)
Description Cylinder Capacity Horse Power Year
2.0 MZR (GHEFS) 1999 CCM 155 HP 01/2010 - 12/2012
1.8 MZR 1798 CCM 120 HP 08/2007 - 07/2013
2.0 MZR (GHEFS) 1999 CCM 147 HP 08/2007 - 07/2013
2.5 MZR (GH5FS) 2488 CCM 170 HP 08/2007 - 03/2013
6 Estate (GH)
Description Cylinder Capacity Horse Power Year
2.0 MZR (GHEFW) 1999 CCM 155 HP 01/2010 - 07/2013
1.8 MZR 1798 CCM 120 HP 02/2008 - 07/2013
2.0 MZR (GHEFW, GH10F) 1999 CCM 147 HP 12/2007 - 07/2013
2.5 MZR (GH5FW) 2488 CCM 170 HP 02/2008 - 07/2013
CX-7 (ER)
Description Cylinder Capacity Horse Power Year
2.5 MZR (ER10L) 2488 CCM 163 HP 07/2009 - 03/2013
2.3 MZR DISI Turbo AWD (ER3P) 2261 CCM 258 HP 10/2007 - 08/2009
2.3 MZR DISI Turbo AWD (ER3P) 2261 CCM 260 HP 06/2009 - 03/2013

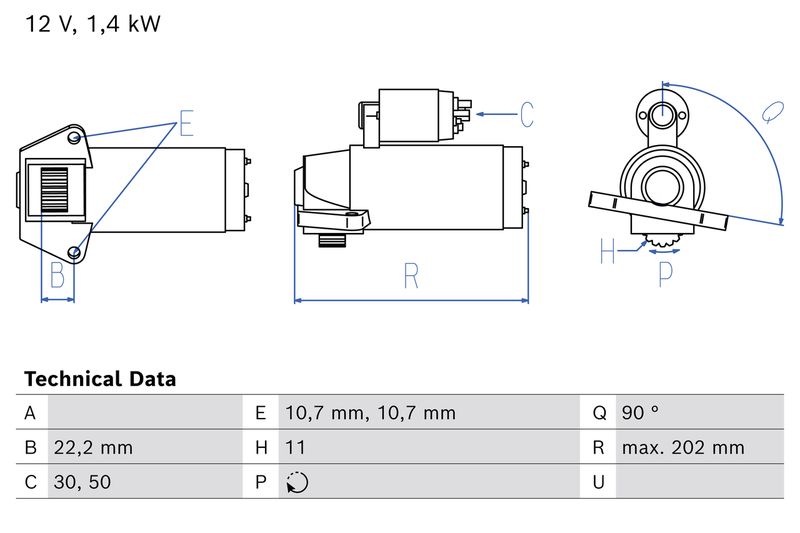

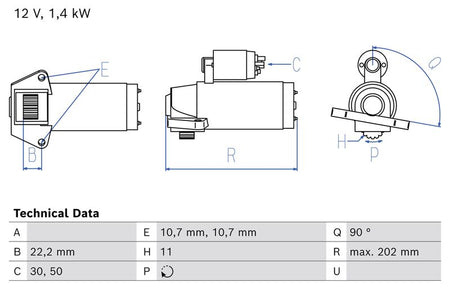

The Bosch 0986029250 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.4 kW rated power, 11 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.4
Number of mounting bores : 2
Number of Teeth : 11
Clamp : 30,50
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 22.2
Starter Type : Self-supporting
Bore Diameter [mm] : 10.7
Bore Diameter 2 [mm] : 10.7
Length [mm] : 201
Jaw opening angle measurement [Degree] : 90
Engine Code : LF5W
Construction Year to : 06.2012
Vehicle Identification Number (VIN) to : JMZBL1***546771
Vehicle Identification Number (VIN) to : JM7BL****349957
  • Vendor BOSCH
  • SKU 0986029250
  • Barcode 4047026526202
  • MAZDA : LF8J-18-400B L538-18-400B
  • BOSCH : 1 986 S00 604
  • Carwood Group : BREF0320986029250
  • Carwood Group : BREF032116930
  • Carwood Group : BREF0321986S00604
  • LUCAS : LRS02682
  • BOSCH : 2925
