BOSCH

Bosch 0986029260 Starter Motor

SKU: 0986029260

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£254.14 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MAZDA

2 Hatchback (DL, DJ)

Description	Cylinder Capacity	Horse Power	Year
1.5 SKYACTIV-G (DJLFS)	1496 CCM	115 HP	From 08/2014
1.5	1496 CCM	75 HP	From 08/2014
1.5 SKYACTIV-G	1496 CCM	90 HP	From 08/2014
1.5 (DJ2HA)	1496 CCM	107 HP	From 11/2014

3 (BM, BN)

Description	Cylinder Capacity	Horse Power	Year
1.5	1496 CCM	100 HP	09/2013 - 05/2019
2.0	1998 CCM	120 HP	09/2013 - 05/2019
2.0	1998 CCM	165 HP	07/2013 - 05/2019
1.5	1496 CCM	120 HP	10/2013 - 05/2019

3 Saloon (BM_, BN_)

Description	Cylinder Capacity	Horse Power	Year
2.0	1998 CCM	120 HP	09/2013 - 05/2019
1.5	1496 CCM	100 HP	10/2014 - 05/2019
1.5	1496 CCM	120 HP	10/2013 - 05/2019

6 Estate (GJ, GL)

Description	Cylinder Capacity	Horse Power	Year
2.0 (GJEFW)	1998 CCM	146 HP	From 01/2013
2.0 (GJEFW)	1998 CCM	165 HP	From 01/2013
2.5	2488 CCM	192 HP	From 12/2012
2.5	2488 CCM	194 HP	From 03/2018

6 Saloon (GJ, GL)

Description	Cylinder Capacity	Horse Power	Year
2.0 (GJ2, GL2, GL6)	1998 CCM	146 HP	From 01/2013
2.0 (GJEFP)	1998 CCM	165 HP	From 01/2013
2.5 (GJ5FP, GL1032, GL1033)	2488 CCM	192 HP	From 01/2013
2.0	1998 CCM	150 HP	12/2012 - 02/2018
2.5	2488 CCM	194 HP	From 03/2018
2.5 (GJ5FP, GL1032, GL1033)	2488 CCM	190 HP	From 03/2018

CX-3 (DK)

Description	Cylinder Capacity	Horse Power	Year
2.0 SKYACTIV-G (DK5W, DK6W)	1998 CCM	120 HP	From 05/2015
2.0 SKYACTIV-G AWD (DK4W7, DKEAW)	1998 CCM	150 HP	From 05/2015
2.0 SKYACTIV-G	1998 CCM	121 HP	From 02/2018
2.0 SKYACTIV-G (DK2W7, DKEFW)	1998 CCM	150 HP	From 05/2018

CX-5 (KE, GH)

Description	Cylinder Capacity	Horse Power	Year
2.0 (KEEFW)	1998 CCM	165 HP	11/2011 - 02/2017
2.0 AWD (KEEAW)	1998 CCM	160 HP	11/2011 - 02/2017
2.5 AWD	2488 CCM	192 HP	02/2015 - 02/2017

CX-5 (KF)

Description	Cylinder Capacity	Horse Power	Year
2.0	1998 CCM	165 HP	From 05/2017
2.0 AWD	1998 CCM	160 HP	From 05/2017
2.5 AWD	2488 CCM	194 HP	From 05/2017
2.0 AWD	1998 CCM	165 HP	From 06/2018
2.0	1998 CCM	150 HP	From 03/2018
2.0 AWD	1998 CCM	150 HP	From 03/2018
2.5	2488 CCM	194 HP	03/2019 - 11/2022
2.0 SKYACTIV-G	1998 CCM	163 HP	From 03/2018
2.0 SKYACTIV-G AWD	1998 CCM	163 HP	From 03/2018

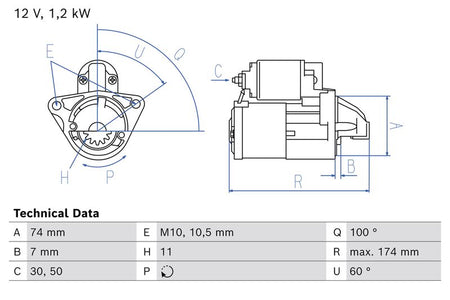

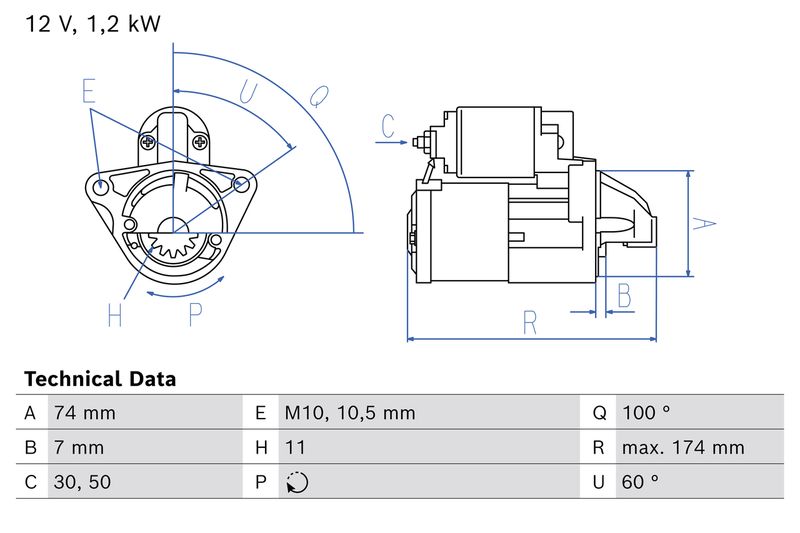

The Bosch 0986029260 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.2 kW rated power, 11 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter

Voltage [V] : 12

Rated Power [kW] : 1.2

Number of mounting bores : 1

Number of threaded holes : 1

Number of Teeth : 11

Clamp : 50

Clamp : 30

Flange Diameter [mm] : 74

Rotation Direction : Clockwise rotation

Pinion Rest Position [mm] : 7

Starter Type : Self-supporting

Thread Size : M10X1,5

Bore Diameter 2 [mm] : 10.5

Length [mm] : 174

Position/Degree : rechts

Mounting Angle [degrees] : 60

Jaw opening angle measurement [Degree] : 100

Mounting bore angle measurement [degree] : 60

Engine Code : P5Y5

Engine Code : P5Y8

Engine Code : P5X2

Construction Year from : 10.2014

Construction Year to : 12.2019

Vehicle Equipment : for vehicles with start-stop function

Engine Code : P5X0

Engine Code : P5Z7

Engine Code : P5Z8

Engine Code : P5Z9

Construction Year from : 03.2018

Construction Year to : 01.2023

Engine Code : P5Y6

Engine Code : P5Z2

Engine Code : P5Z3

Construction Year from : 01.2015

Construction Year to : 03.2018

Bosch 0986029260 Starter Motor
