Bosch 0986031340 Alternator
Your selected vehicle
Regular price
£187.53
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986031340 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 28 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 156 mm length. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

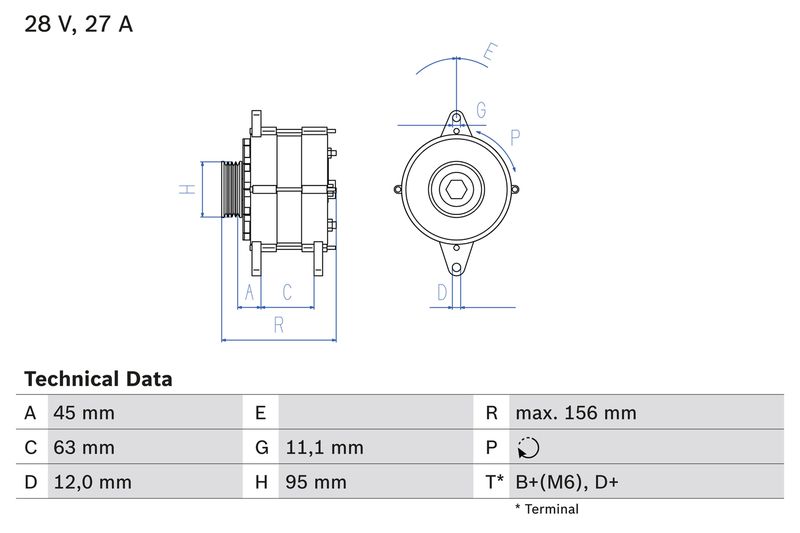

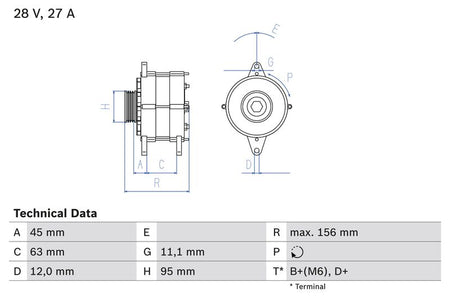

Function :
Alternator
Voltage [V] :
28
Alternator Charging Current [A] :
27
Fastening Type :
Double Pivot Lever
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
45
Rotation Direction :
Clockwise rotation
Pulleys :
with belt pulley
Number of grooves :
1
Belt Pulley Ø [mm] :
95
Clamp :
B+(M6),D+
Length [mm] :
156
Recommended additional repairs :
V-Belt/V-ribbed Belt
- Vendor BOSCH
- SKU 0986031340
- FIAT : 4715786 4717871 4721890 4722724 4738563 4738569 4738570 4738571 4738772 4738775 4786913 4808519 4808526 4808528 77050550 88206020
- IVECO : 42498163 42498164 42498165 42498213 4474592 4738563 4808268 4808519 98417208 98417209
- LANCIA : 4715786 4717871 4721890 4722724 4738563 4738569 4738570 4738571 4738772 4738775 4786913 4808519 4808526 4808528 77050550 88206020
- MAGIRUS-DEUTZ : 098417208 98417208
- BORG & BECK : BBA32950
- BOSCH : 1 986 A01 540
- Carwood Group : BREF0320986031340
- Carwood Group : BREF032112097
- Carwood Group : BREF0321986A01540
- HELLA : 8EL 012 584-031
- LUCAS : LRA00839
- MAHLE : MG 369
- WAI : 12026N
- WAI : 12134N
- BOSCH : 3134
