Bosch 0986039490 Alternator
Your selected vehicle
Regular price
£246.57
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

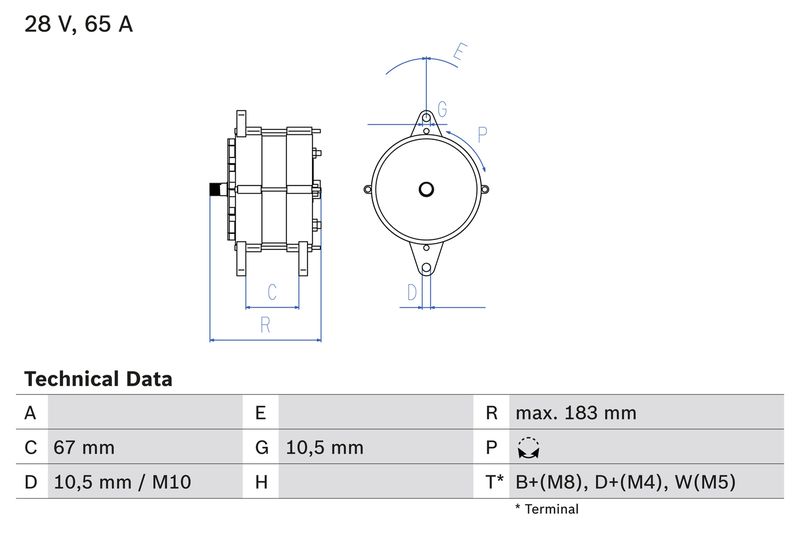

The Bosch 0986039490 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 28 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 197 mm length. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Alternator
Voltage [V] :
28
Alternator Charging Current [A] :
65
Fastening Type :
Double Pivot Lever
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
49.2
Rotation Direction :
Anticlockwise rotation
Rotation Direction :
Clockwise rotation
Pulleys :
without belt pulley
Number of grooves :
8
Belt Pulley Ø [mm] :
72
Clamp :
B+(M8),D+(M4),W(M5)
Length [mm] :
197
Recommended additional repairs :
V-Belt/V-ribbed Belt
- Vendor BOSCH
- SKU 0986039490
- BORG & BECK : BBA32087
- BOSCH : 1 986 A00 157
- BOSCH : 1 986 A01 360
- Carwood Group : BREF0320986039490
- Carwood Group : BREF032111886
- Carwood Group : BREF0321986A01360
- FEBI BILSTEIN : 48934
- HELLA : 8EL 012 584-111
- LUCAS : LRA02475
- MAHLE : MG 494
- VALEO : 202098
- VALEO : 437588
- VALEO : 443225
- WAI : 12706N
- BOSCH : 3949
