Bosch 0986040330 Alternator - 1
Bosch 0986040330 Alternator - 1
BOSCH

Bosch 0986040330 Alternator

SKU: 0986040330
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£231.85 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VW
CALIFORNIA T4 Camper (7DJ, 7DK, 70J)
Description Cylinder Capacity Horse Power Year
2.5 2461 CCM 110 HP 05/1998 - 04/2002
LT Mk II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM)
Description Cylinder Capacity Horse Power Year
2.5 SDI 2461 CCM 75 HP 09/1996 - 07/2006
2.8 TDI 2799 CCM 125 HP 07/1997 - 01/2002
2.5 TDI 2461 CCM 102 HP 06/1996 - 08/1999
LT Mk II Bus (2DB, 2DE, 2DK)
Description Cylinder Capacity Horse Power Year
2.5 SDI 2461 CCM 75 HP 07/1996 - 07/2006
2.5 TDI 2461 CCM 102 HP 05/1996 - 08/1999
2.8 TDI 2798 CCM 125 HP 07/1997 - 05/2003
LT Mk II Van (2DA, 2DD, 2DH)
Description Cylinder Capacity Horse Power Year
2.5 SDI 2461 CCM 75 HP 09/1996 - 07/2006
2.5 TDI 2461 CCM 102 HP 05/1996 - 08/1999
2.8 TDI 2799 CCM 125 HP 07/1997 - 01/2002
TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL,
Description Cylinder Capacity Horse Power Year
2.4 D 2370 CCM 78 HP 09/1990 - 04/1998
2.5 2461 CCM 110 HP 11/1990 - 04/2003
2.5 Syncro 2461 CCM 110 HP 11/1992 - 11/2001
2.4 D Syncro 2370 CCM 78 HP 10/1992 - 09/1998
2.5 TDI 2461 CCM 102 HP 09/1995 - 04/2003
2.4 D 2370 CCM 75 HP 08/1997 - 04/2003
2.5 TDI 2461 CCM 88 HP 05/1998 - 04/2003
2.5 TDI Syncro 2461 CCM 102 HP 05/1998 - 04/2003
TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J)
Description Cylinder Capacity Horse Power Year
2.5 2461 CCM 110 HP 11/1990 - 04/2003
2.4 D 2370 CCM 78 HP 07/1990 - 04/1998
2.5 Syncro 2461 CCM 110 HP 11/1992 - 11/2001
2.4 D Syncro 2370 CCM 78 HP 10/1992 - 09/1998
2.5 TDI 2461 CCM 102 HP 09/1995 - 04/2003
2.4 D 2370 CCM 75 HP 08/1997 - 04/2003
2.5 TDI Syncro 2461 CCM 102 HP 09/1995 - 04/2003
TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J,
Description Cylinder Capacity Horse Power Year
2.4 D Syncro 2370 CCM 78 HP 10/1992 - 09/1998
2.5 Syncro 2461 CCM 110 HP 08/1992 - 04/2003
2.5 2461 CCM 110 HP 09/1990 - 06/2003
2.4 D 2370 CCM 78 HP 09/1990 - 04/1998
2.5 TDI 2461 CCM 102 HP 09/1995 - 04/2003
2.5 TDI Syncro 2461 CCM 102 HP 01/1996 - 04/2003
2.5 TDI 2461 CCM 88 HP 05/1998 - 04/2003

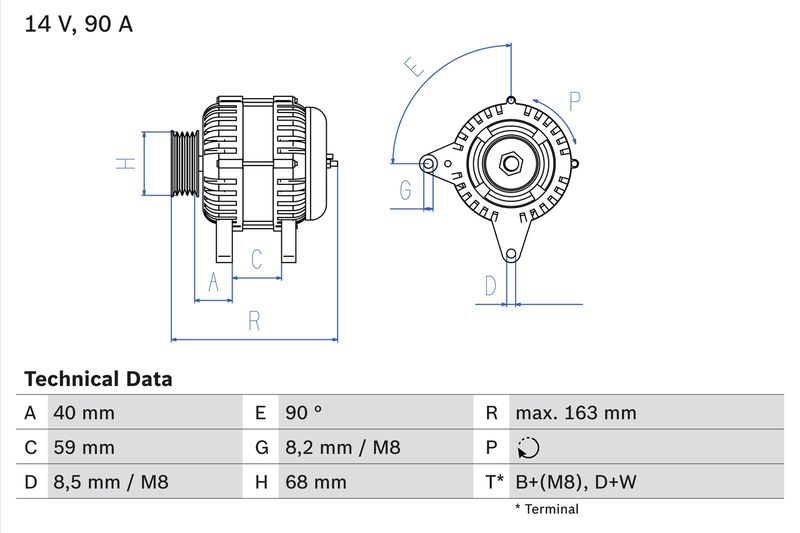

The Bosch 0986040330 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 163 mm length. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 90
Fastening Type : Double Pivot Lever
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 39.6
Rotation Direction : Clockwise rotation
Pulleys : with multi-belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 68
Length [mm] : 163
Recommended additional repairs : V-Belt/V-ribbed Belt
  • Vendor BOSCH
  • SKU 0986040330
  • Barcode 3165141163841
  • VW : 028 903 027 N
  • APEC : AAL1480
  • APEC : AAL1999
  • BORG & BECK : BBA2020
  • BORG & BECK : BBA2663
  • BOSCH : 1 986 A01 848
  • Carwood Group : BREF0320986040330
  • Carwood Group : BREF032111899
  • Carwood Group : BREF0321986A01848
  • HELLA : 8EL 012 427-941
  • LUCAS : LRB00295
  • NAPA : NAL1480
  • NAPA : NAL1999
  • VALEO : 437614
  • VALEO : 443174
  • WAI : 13626N
  • WAI : 13902N
  • WAI : 13903N
  • WAI : A132.235
  • BOSCH : 4033
